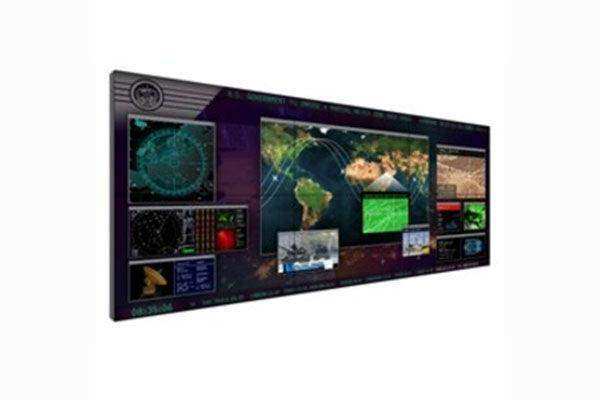

Planar MX55HDX-V-100 55" Matrix G2 800 nit LCD Video Wall VESA - 997-8324-00

Product Overview

The Planar Clarity Matrix G2 MX55HDX-V-100 is a 55" VESA-mount LCD video wall panel offered at volume bundle pricing for large-scale deployments requiring flexible third-party mounting compatibility. Delivering 800 nit brightness and a 1.7mm–3.7mm tiled bezel width, it provides the complete Clarity Matrix G2 performance specification while accepting standard VESA mounting hardware, enabling integrators to use custom or preferred mounting structures. Rated for 24/7 mission-critical operation, the MX55HDX-V-100 suits enterprise, government, and command-center deployments where both performance and mounting flexibility are non-negotiable requirements.

Product Description

The Planar MX55HDX-V-100 (SKU: 997-8324-00) is the volume-pricing VESA-mount configuration of the Clarity Matrix G2 LCD video wall panel, sharing the same core performance specification as the MX55HDX-V while reflecting bundle pricing for large-scale deployments. VESA mounting compatibility opens the MX55HDX-V-100 to the widest possible range of architectural and structural mount solutions — from standard commercial wall mounts to engineered steel fabrications for curved or angled wall surfaces. At 800 nit brightness, these panels exceed the ambient light tolerance of 500-nit and 700-nit competing solutions, maintaining full image integrity in glass lobbies, bright retail environments, and high-ceiling operations centers with extensive overhead lighting. The off-board electronics design achieves an installed depth of just 3.6", enabling deployment in shallow-cavity recesses where standard 4"+ depth displays would not fit. LED backlighting ensures consistent brightness uniformity across the 1920x1080 Full HD active area, critical for seamless imagery across tiled arrays. Built-in video extension to 500 feet eliminates reliance on third-party extenders, reducing infrastructure cost and single-point failure risk in large VESA-mount arrays. Planar WallNet with SNMP delivers remote monitoring and alerting across the full panel array, supporting proactive maintenance in mission-critical environments.

Key Features

• VESA-compatible mounting for custom and third-party structural solutions
• Volume pricing for large-scale deployments — lower per-panel cost at scale
• 800 nit brightness — industry-leading for 55" LCD video wall panels
• Tiled bezel width 1.7mm–3.7mm for near-seamless multi-panel arrays
• 1920x1080 Full HD resolution, 1080p content rendering
• Off-board electronics: 3.6" installed depth for shallow-cavity mounts
• 1 PSU drives up to 8 panels — reduces AC outlet and rack requirements
• Built-in video extension to 500 ft (150 m)
• Planar WallNet monitoring with SNMP for remote health management
• LED backlight for uniform brightness across large arrays
• 24/7 mission-critical operation rating

Typical Applications

• Large-scale enterprise video wall deployments with custom mounting infrastructure
• Government and defense command centers requiring VESA flexibility
• Corporate campus multi-site video wall standardization programs
• Broadcast studios with custom fabricated panel mounting
• Control and operations centers in energy, utilities, and transportation
• Higher-education visualization labs with non-standard mounting conditions
• Retail and hospitality brand experience walls at volume

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the MX55HDX-V and MX55HDX-V-100?

The panel hardware and performance specification are identical. The MX55HDX-V-100 reflects volume bundle pricing for large deployments. Contact Creation Networks to confirm the appropriate SKU based on your project quantity and procurement structure.

Can the VESA mount support both landscape and portrait orientations?

Yes. VESA-mount models are orientation-agnostic — the mounting structure determines orientation. Unlike the dedicated L (landscape) and P (portrait) EasyAxis variants, the V-100 can be oriented in either direction based on the design of your custom mounting system.

What power infrastructure is required for a 20-panel VESA array?

A 20-panel array requires three power supply modules (one per eight panels, with a partial fourth if needed). This represents a dramatic reduction compared to competing systems requiring one PSU per panel, cutting AC outlet count from 20 to 3 and reducing rack space proportionally.

Is built-in video extension supported on the V-100?

Yes. All Clarity Matrix G2 panels, including the MX55HDX-V-100, include built-in video extension supporting cable runs up to 500 feet (150 meters) without third-party extenders.

How is this panel serviced in a large VESA-mount installation?

The off-board electronics design allows electronics modules to be swapped independently of the panel. In a VESA-mount installation, a technician can service the signal processing module from the rear of the wall without removing the display panel from its mount — minimizing downtime in large enterprise and government deployments.
