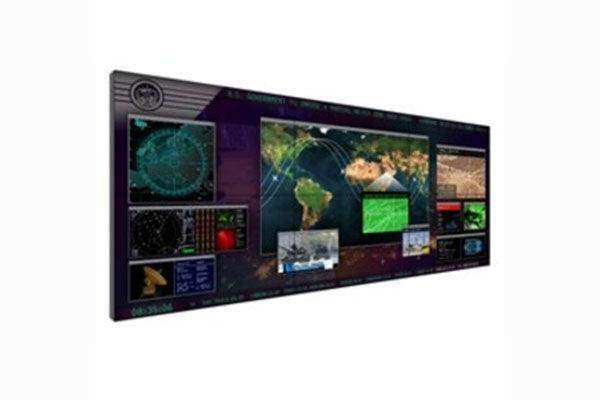

Planar MX55HDX-P-ERO 55" Matrix G2 800 nit LCD Video Wall Portrait - 997-8940-01

Product Overview

The Planar MX55HDX-P-ERO is a 55-inch Clarity Matrix G2 LCD video wall panel engineered for portrait-orientation deployments requiring exceptional brightness and optical protection. Delivering 800 nit peak luminance, this commercial-grade display is rated for continuous 24/7 operation in mission-critical environments. The portrait configuration maximizes vertical content impact in applications such as digital signage columns, retail towers, and lobby installations. Planar ERO (Extended Ruggedness and Optics) optically-bonded glass provides superior durability and eliminates internal reflections for enhanced readability.

Product Description

The Planar MX55HDX-P-ERO (SKU: 997-8940-01) is the portrait-mounted configuration of the Clarity Matrix G2 MX55HDX-ERO fine bezel LCD video wall panel, purpose-built for integrators who need a vertically oriented tile in a seamless multi-screen array. At 800 nits, this 55 inch video wall display 800 nit panel outperforms standard commercial displays in high ambient light environments. Planar ERO LCD video wall ERO glass is optically bonded directly to the LCD surface, eliminating the air gap, reducing reflections, and increasing contrast. The off-board electronics architecture keeps heat, depth, and weight minimal, enabling the industry-leading 3.6-inch installed depth. Planar EasyAxis Mounting System ensures precise portrait panel-to-panel alignment with tool-free adjustment. The MX55HDX-P-ERO integrates with Planar WallNet for remote health monitoring via SNMP, and supports built-in video extension up to 500 feet without third-party extenders.

Key Features

• 55-inch Clarity Matrix G2 LCD video wall panel in portrait orientation
• 800 nit brightness for high ambient light visibility, commercial 24/7 rated
• Planar ERO optically-bonded glass for ruggedness and reflection elimination
• Fine bezel LCD video wall panel: 1.7mm tiled bezel width
• Full HD 1920x1080 resolution with 1080p scan format
• Off-board electronics design, reduces depth to 3.6 inches installed
• Planar EasyAxis Mounting System for precise portrait alignment
• Planar WallNet health monitoring with SNMP support
• Built-in video extension up to 500 feet (150 meters)
• LED backlight technology with 10-bit color processing
• Single power supply drives up to 8 displays
• Redundant power supply modules for uninterrupted 24/7 operation

Typical Applications

• Portrait digital signage columns in retail, hospitality, and airports
• Lobby and reception video wall towers
• Command and control centers with vertical data visualization
• Corporate communications displays in portrait array configurations
• Healthcare facility wayfinding and information walls
• Entertainment venues and sports arena portrait video columns

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What makes the portrait orientation of the MX55HDX-P-ERO different from the landscape version?

The MX55HDX-P-ERO ships with mounting hardware and bezel configuration optimized for vertical portrait installations, ensuring correct alignment offsets and cable routing. It is not simply a rotated landscape display.

What is Planar ERO glass and why does it matter?

ERO (Extended Ruggedness and Optics) is Planar's optically-bonded front glass that eliminates the air gap between the LCD panel and protective glass, reducing reflections, improving contrast, and providing impact protection for public-facing installations.

Can the MX55HDX-P-ERO operate continuously without duty-cycle restrictions?

Yes. The MX55HDX-P-ERO is rated for 24/7 continuous operation, making it suitable for control rooms, surveillance centers, and any mission-critical application that cannot tolerate downtime.

How does the off-board electronics design benefit an installation?

By relocating the electronics chassis away from the display, Planar reduces depth, weight, and heat output. This simplifies cabling, reduces thermal stress, and allows electronics servicing without disturbing panel alignment.

What monitoring capabilities does this display support?

The MX55HDX-P-ERO integrates with Planar WallNet software, providing remote health and status monitoring with SNMP support for proactive fault detection across the array.

Is the MX55HDX-P-ERO compatible with touch interactivity?

Yes. The ERO glass surface supports the Clarity Matrix MultiTouch kit, enabling up to 32 simultaneous touch points for interactive portrait installations.
