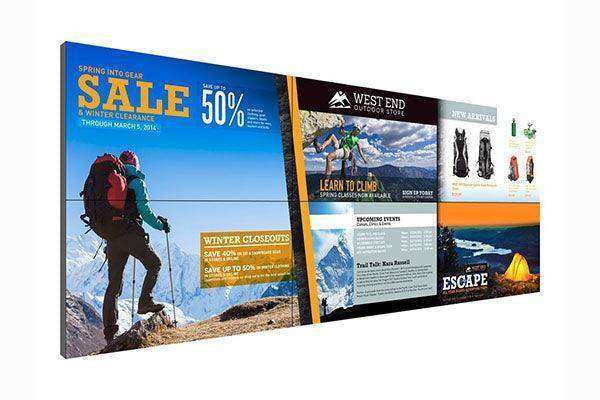

Planar MX55HDU-v 55"Clarity Matrix G2 800 nit LCD Video wall VESA - 997-9188-00
Planar MX55HDU-v 55"Clarity Matrix G2 800 nit LCD Video wall VESA - 997-9188-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar MX55HDU-v 55"Clarity Matrix G2 800 nit LCD Video wall V...
Product Overview
The Planar MX55HDU-v is a 55-inch Clarity Matrix G2 LCD video wall panel delivering 800-nit high brightness with VESA mount compatibility and TAA compliance for U.S. federal procurement. Featuring 1920x1080 Full HD resolution, a 1.7mm tiled bezel width, LED backlighting, and 24/7 mission-critical design, this panel is engineered for high ambient light environments and government-specified video wall deployments. The G2 platform delivers 4K input capability, 10-bit color processing, and Planar Big Picture Plus Video Wall Processing for sophisticated multi-source display management. Optional ERO protective glass and Fiber Video Extension accommodate both public-space and secure government installation requirements.
Product Description
The Planar MX55HDU-v 55-inch Clarity Matrix G2 VESA-compatible video wall panel combines the high-brightness performance of 800 nits with TAA compliance, making it one of the most versatile panels in the Clarity Matrix G2 lineup for government and commercial AV projects. The VESA mount configuration (MX55HDU-v) provides additional mounting flexibility for integration into custom video wall structures, recessed installations, or environments where standard Planar mounting hardware is not preferred. With a 1.7mm tiled bezel width, the near-seamless panel surface minimizes viewer distraction in monitoring and presentation environments. Planar Big Picture Plus Video Wall Processing supports 4K at 60Hz signal scaling across the full video wall, plus Picture-in-Picture and multi-window configurations with multiple independent sources. The 10-bit color processing engine delivers superior color depth and panel-to-panel uniformity, which is critical in large-scale arrays where color variation between tiles is visible to viewers. WallNet health monitoring software with SNMP integrates into enterprise network management systems for proactive status monitoring. Redundant hot-swap power supplies maintain display operation during power supply servicing, ensuring continuous 24/7 uptime. TAA compliance qualifies the MX55HDU-v for GSA Schedule purchasing and U.S. federal government contracts. SKU 997-9188-00 includes a 3-year limited warranty. Weight is approximately 57.32 lbs.
Key Features
- 55-inch Full HD (1920x1080) Clarity Matrix G2 LCD video wall panel
- 800-nit high brightness for high ambient light environments
- VESA mount configuration (MX55HDU-v)
- 1.7mm tiled bezel width for near-seamless arrays
- TAA compliant for U.S. federal and GSA procurement
- 4K input support with 10-bit color processing
- Planar Big Picture Plus Video Wall Processing (4K at 60Hz)
- EasyAxis Mounting System — 3.6-inch installed depth
- Redundant hot-swap power supply modules
- Planar WallNet health monitoring with SNMP support
- Optional Planar ERO protective bonded glass
- 3-year limited warranty | SKU: 997-9188-00
Typical Applications
- U.S. federal government and military command centers (TAA required)
- State and local government operations centers
- Control rooms with high ambient light conditions
- Corporate briefing centers and executive display walls
- Transportation control centers: airports, rail, and transit
- Custom-mounted video wall structures requiring VESA compatibility
- Educational and university large-format display walls
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size | 55 inches |
| Platform | Clarity Matrix G2 |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 800 nits |
| Tiled Bezel Width | 1.7mm |
| Backlight | LED |
| Scan Format | 1080p |
| Mount Type | VESA compatible |
| Color Processing | 10-bit |
| HDMI Inputs | 4 |
| Installed Depth | 3.6 inches (91mm) |
| Weight | 57.32 lbs (approximate) |
| Power Supply | Redundant hot-swap |
| TAA Compliant | Yes |
| ERO Option | Available |
| Warranty | 3-year limited |
| Part Number | 997-9188-00 |
Competitor Comparison
| Feature | Planar MX55HDU-v | Samsung IFH-D 55" | LG LSCB 55" | NEC UN552 55" |
|---|---|---|---|---|
| Brightness | 800 nit | 500 nit | 500 nit | 500 nit |
| TAA Compliant | Yes | No | No | No |
| Tiled Bezel Width | 1.7mm | 1.8mm | 1.8mm | 1.8mm |
| VESA Mount | Yes | Yes | Yes | Yes |
| Hot-swap Power Supply | Yes | No | No | No |
| 10-bit Color Processing | Yes | No | No | No |
Frequently Asked Questions
- Is the MX55HDU-v TAA compliant?
- Yes. The MX55HDU-v is TAA (Trade Agreements Act) compliant, qualifying it for U.S. federal government purchasing through GSA Schedule contracts and other government procurement vehicles.
- What does the VESA mount configuration mean?
- The MX55HDU-v is configured with VESA-standard mounting points, providing flexibility for installation in custom video wall structures, third-party mounts, or recessed installations that may not use Planar's proprietary EasyAxis system.
- How does this panel differ from the MX55HDU-P?
- The MX55HDU-P is portrait-only orientation. The MX55HDU-v uses a VESA mount configuration and is TAA compliant, making it suitable for federal procurement where the portrait-only model may not qualify or fit the installation orientation requirement.
- What is the brightness advantage of 800 nits?
- 800-nit panels are engineered for environments with elevated ambient light. At 800 nits, the panel maintains strong contrast and readability under direct artificial lighting or near windows where 500-nit panels become difficult to read.
- What monitoring software is included?
- The MX55HDU-v integrates with Planar WallNet health and status monitoring software, which supports SNMP for integration with enterprise network management platforms.
- What is the shipping weight of the MX55HDU-v?
- The MX55HDU-v weighs approximately 57.32 lbs. Ensure installation teams account for this weight when planning mounting structures and lift equipment.
