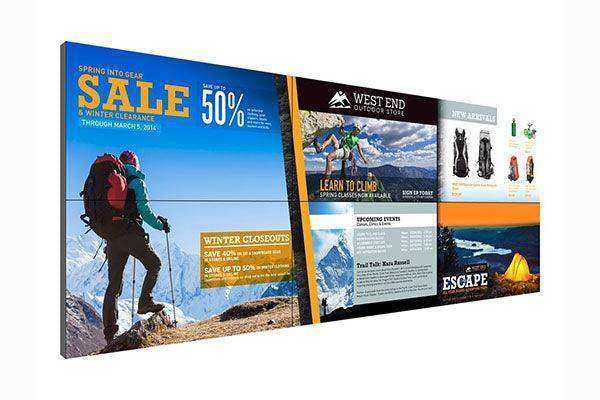

Planar MX55HDU-P-100 55"Matrix G2 800 nit LCD Video wall Portrait - 997-9187-00
Planar MX55HDU-P-100 55"Matrix G2 800 nit LCD Video wall Portrait - 997-9187-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar MX55HDU-P-100 55"Matrix G2 800 nit LCD Video wall Portr...
Product Overview
The Planar Clarity Matrix G2 MX55HDU-P-100 is a 55" 800 nit portrait-configured LCD video wall panel with an integrated power supply module, delivering best-in-class visual performance and simplified rack infrastructure. Rated for 24/7 operation, this panel offers a 1.7mm minimum tiled bezel width and 10-bit color processing for superior color depth and uniformity. The ERO (Extended Ruggedness and Optics) option provides optically bonded glass protection for interactive and public-facing installations. Fiber video extension and redundant power options make it a top choice for government, military, and enterprise command environments.
Product Description
The Planar Clarity Matrix G2 LCD video wall MX55HDU-P-100 sets the benchmark for portrait video wall deployments requiring both image fidelity and operational resilience. The -100 power supply module is integrated, allowing a single PSU to drive up to eight displays and dramatically reducing rack space and AC outlet requirements. 4K input capability and 10-bit color processing ensure content is rendered with precision whether sourced from a single PC or a multi-channel video wall processor.
Planar Big Picture Plus video wall processing enables seamless source scaling across the full wall surface. WallNet health monitoring with SNMP support provides proactive alerting and status visibility across every panel in the array. Built-in video extension up to 500 feet over Cat6A STP eliminates third-party extenders and simplifies signal distribution. The EasyAxis Mounting System delivers 3.6-inch installed depth and 6-axis alignment for tight, professional installations. Optional ERO-LCD glass bonding adds ruggedness and optical clarity for public-space or touch deployments. Touchscreen capability is supported via compatible overlays.
Key Features
- 55" portrait commercial-grade LCD, 24/7 rated
- 800 nit brightness for high-ambient-light environments
- Integrated -100 power supply: one PSU drives up to 8 displays
- 4K input capability with 10-bit color processing
- 1.7mm minimum tiled bezel width
- Planar ERO-LCD optically bonded glass option for ruggedness and touch
- Built-in video extension up to 500 ft over Cat6A STP
- Planar WallNet health monitoring with SNMP support
- Planar Big Picture Plus multi-source video wall processing
- EasyAxis Mounting System: 3.6" installed depth, 6-axis alignment
- Redundant power supply option for continuous operation
- Fiber video extension option for secure, long-distance signal runs
Typical Applications
- Portrait retail signage walls in malls and flagship stores
- Government and military command operations centers
- Emergency management and dispatch centers
- Corporate briefing rooms and executive video walls
- Hospital and healthcare information display systems
- Transportation and logistics operations centers
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MX55HDU-P-100 (997-9187-00) |
| Screen Size | 55" |
| Orientation | Portrait |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 800 nit (cd/m²) |
| Color Processing | 10-bit |
| Tiled Bezel Width | 1.7mm minimum |
| Backlight | LED |
| Installed Depth | 3.6" (91mm) |
| Video Extension | Up to 500 ft over Cat6A STP |
| Power Supply | Integrated -100 module (1 PSU per 8 displays) |
| HDMI Inputs | 4x HDMI |
| DisplayPort | 1x DisplayPort |
| Operation | 24/7 rated |
| Monitoring | Planar WallNet with SNMP |
| Touch | Optional via ERO overlay |
| Certification | EU RoHS |
| Part Number | 997-9187-00 |
Competitor Comparison
| Feature | Planar MX55HDU-P-100 | Samsung IA Series | LG LSCB Series | NEC UN Series |
|---|---|---|---|---|
| Brightness | 800 nit | 500 nit | 500 nit | 500 nit |
| Integrated PSU | Yes (-100 module) | No | No | No |
| Built-in Video Extension | 500 ft | None native | None native | None native |
| ERO Glass Option | Yes | No | No | No |
| 10-bit Color | Yes | 8-bit | 8-bit | 8-bit |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What does the -100 designation mean?
- The -100 suffix indicates the panel includes Planar's integrated power supply module. One module can power up to eight displays, reducing rack space and AC outlet requirements compared to individual PSUs.
- Does this panel support 4K content?
- Yes. The MX55HDU-P-100 accepts 4K input signals and processes them with 10-bit color depth, though the native panel resolution is Full HD 1920x1080.
- What is ERO and when should I specify it?
- ERO (Extended Ruggedness and Optics) is Planar's optically bonded glass front option. It enhances ruggedness for public-facing environments and improves optical performance for touch-enabled deployments.
- Can the video signal travel 500 feet without a third-party extender?
- Yes. Built-in video extension supports runs up to 500 feet over Cat6A STP, eliminating the cost and reliability concerns of third-party extenders.
- Is this panel TAA compliant?
- TAA compliance varies by specific SKU configuration. Contact Creation Networks for TAA-compliant variant options for government procurement.
