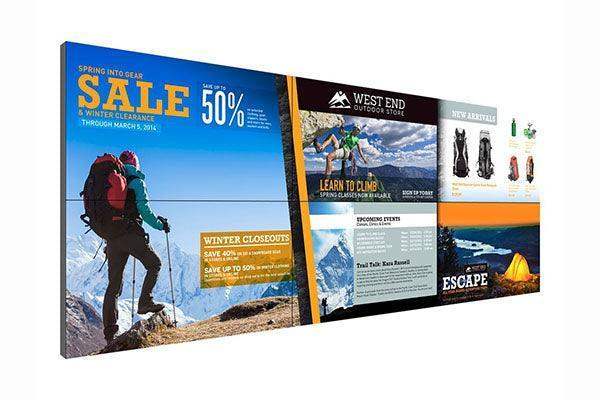

Planar MX55HDU-L-100 55"Matrix G2 800 nit LCD Video wall Landscape - 997-9185-00
Planar MX55HDU-L-100 55"Matrix G2 800 nit LCD Video wall Landscape - 997-9185-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar MX55HDU-L-100 55"Matrix G2 800 nit LCD Video wall Lands...
Product Overview
The Planar Clarity Matrix G2 MX55HDU-L-100 is a 55" 800 nit landscape-configured LCD video wall panel with an integrated -100 power supply module, purpose-built for horizontal widescreen video wall arrays. Rated for 24/7 continuous operation with a 1.7mm minimum tiled bezel width, it delivers the industry-leading image performance of the G2 MX platform in standard landscape orientation. The integrated PSU simplifies rack infrastructure, and built-in video extension to 500 feet eliminates third-party signal extenders. EasyAxis mounting achieves a 3.6-inch installed depth with six-axis alignment for professional, tight-tolerance installations.
Product Description
The Planar Clarity Matrix G2 LCD video wall MX55HDU-L-100 is the landscape-orientation flagship of the G2 MX 55" family, designed for control rooms, broadcast facilities, and corporate environments where the standard widescreen horizontal layout is required. At 800 nits, it delivers nearly double the brightness of competitive landscape panels, maintaining image quality in environments with higher ambient light levels or architectural windows.
The -100 power supply module enables one PSU to drive up to eight landscape panels, reducing rack footprint and AC outlet requirements significantly. 4K input capability with 10-bit color processing ensures content fidelity for sources ranging from media servers to live video feeds. Planar Big Picture Plus video wall processing scales multiple sources across the full landscape array. WallNet health monitoring with SNMP provides continuous status visibility and proactive alerts. Optional ERO-LCD glass bonding protects panels in high-traffic or touch-enabled landscape installations. The built-in fiber video extension option supports secure signal distribution for government and military customers.
Key Features
- 55" landscape commercial-grade LCD, 24/7 rated
- 800 nit brightness — nearly double typical competitive panels
- Tiled bezel width as low as 1.7mm for near-seamless landscape arrays
- Integrated -100 power supply: one PSU drives up to 8 displays
- 4K input capability with 10-bit color processing
- Built-in video extension up to 500 ft over Cat6A STP
- EasyAxis Mounting System: 3.6" depth, 6-axis panel alignment
- Planar WallNet health monitoring with SNMP
- Optional ERO-LCD optically bonded glass for ruggedness/touch
- Planar Big Picture Plus multi-source video wall processing
- Redundant power supply option for continuous 24/7 uptime
Typical Applications
- Control room and network operations center (NOC) landscape video walls
- Broadcast studio and media production monitoring walls
- Corporate lobby and briefing center landscape display arrays
- Transportation and logistics operations centers
- Military and defense command center landscape configurations
- University and conference room large-format landscape walls
Technical Specifications
| Specification | Detail |
|---|---|
| Model | MX55HDU-L-100 (997-9185-00) |
| Screen Size | 55" |
| Orientation | Landscape |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 800 nit (cd/m²) |
| Color Processing | 10-bit |
| Tiled Bezel Width | 1.7mm minimum |
| Backlight | LED |
| Installed Depth | 3.6" (91mm) |
| Dimensions (H x W x D) | 27" x 47.8" x 3.6" |
| Weight | 59.08 lb |
| Video Extension | Up to 500 ft over Cat6A STP |
| Power Supply | Integrated -100 module (1 PSU per 8 displays) |
| HDMI Inputs | 4x HDMI |
| Operation | 24/7 rated |
| Monitoring | Planar WallNet with SNMP |
| Certification | EU RoHS |
| Part Number | 997-9185-00 |
Competitor Comparison
| Feature | Planar MX55HDU-L-100 | Samsung IA Series | LG LSCB Series | NEC UN Series |
|---|---|---|---|---|
| Brightness | 800 nit | 500 nit | 500 nit | 500 nit |
| Landscape SKU | Dedicated landscape variant | Field configured | Field configured | Field configured |
| Integrated PSU | Yes (-100 module) | No | No | No |
| Built-in Video Extension | 500 ft | None native | None native | None native |
| 10-bit Color | Yes | 8-bit | 8-bit | 8-bit |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What is the difference between the MX55HDU-L-100 and the MX55HDU-V-100?
- The MX55HDU-L-100 is factory-configured in landscape orientation and uses the Planar EasyAxis Mounting System. The MX55HDU-V-100 is the VESA-mount variant, compatible with third-party mounting structures and is TAA-compliant.
- Can I mix landscape and portrait panels in the same video wall system?
- Yes. Planar Clarity Matrix G2 panels can be mixed in landscape and portrait orientations within the same video wall system, with WallNet providing unified management across all panels.
- How does the -100 power supply reduce installation costs?
- The -100 integrated PSU allows a single power supply module to drive up to eight displays, reducing the number of rack units and AC outlets required compared to individual per-panel power supplies.
- What is the installed depth of the MX55HDU-L-100?
- With the EasyAxis Mounting System, the installed depth is 3.6 inches (91mm)—the thinnest in the industry for a 55-inch commercial LCD video wall panel.
- Does this panel support remote health monitoring?
- Yes. The MX55HDU-L-100 integrates Planar WallNet software with SNMP support, providing health status monitoring, alerts, and remote management across all panels in the array.
