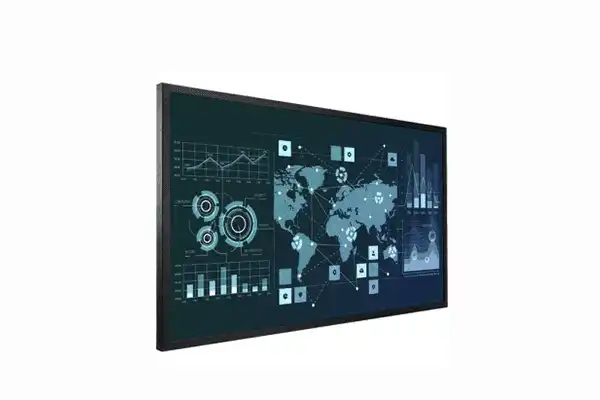

Planar MX46HDX-L 46"Clarity Matrix G2 1920x1080 800 nit LANDSCAPE - 997-9386-00

Product Overview

The Planar MX46HDX-L is a 46-inch Clarity Matrix G2 LCD video wall display configured for landscape installation with the EasyAxis Mounting System. Part number 997-9386-00 delivers 1920x1080 Full HD resolution at 800 nit brightness — 60% brighter than standard 500 nit panels — and is rated for 24/7 continuous operation. Designed for high-ambient-light and mission-critical environments, the MX46HDX-L produces a near-seamless tiled canvas with a 1.7mm minimum tiled bezel width.

Product Description

The MX46HDX-L is the landscape-mount configuration of Planar's 46-inch MX-series video wall display. At 800 nit brightness, this panel is engineered for environments where 500 nit displays wash out: bright control rooms, sunlit lobbies, high-ambient-light command centers, and broadcast environments with studio lighting. The MX designation signals the higher-brightness tier within the Clarity Matrix G2 family, while the -L suffix confirms EasyAxis landscape mounting hardware is included and pre-configured.

Off-board electronics architecture separates the power supply and processing components from the display panel, reducing thermal load, minimizing panel depth, and enabling field replacement of electronic components without dismounting the display. The EasyAxis Mounting System provides six-axis panel-to-panel alignment for perfectly flat, flush video wall surfaces with tiled bezel widths as narrow as 1.7mm. The MX46HDX-L is rated for 24/7 continuous operation, making it suitable for mission-critical applications where downtime is not acceptable.

Key Features

• 46-inch Full HD (1920x1080) LCD panel rated at 800 nit brightness for high-ambient-light environments
• Clarity Matrix G2 architecture with off-board electronics for reduced depth and heat
• Landscape orientation with Planar EasyAxis Mounting System included
• 1.7mm minimum tiled bezel width — industry-leading near-seamless appearance
• 24/7 continuous operation rating for mission-critical deployments
• LED backlight technology for uniform luminance and extended panel life
• Off-board power supply reduces panel-level thermal stress and simplifies field service
• Six-axis EasyAxis alignment cams for precise panel-to-panel flatness and registration
• Compatible with Planar processing and content management ecosystem
• Compact 46-inch format enables tighter grid configurations in space-constrained installations

Typical Applications

• High-ambient-light command and control rooms where 500 nit panels are insufficient
• Broadcast studios with high-output studio lighting environments
• Emergency response and public safety operations centers requiring 24/7 visibility
• Energy and utilities control rooms with stringent uptime requirements
• Corporate executive briefing centers with mixed lighting conditions
• Retail flagship environments with significant ambient daylight
• Transportation control centers with variable lighting throughout the day

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the MX46HDX-L, MX46HDX-V, and 997-8995-00?

All three are 46-inch G2 800 nit LCD panels with the same display performance. The difference is mounting configuration. The MX46HDX-L (997-9386-00) ships with EasyAxis landscape mount hardware, optimized for standard horizontal tiled arrays. The MX46HDX-V (997-8996-00) ships VESA-compatible for integrators requiring third-party mounts, portrait, or custom-angle installations. The base 997-8995-00 unit ships without a mount system for maximum flexibility or integration into non-standard support structures.

Why choose 800 nit over 500 nit?

800 nit panels are the correct choice when ambient light levels are high enough to wash out 500 nit displays. Bright office environments, spaces with windows, broadcast studios with key lighting, and outdoor-adjacent installations all benefit from 800 nit brightness. In controlled, dark environments, 500 nit panels consume less power and may be preferred. For controlled-light environments, consider the Planar LX55X-L or LX55HDU-L-100 at 500 nit.

What does the off-board electronics design mean for maintenance?

Off-board electronics means the power supply and video processing components are mounted separately from the LCD panel itself. This reduces thermal stress on the screen, enables independent field replacement of electronics without touching the display, and allows for access in tight spaces where working directly behind the panel is impractical.

Is the EasyAxis system difficult to install?

The EasyAxis Mounting System is designed for professional AV integrators. It uses a rail-based structure that installs against the wall surface, with individual panel cams providing six-axis adjustability for precise panel-to-panel alignment after all panels are hung. Planar provides detailed installation documentation and supports professional installation training.

Can additional panels be added to an existing MX46HDX-L array later?

Yes. The modular design of the EasyAxis system allows arrays to be expanded. Existing rail sections can typically accommodate additional panels, and Planar's processing and management infrastructure supports dynamic array resizing. Confirm with Creation Networks that the specific existing infrastructure supports expansion before ordering.

What is the warranty on the MX46HDX-L?

Planar Clarity Matrix panels carry a standard 3-year limited warranty. Creation Networks can advise on extended service coverage and on-site support for mission-critical 24/7 deployments.
