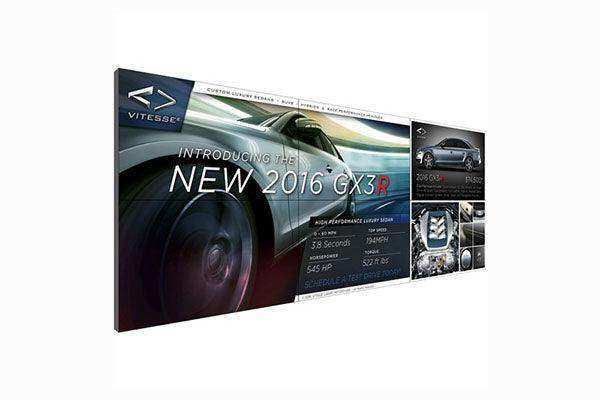

Planar MX46HDX-ERO 46"MATRIX G2 1920x1080 800 nit landscape or portrait - 997-8997-00

Product Overview

The Planar MX46HDX-ERO is a 46-inch Clarity Matrix G2 LCD video wall display combining extreme narrow-bezel performance with Planar ERO (Extended Ruggedness and Optics) optically-bonded glass and an elevated 800-nit brightness rating, making it the highest-brightness panel in this comparative batch. Configurable in both landscape and portrait orientations, the MX46HDX-ERO (SKU 997-8997-00) is engineered for demanding high-ambient-light environments, public spaces, and interactive touch applications where standard 500-nit panels and unprotected glass surfaces are insufficient. The 1.7mm tiled bezel gap and off-board electronics architecture maintain the Clarity Matrix G2 standard for installation efficiency and near-seamless array appearance.

Product Description

The MX46HDX-ERO's 800-nit brightness is 60% higher than the standard 500-nit Clarity Matrix panels in the same family, providing substantially improved readability in retail environments, transportation terminals, and other high-ambient-light installations where windows, overhead lighting, or outdoor light ingress would wash out lower-brightness displays. Planar ERO optically bonds the protective front glass directly to the LCD panel, eliminating the internal air gap that causes reflections and ghost images, while simultaneously hardening the display surface against impact, vibration, and surface contamination. This makes the MX46HDX-ERO suitable for interactive touch overlays, wayfinding kiosks, and public installations where vandal resistance is a requirement. The Direct LED backlight technology (rather than edge LED) provides more uniform illumination across the panel face at the higher brightness level. The 4,000:1 dynamic contrast ratio delivers well-defined dark and bright regions in mixed-content displays. Both landscape and portrait orientations are supported, providing integrators with the flexibility to deploy this single SKU in either orientation based on installation requirements without procuring separate landscape and portrait part numbers. Dimensions of 40.3" x 22.8" x 3.7" and a 70-lb panel weight should be factored into structural and mounting planning. HDMI and serial control are standard connectivity options, supporting integration with professional AV control systems.

Key Features

• 46-inch Full HD 1080p LCD, configurable landscape or portrait
• 800 nits brightness — 60% brighter than standard 500-nit panels
• Planar ERO optically-bonded glass for impact resistance and anti-reflection
• Direct LED backlight for superior brightness uniformity
• 1.7mm tiled bezel gap for near-seamless arrays
• 4,000:1 dynamic contrast ratio
• Off-board electronics: reduced panel depth, heat, and weight
• Supports landscape and portrait orientation from a single SKU
• 24/7 commercial-grade operation rated
• HDMI and serial control connectivity
• EU RoHS certified

Typical Applications

• Retail environments with high ambient light or window exposure
• Transportation terminals: airports, train stations, transit hubs
• Interactive touch kiosk arrays in public spaces
• Sports venues with high ambient light conditions
• Museum and exhibit installations requiring impact-resistant displays
• Healthcare facility information and wayfinding displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Why choose 800 nits over the standard 500-nit Clarity Matrix panels?

The 800-nit rating provides substantially better visibility in environments with high ambient light — such as retail spaces with window exposure, transportation terminals, or any installation where overhead lighting cannot be fully controlled. At 500 nits, image quality degrades noticeably in these conditions; the MX46HDX-ERO maintains readable contrast and accurate color reproduction where standard panels would appear washed out.

Can this panel be used in both landscape and portrait in the same array?

The MX46HDX-ERO supports both orientations from a single part number, which simplifies procurement for mixed-orientation arrays. The physical mounting and structural design of the array must accommodate both orientations simultaneously if that configuration is required. Confirm array design with your integrator.

Does the ERO glass affect touch overlay compatibility?

ERO optically-bonded glass is fully compatible with standard touch overlay systems. The bonded surface provides a stable, flat front surface ideal for IR or optical touch overlays. Confirm touch overlay specifications with your touch vendor for compatibility with the bonded glass thickness.

What is Direct LED versus Edge LED backlighting?

Direct LED places LEDs across the full back surface of the panel, providing more uniform brightness and better local dimming capability at high brightness levels. Edge LED places LEDs only around the panel perimeter, which is thinner but can show brightness falloff toward the center at high nit levels. The MX46HDX-ERO uses Direct LED to support consistent 800-nit output across the full panel area.

Is this panel suitable for outdoor installation?

The MX46HDX-ERO is rated for indoor commercial use. At 800 nits it performs well in high-ambient-light interiors, but it is not weatherproofed or rated for outdoor exposure. For outdoor video wall requirements, dedicated outdoor-rated displays are required.

How does the 70-lb panel weight affect installation planning?

At 70 lb per panel, array structural design must account for cumulative load. A 3x3 array of MX46HDX-ERO panels totals approximately 630 lb of panel weight before factoring in mounting hardware. Engage a structural engineer or certified AV integrator to verify wall and mount load capacity before installation.
