Planar MX46HDU-L-ERO 46"Clarity matrix G2 LCD video wall - 997-9304-00

Product Overview

The Planar MX46HDU-L-ERO is a 46-inch Clarity Matrix G2 LCD video wall panel in landscape orientation, combining 800 nit high brightness with ERO (Extended Ruggedness and Optics) optically bonded glass and Planar's EasyAxis Mounting System. This is the standard landscape reference configuration within the MX46HDU family — the baseline from which portrait (-P) and VESA (-V) variants derive. At 800 nit with ERO glass, it is engineered for landscape video wall arrays in high ambient light environments where physical panel protection and optional touch interactivity are required. SKU 997-9304-00.

Product Description

The MX46HDU-L-ERO establishes the landscape standard for the 46-inch G2 800 nit ERO lineup, using EasyAxis mounting for the 3.6-inch installed depth and precision alignment that define the Clarity Matrix video wall profile. ERO glass bonds directly to the LCD panel, eliminating the air gap that causes parallax distortion and surface reflection, producing a flat, high-contrast visual surface that reads cleanly in ambient light conditions from office to retail. At 800 nit, the panel is classified as high brightness — appropriate for lobbies, retail floors, and any landscape array installation exposed to overhead lighting or natural light from windows. With four HDMI inputs and one DisplayPort input, it accommodates a wide range of video source equipment. RS-232 serial control integrates with Crestron, AMX, and other AV control platforms. Dynamic contrast of 3,500:1 ensures sharp rendering across both high-key video content and dark UI graphics. The panel is touch-upgradeable with Planar's touch kit, enabling multi-user interactive landscape video wall configurations. This is the landscape ERO variant for any buyer comparing the MX46HDU family: MX46HDU-L-ERO for horizontal arrays, MX46HDU-P-ERO for portrait columns, MX46HDU-V-ERO for third-party VESA mounts.

Key Features

• 46-inch Full HD (1920x1080) LCD panel, landscape orientation with EasyAxis mount
• 800 nit brightness for high ambient light environments
• ERO optically bonded glass — ruggedness, glare reduction, continuous touch surface
• EasyAxis Mounting System: 3.6" installed depth, precision panel-to-panel alignment
• 3.7mm tiled bezel width
• Dynamic contrast ratio: 3,500:1
• 4x HDMI inputs, 1x DisplayPort
• RS-232 serial control (Crestron/AMX compatible)
• Touch-upgradeable: up to 32 simultaneous touch points
• Dual voltage: 120V AC and 230V AC
• EU RoHS compliant
• Clarity Matrix G2 ecosystem — standard landscape ERO reference SKU

Typical Applications

• Corporate lobby and reception area video walls with brand content
• Retail flagship installations in high ambient light floor environments
• Conference rooms and boardrooms requiring high-brightness landscape walls

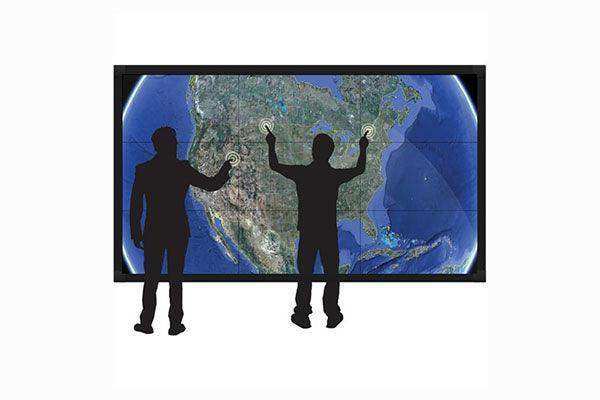

• Interactive collaboration walls with multi-user touch in meeting spaces
• Hotel atrium and public space feature display walls
• Higher education auditoriums and event space display systems

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does the MX46HDU-L-ERO compare to the MX46HDU-V-ERO and MX46HDU-P-ERO?

All three are the same 46-inch G2 800 nit ERO LCD panel. The -L-ERO is landscape-oriented with EasyAxis mounting — the standard choice for horizontal video wall arrays. The -P-ERO is portrait-configured for vertical signage columns. The -V-ERO replaces EasyAxis with a VESA mounting interface for third-party mounting hardware compatibility. Specify the correct suffix based on your mounting strategy and content orientation requirements before ordering.

What is EasyAxis and how does it improve installation quality?

EasyAxis is Planar's proprietary mounting system designed specifically for Clarity Matrix video walls. It provides multi-axis fine adjustment screws that allow installers to achieve precise panel-to-panel alignment at the bezel level — correcting for wall flatness variations and reducing the visible gap between panels below 3.7mm. Without EasyAxis, achieving consistent panel alignment in a multi-panel array requires significantly more labor and often inferior results.

Is the MX46HDU-L-ERO the same panel as the G3 MX46X-L-ERO?

No. The MX46HDU-L-ERO is a G2-generation panel using the earlier video processing and management architecture. The MX46X-L-ERO (998-0276-00) is the G3-generation equivalent, which adds the Leyard WallDirector software, the advanced Big Picture Plus Video Controller, and improved 4K processing. G3 is the current platform for new system designs; G2 panels are appropriate for expanding existing G2 installations.

Can this panel be upgraded to the G3 platform?

No. G2 and G3 panels are not cross-compatible at the electronics or mounting level. A G3 upgrade requires purchasing G3 panels and the G3 Video Controller. For new installations, G3 is recommended. For expanding existing G2 arrays, matching G2 panels are required.

What AV control systems are compatible with the RS-232 serial port?

The RS-232 interface on the MX46HDU-L-ERO is compatible with any AV control platform that outputs RS-232 commands, including Crestron, AMX, Extron, and QSC. Planar publishes RS-232 command strings in the product's control guide. For IP-based control, verify whether the panel's Video Controller supports LAN control commands for the installed firmware version.
