Planar Mosaic 3.9 Architectural LED Display

Product Overview

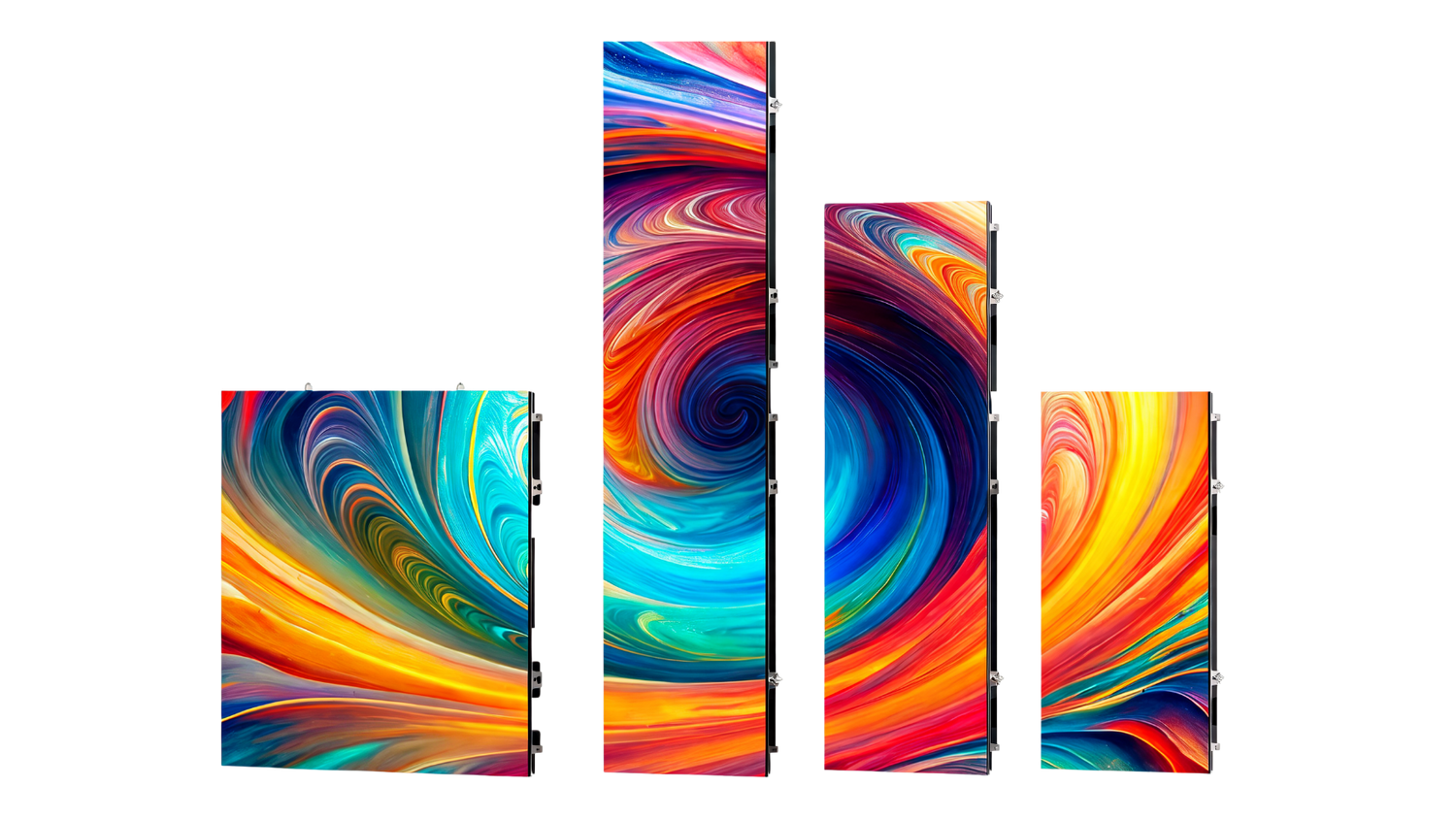

The Planar® Mosaic™ 3.9 is an indoor architectural LED display built for creative flexibility, with a 3.91mm pixel pitch. Mosaic ships in four cabinet formats — 500×250, 500×500, 750×250, and 1000×250mm — that combine as building blocks for custom shapes, sizes, and layouts, including designs that incorporate negative space. Standard-build cabinets (998-5033-00, 998-5034-00, 998-5035-00, 998-5036-00) cover typical indoor brightness; High Bright cabinets (998-4924-00, 998-4925-00, 998-4927-00) reach up to 3,000 nits.

Product Description

Planar built Mosaic to hold consistent visual performance regardless of whether a cabinet is oriented vertically or horizontally, which matters once a layout stops being a simple grid. The four cabinet sizes — 500×250mm (2×1 modules), 500×500mm (2×2 modules), 750×250mm (3×1 modules), and 1000×250mm (4×1 modules) — all use the same 250×250mm module, so mixed layouts stay consistent in brightness, color, and viewing angle across the array. Cabinet weight scales with size, from 2.65kg (5.84lbs) on the 500×250 up to 5.25kg (11.57lbs) on the 500×500 and 1000×250, which keeps most configurations within reach of a two-person install crew. Every cabinet is front-serviceable with a power-efficient design (40W per module, 100-240V AC input) for easier long-term maintenance without pulling the array off the wall. The ColorLight-compatible signal path runs at a 3,840Hz LED refresh standard, stepping up to 7,680Hz on High Bright cabinets, which keeps content clean on camera for broadcast and video-capture use. Its wider 3.91mm pitch is the most economical per square foot in the Mosaic line, well suited to longer viewing distances. Mosaic's building-block approach makes it a common choice for lobbies, feature walls, and negative-space layouts where a conventional rectangular video wall wouldn't fit the architecture. For a double-sided build in the same control ecosystem, see the Planar Chameleon 1.9.

Specifications

Key Features

• More Sizes. More Possibilities. — Four cabinet sizes provide flexible building blocks for creating custom dimensions, shapes, and layouts.
• Creativity in New Directions — Cabinets offer flexible orientation; when positioned vertically or horizontally, LED modules maintain consistent orientation across the array, preserving consistent brightness, color, and wide viewing angles.
• Bright Spaces Meet Mosaic — High Brightness models deliver up to 3,000 nits for brighter indoor environments, expanding creative possibilities into higher ambient light spaces while maintaining visual performance.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• All-hands room
• House of worship
• Broadcast studio
• Auditorium

Frequently Asked Questions

Can different cabinet sizes be combined in one Mosaic layout?
Yes. All four cabinet sizes share the same module and pitch, so 500×250, 500×500, 750×250, and 1000×250mm cabinets tile together in a single array, including layouts with negative space.

What controller does Mosaic 3.9 need?
Mosaic uses a ColorLight-compatible receiving card and controller path. Creation Networks specs the matching controller as part of a full Planar system quote.

Is a High Bright model available?
Yes for three of the four cabinet sizes (500×250, 750×250, 500×500), reaching up to 3,000 nits versus 800 nits on the Standard build. The 1000×250 High Bright cabinet has not yet been assigned a part number in Planar's published price list — contact Creation Networks to confirm current availability.

Does cabinet orientation affect image quality?
No. Planar built Mosaic so modules maintain consistent orientation, brightness, and color whether a cabinet is mounted vertically or horizontally.

Is it front-serviceable?
Yes. Every module is accessible from the front face, so no rear clearance is required once the array is installed.

What mounting options are supported?
Mosaic supports both wall-mounted and hanging installations, and its building-block cabinet sizes are commonly used for feature walls and lobby installations with irregular shapes.

What's the power draw?
40W per module on 100-240V AC, 50/60Hz input.

Does Creation Networks provide installation and support?
Yes. As a Planar partner, Creation Networks specs, installs, and supports Mosaic deployments nationwide — contact us for a project-specific quote and warranty terms.

Specifications sourced from Planar's official Mosaic Series brochure (9/2026) and September 1, 2026 Planar price list. Pricing is project-specific — contact Creation Networks for a configuration and quote: 888-230-3661.
