Planar Mosaic 1.5 Architectural LED Display

Product Overview

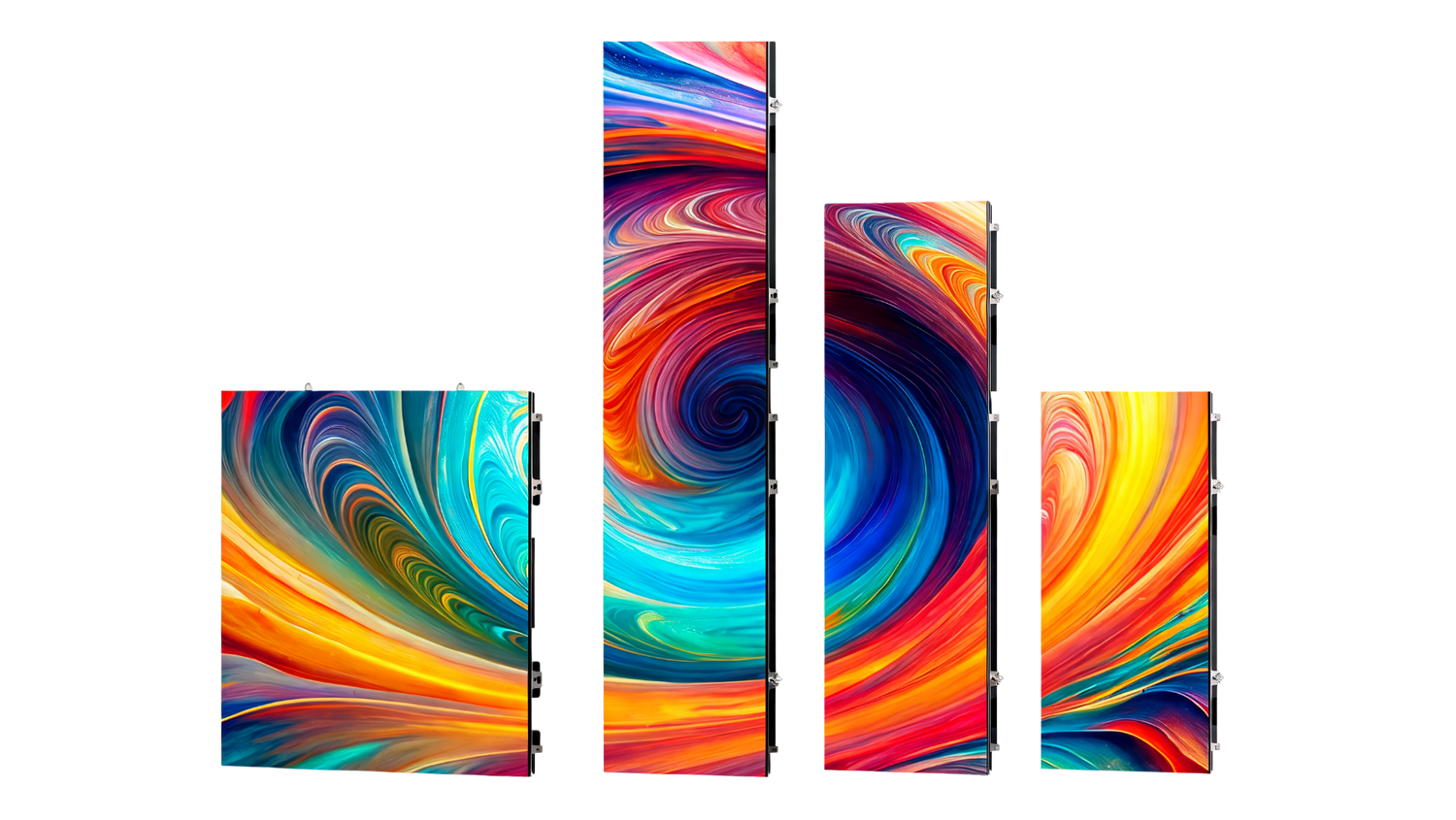

The Planar® Mosaic™ 1.5 is an indoor architectural LED display built for creative flexibility, with a 1.56mm pixel pitch. Mosaic ships in four cabinet formats — 500×250, 500×500, 750×250, and 1000×250mm — that combine as building blocks for custom shapes, sizes, and layouts, including designs that incorporate negative space. Standard-build cabinets (998-5014-00, 998-5015-00, 998-5016-00, 998-5017-00) cover typical indoor brightness; High Bright cabinets (998-4905-00, 998-4906-00, 998-4907-00, 998-4908-00) reach up to 3,000 nits.

Product Description

Planar built Mosaic to hold consistent visual performance regardless of whether a cabinet is oriented vertically or horizontally, which matters once a layout stops being a simple grid. The four cabinet sizes — 500×250mm (2×1 modules), 500×500mm (2×2 modules), 750×250mm (3×1 modules), and 1000×250mm (4×1 modules) — all use the same 250×250mm module, so mixed layouts stay consistent in brightness, color, and viewing angle across the array. Cabinet weight scales with size, from 2.65kg (5.84lbs) on the 500×250 up to 5.25kg (11.57lbs) on the 500×500 and 1000×250, which keeps most configurations within reach of a two-person install crew. Every cabinet is front-serviceable with a power-efficient design (40W per module, 100-240V AC input) for easier long-term maintenance without pulling the array off the wall. The ColorLight-compatible signal path runs at a 3,840Hz LED refresh standard, stepping up to 7,680Hz on High Bright cabinets, which keeps content clean on camera for broadcast and video-capture use. Mosaic's building-block approach makes it a common choice for lobbies, feature walls, and negative-space layouts where a conventional rectangular video wall wouldn't fit the architecture. For a double-sided build in the same control ecosystem, see the Planar Chameleon 1.9.

Specifications

Key Features

• More Sizes. More Possibilities. — Four cabinet sizes provide flexible building blocks for creating custom dimensions, shapes, and layouts.
• Creativity in New Directions — Cabinets offer flexible orientation; when positioned vertically or horizontally, LED modules maintain consistent orientation across the array, preserving consistent brightness, color, and wide viewing angles.
• Bright Spaces Meet Mosaic — High Brightness models deliver up to 3,000 nits for brighter indoor environments, expanding creative possibilities into higher ambient light spaces while maintaining visual performance.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• All-hands room
• House of worship
• Broadcast studio
• Auditorium

Frequently Asked Questions

Can different cabinet sizes be combined in one Mosaic layout?
Yes. All four cabinet sizes share the same module and pitch, so 500×250, 500×500, 750×250, and 1000×250mm cabinets tile together in a single array, including layouts with negative space.

What controller does Mosaic 1.5 need?
Mosaic uses a ColorLight-compatible receiving card and controller path. Creation Networks specs the matching controller as part of a full Planar system quote.

Is a High Bright model available?
Yes. High Bright cabinets (998-4905-00, 998-4906-00, 998-4907-00, 998-4908-00) reach up to 3,000 nits versus 600 nits on the Standard build.

Does cabinet orientation affect image quality?
No. Planar built Mosaic so modules maintain consistent orientation, brightness, and color whether a cabinet is mounted vertically or horizontally.

Is it front-serviceable?
Yes. Every module is accessible from the front face, so no rear clearance is required once the array is installed.

What mounting options are supported?
Mosaic supports both wall-mounted and hanging installations, and its building-block cabinet sizes are commonly used for feature walls and lobby installations with irregular shapes.

What's the power draw?
40W per module on 100-240V AC, 50/60Hz input.

Does Creation Networks provide installation and support?
Yes. As a Planar partner, Creation Networks specs, installs, and supports Mosaic deployments nationwide — contact us for a project-specific quote and warranty terms.

Specifications sourced from Planar's official Mosaic Series brochure (9/2026) and September 1, 2026 Planar price list. Pricing is project-specific — contact Creation Networks for a configuration and quote: 888-230-3661.
