Planar MGP Complete HD 217” LED Video Wall - 998-2869-00
Product Overview

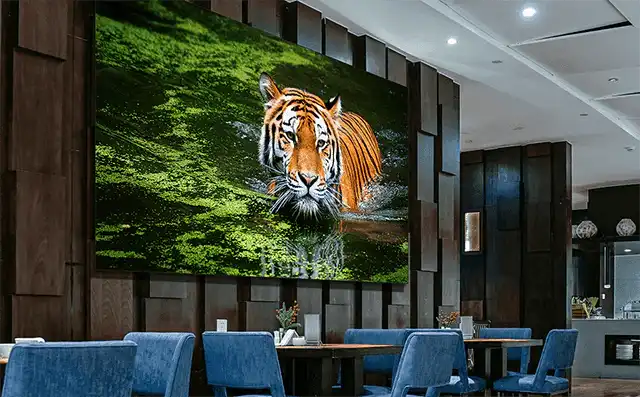

The Planar MGP Complete HD 217" LED Video Wall (998-2869-00) is a 1.8mm pixel pitch, 6x6 cabinet LED video wall measuring approximately 11.8 feet wide by 6.6 feet tall, delivering Full HD 1920x1080 resolution across a 217-inch diagonal canvas. Built around the Planar MGP LED video wall platform, this packaged solution targets organizations that need a large-format dvLED display system comparable in price to legacy LCD video walls but with the brightness, color saturation, and serviceability advantages of direct view LED. Buyers searching for a Planar MGP LED video wall for corporate lobbies or a budget-accessible large-format fine pitch LED video wall will find this solution ships with everything needed for deployment: display cabinets, WallDirector video controller, signal cables, power cables, wall mount, trim, remote control, and spare LED modules. The S6F controller is included, and the front-serviceable design supports ADA-compliant installation.
Product Description
The Planar MGP Complete Video Wall is positioned as a practical successor to tiled LCD video walls and front-projection systems for organizations seeking modern display technology without the budget constraints historically associated with fine pixel pitch LED. At 1.8mm pixel pitch, the MGP HD 217 provides comfortable viewing from as close as 7 feet, making it appropriate for lobby installations, large conference rooms, and open meeting spaces where viewers may approach at variable distances.
The 27-inch stackable cabinets feature front installation and serviceability, with an install depth of under four inches for ADA compliance and minimal wall clearance requirements. The stackable design removes cabinet-to-cabinet cabling, reducing installation complexity and vertical alignment challenges. The Planar WallDirector Video Controller included in the package manages native resolution output and content windowing. The Planar EverCare Lifetime Warranty covers this solution, providing long-term assurance for mission-critical deployments.
Key Features
- 217-Inch Diagonal Display — One of the largest pre-packaged fine pitch LED video wall sizes available; suited to large lobbies, open all-hands spaces, and auditoriums.
- 1.8mm Pixel Pitch — Fine pitch LED at a comfortable minimum viewing distance of 7 feet for large corporate and public spaces.
- Full HD Resolution (1920x1080) — Native Full HD output across the 6x6 cabinet array for standard broadcast and presentation content.
- Planar WallDirector Video Controller — Included controller drives native resolution with content windowing and multi-source input management.
- Front-Serviceable Design — LED modules replaceable from the front with install depth under four inches; ADA-compliant for accessible installations.
- Stackable Cabinet Design — Zero cabinet-to-cabinet cabling reduces installation time and eliminates vertical alignment complexity.
- Complete Turnkey Package — Includes display cabinets, S6F controller, signal cables, power cables, wall mount, spare modules, remote control, and trim.
- Planar EverCare Lifetime Warranty — Industry-leading warranty covers the display system for the life of the product in North America.
- 16:9 Aspect Ratio — Native widescreen format compatible with standard video, presentation, and conferencing content sources.
Typical Applications
- All-hands room
- Auditorium
- Conference room
- Multi-purpose room
- Government space
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size (Diagonal) | 217" |
| Display Dimensions | 11.8 ft x 6.6 ft (approximately) |
| Display Technology | Fine Pitch LED (dvLED) |
| Pixel Pitch | 1.8mm |
| Cabinet Configuration | 6x6 |
| Native Resolution | Full HD (1920 x 1080) |
| Aspect Ratio | 16:9 |
| Minimum Viewing Distance | 7 ft (2.1 m) |
| Video Controller | S6F Controller with Planar WallDirector |
| Front Serviceability | Yes |
| Install Depth | Under 4 inches |
| UPC | 810689009900 |
| SKU / Part Number | 998-2869-00 |
| Package Contents | Display cabinets, S6F controller, signal cables, power cables, wall mount, trim, remote control, spare modules |
| Warranty | Planar EverCare Lifetime Warranty |
Competitor Comparison
| Criteria | Planar MGP HD 217" | Samsung IWA 217" | LG LSAA 217" | Absen Acclaim 216" |
|---|---|---|---|---|
| Price Point | Positioned near legacy LCD video wall pricing — accessible entry for fine pitch LED at this size | Typically higher cost at equivalent size | Typically higher cost at equivalent size | Competitive at this size — varies by pitch |
| Pixel Pitch | 1.8mm — 7ft minimum viewing distance for large open spaces | Available in similar and finer pitches | Available in similar and finer pitches | Available in similar and finer pitches |
| Package Completeness | Full turnkey — controller, mounts, cables, spare modules all included | Partial — accessories often separate | Partial — accessories often separate | Partial — processor and mounts separate |
| Front Serviceability | Yes — under 4-inch install depth, ADA-compliant | Available on select IWA models | Available on select LSAA models | Available on Acclaim series |
| Cabinet Cabling | Zero cabinet-to-cabinet cabling — stackable design | Inter-cabinet cabling required | Inter-cabinet cabling required | Inter-cabinet cabling required |
| Warranty | Planar EverCare Lifetime Limited Warranty | Standard commercial warranty | Standard commercial warranty | Standard commercial warranty |
| Minimum Viewing Distance | 7 ft (2.1 m) at 1.8mm pitch | Varies by pitch selection | Varies by pitch selection | Varies by pitch selection |
Frequently Asked Questions
- What is the minimum comfortable viewing distance for this video wall?
- At 1.8mm pixel pitch, the recommended minimum viewing distance is 7 feet (2.1 meters). This makes the MGP HD 217 appropriate for large lobbies, open all-hands rooms, and auditoriums where viewers maintain at least this distance from the display surface.
- What video controller is included?
- The package includes the S6F Controller paired with Planar WallDirector Video Controller software, which manages native resolution output, content windowing, and multi-source input routing.
- Is this video wall front-serviceable?
- Yes. The MGP Complete features front-side installation and serviceability with an install depth of under four inches. This allows technicians to replace LED modules from the front without rear wall access, and the low depth meets ADA clearance standards.
- How does the MGP compare to an LCD video wall at this size?
- The Planar MGP delivers higher brightness, better color saturation, wider viewing angles, and longer lifespan than comparable LCD video wall configurations. It also eliminates glare and shadow artifacts that affect LCD panels in ambient light conditions.
- What is included in the Complete package?
- The package includes LED display cabinets, the S6F controller with WallDirector software, signal cables, power cables, wall mount hardware, trim, a remote control, and spare LED modules.
- Does this video wall come with a lifetime warranty?
- Yes. The Planar MGP Complete is covered under the Planar EverCare Lifetime Warranty for qualifying North American purchases.
