Planar Mantis 1.9mm – Indoor Rental LED Cabinet

Product Overview

The Planar Mantis 1.9mm indoor rental LED cabinet is a 500x500mm panel built for fast-turnaround staging and event production. This configuration uses a 2x2 module array at 1.9mm pixel pitch with an integrated Brompton R2+ receiver card and a single power supply. It is engineered for tool-less, one-handed setup and teardown, making it suited to rental and staging crews. The lightweight magnesium alloy frame resists flexing to keep image alignment consistent across the wall.

Product Description

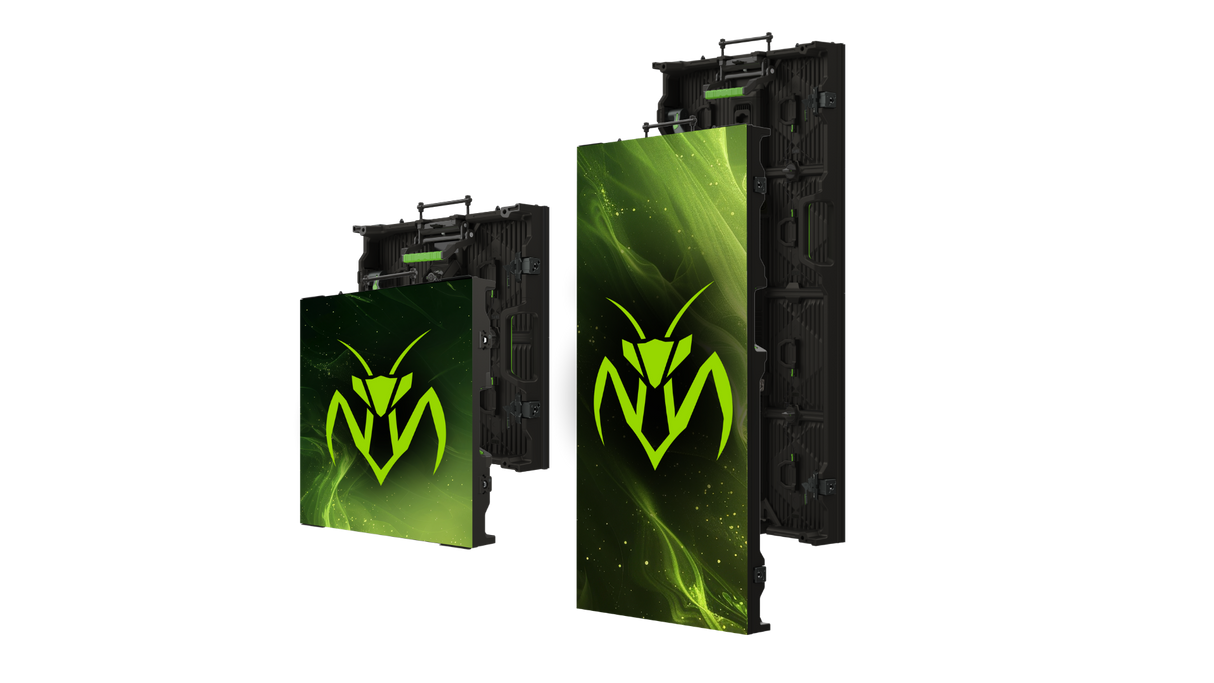

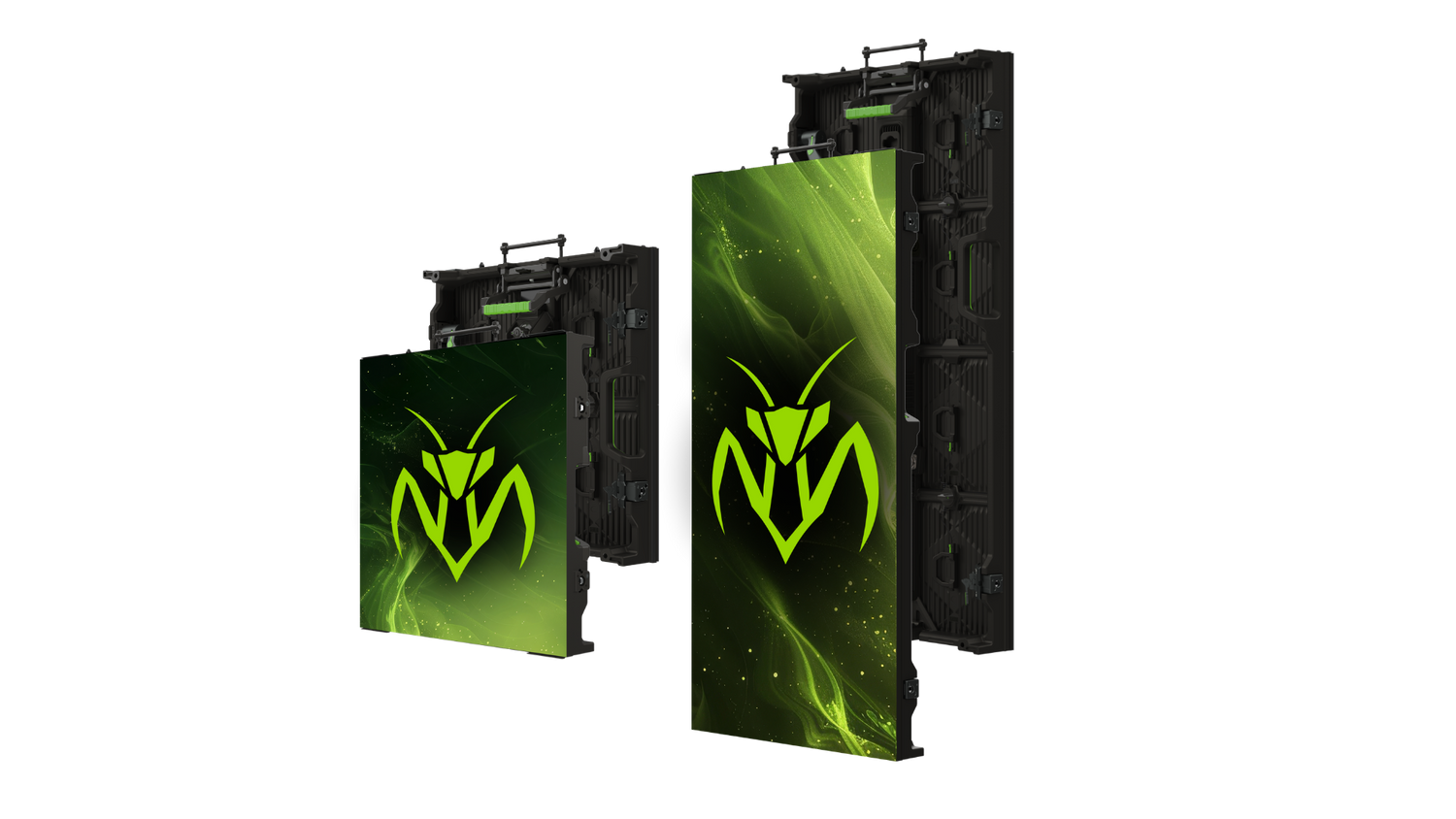

The Planar Mantis Series is a family of versatile rental LED video walls offered at 1.5mm, 1.9mm, and 2.6mm pixel pitches. This 1.9mm cabinet (SKU 998-4988-00) measures 500x500mm and carries a 2x2 module array, a Brompton R2+ receiver card, and a single integrated power supply. The magnesium alloy chassis is designed for rigidity to minimize warping that can disrupt panel-to-panel alignment during repeated transport and rigging. Mantis cabinets are designed for tool-less, one-handed assembly so crews can build and strike a wall quickly on tight production schedules. The series supports brightness up to 1,500 nits, refresh rates up to 7,680Hz, a 4,000:1 contrast ratio, and scan rates down to 1:8 for camera-friendly capture. The Brompton receiver platform integrates with Brompton Tessera processing for color management, HDR, and camera sync workflows. This panel is part of our broader Planar collection at Creation Networks. As a rental-grade product, exact per-cabinet resolution and weight depend on configuration; contact Creation Networks to confirm. Our team can specify Mantis walls for broadcast, corporate staging, and live event deployments.

Key Features

• 1.9mm pixel pitch — Delivers fine resolution suited to medium-distance viewing in staging and broadcast environments.
• 500x500mm cabinet — Standard square format with a 2x2 module array for predictable wall layout planning.
• Brompton R2+ receiver — Integrates with Brompton Tessera processors for color, HDR, and camera sync capabilities.

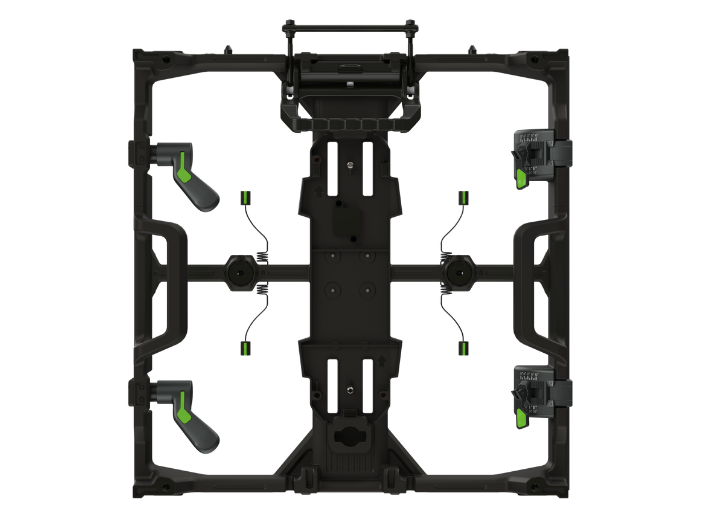

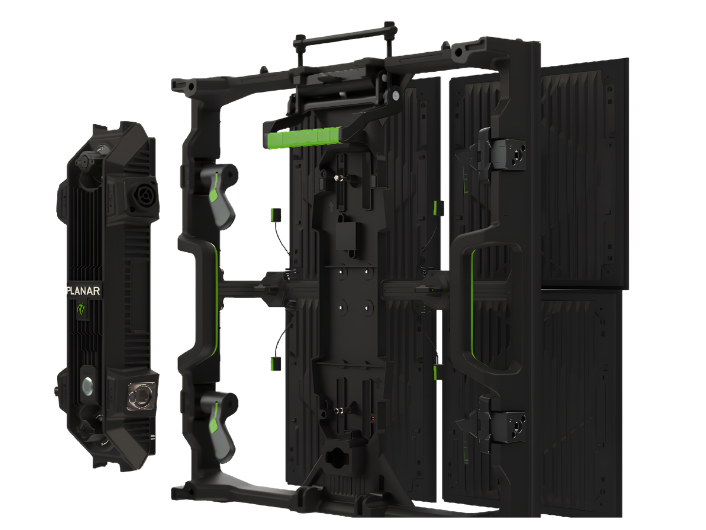

• Magnesium alloy frame — Lightweight, rigid construction that resists flexing to maintain alignment during transport.

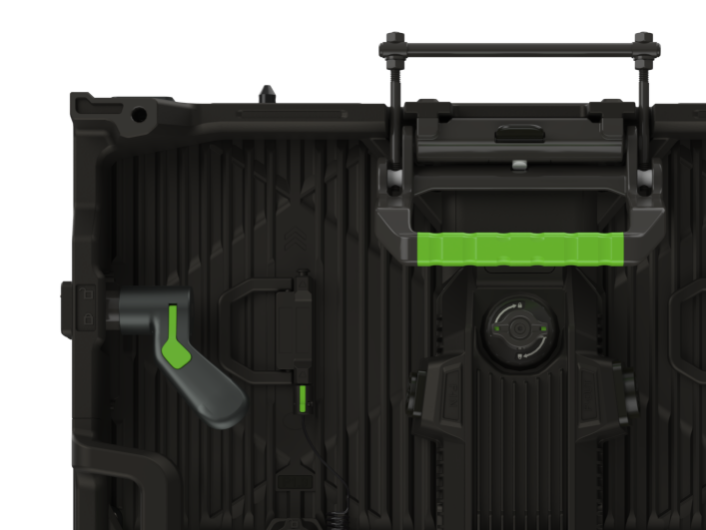

• Tool-less assembly — One-handed setup and teardown speeds installation for rental and event crews.
• High refresh and scan rate — Refresh up to 7,680Hz and scan to 1:8 support clean on-camera capture.
• Single integrated power supply — Simplifies cabling and power distribution per panel.

Typical Applications

• Broadcast studio backdrops and set walls
• Auditorium and main-stage event displays
• All-hands room and corporate town hall staging
• House of worship live production
• Multi-purpose room temporary installations

Technical Specifications

Frequently Asked Questions

What pixel pitch is this Mantis cabinet? This model is a 1.9mm pixel pitch panel, positioned between the 1.5mm and 2.6mm Mantis options for medium-distance viewing.

What receiver card does it use? It ships with a Brompton R2+ receiver card for use with Brompton Tessera processing.

What are the cabinet dimensions? The cabinet is 500x500mm with a 2x2 module array.

Is this designed for permanent or rental installation? The Mantis Series is built for rental and staging with tool-less, one-handed setup, though it can be used for fixed installs.

How is the cabinet powered? Each panel includes a single integrated power supply to simplify distribution.

Can Creation Networks help specify a full Mantis wall? Yes. Contact Creation Networks to confirm cabinet counts, processing, rigging, and power for your project.
