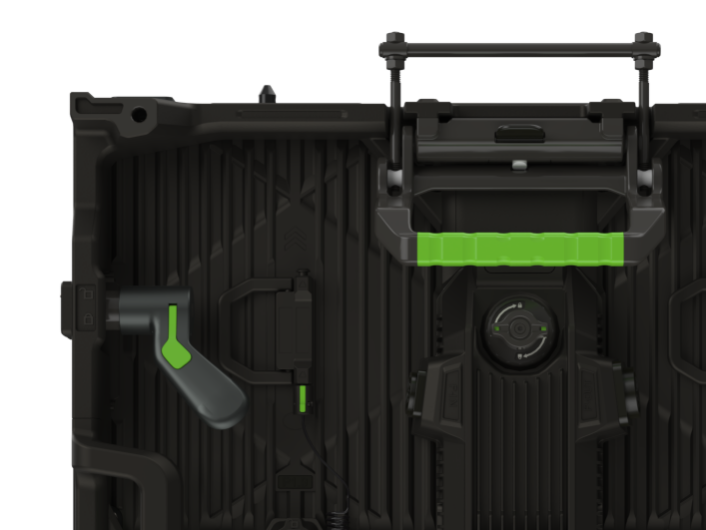

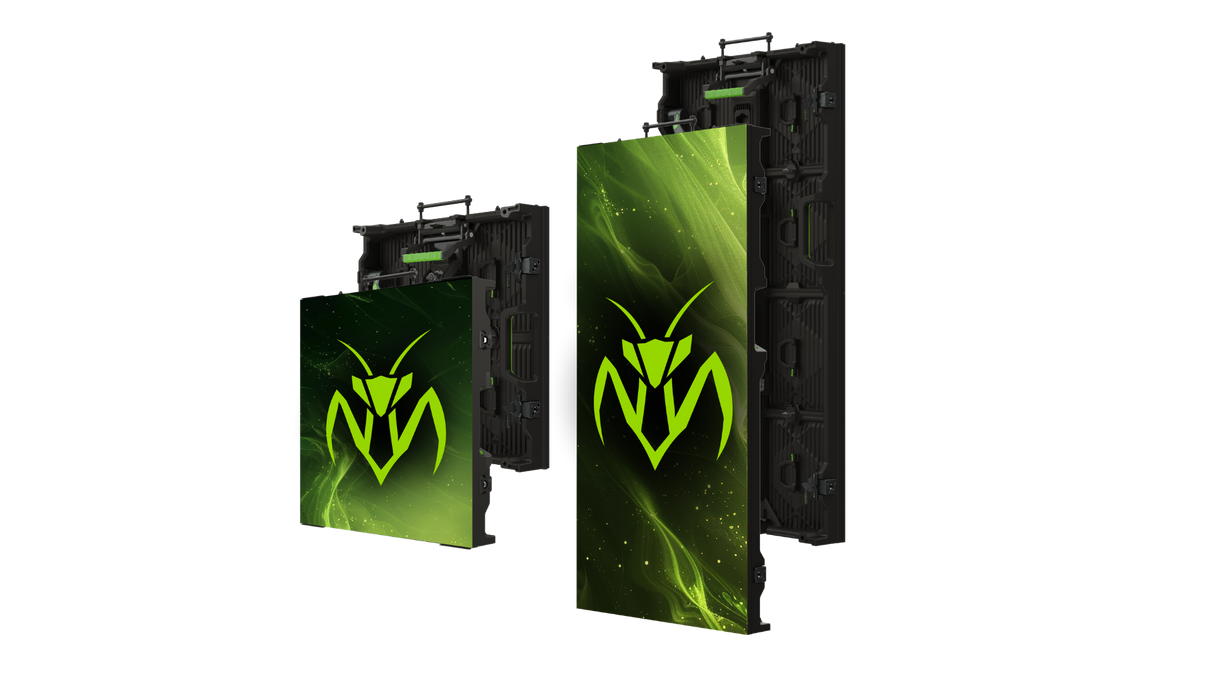

Planar Mantis 1.5mm – GOB Rental LED Cabinet, 500x500mm

Product Overview

The Planar Mantis Series is a family of versatile, high-performance rental and staging LED video walls. This cabinet is configured at a 1.5mm fine pixel pitch in a 500 x 500mm panel with a 2x2 module array, a Brompton R2+ receiver card, a single power supply, and GOB (glue-on-board) surface protection. The lightweight magnesium alloy design is built for fast, tool-less setup and teardown. The 1.5mm pitch and GOB protection make this configuration well suited to close-viewing and high-traffic on-camera environments.

Product Description

The Planar Mantis 1.5mm cabinet combines a fine pixel pitch with rental-grade durability for events, broadcast, and staging. The 1.5mm pitch supports sharp imagery at the short viewing distances common in immersive and on-camera applications, while the GOB surface protection adds a protective layer over the LEDs that improves resistance to impact and handling during repeated transport. This configuration uses the 500 x 500mm cabinet size populated with a 2x2 module array and powered by a single power supply. The Brompton R2+ receiver card pairs the cabinet with Brompton Technology processing, a standard choice for high-frame-rate and broadcast content. Across the Mantis Series, the lightweight magnesium alloy design is engineered for rigidity to minimize flexing or warping and help maintain image alignment, and supports tool-less, one-handed setup and teardown. Series specifications include up to 1,500 nits of brightness, refresh rates up to 7,680Hz, and a 4,000:1 contrast ratio with scan rates down to 1:8. The 500 x 500mm format allows precise canvas sizing. Rental houses and integrators can combine these cabinets with compatible Brompton processing and rigging to build event-ready walls. Browse the full Planar video wall lineup in our Planar collection. For cabinet count, processing, and rigging guidance, contact Creation Networks to confirm.

Key Features

• 1.5mm fine pixel pitch — Supports sharp imagery at short viewing distances and on-camera applications.
• GOB surface protection — Glue-on-board layer improves resistance to impact and handling during repeated transport.
• 500 x 500mm cabinet — 2x2 module array in a standard modular format for precise canvas sizing.

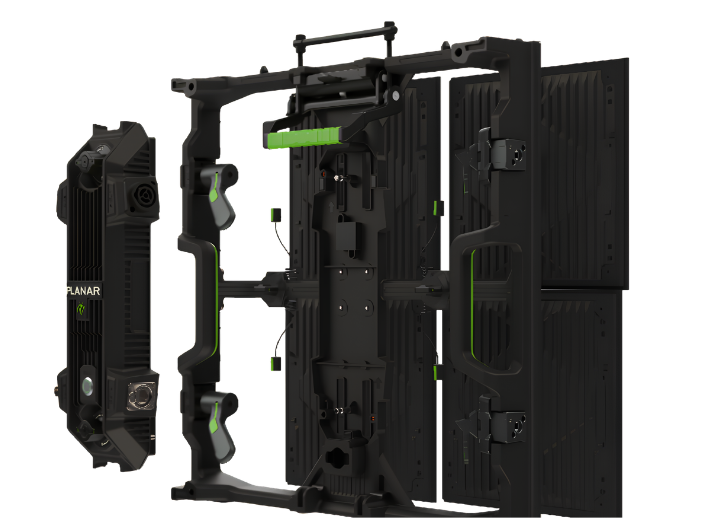

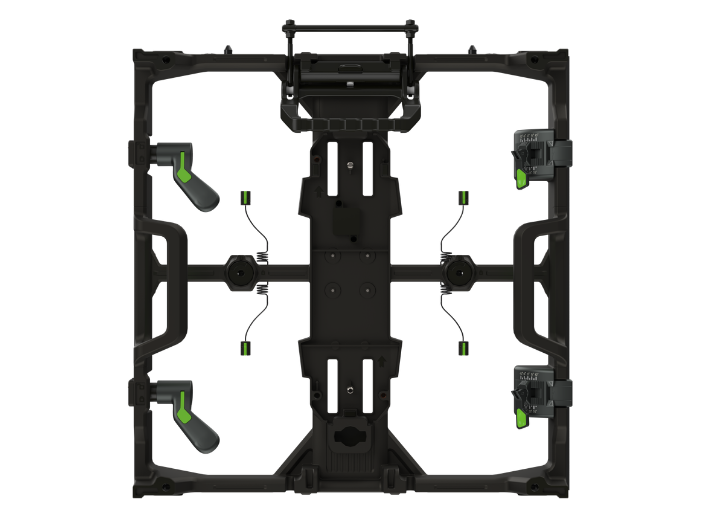

• Magnesium alloy design — Lightweight, rigid frame minimizes flexing to help maintain image alignment.
• Tool-less setup — One-handed, tool-less setup and teardown built for rental and staging crews.
• Brompton R2+ receiver card — Pairs the cabinet with Brompton Technology processing for live and broadcast content.
• High performance — Series supports up to 1,500 nits, refresh up to 7,680Hz, and 4,000:1 contrast.

Typical Applications

• Broadcast studio
• Auditorium
• House of worship
• Commercial meeting space
• Multi-purpose room
• All-hands room

Technical Specifications

Frequently Asked Questions

• What is GOB protection? GOB (glue-on-board) adds a protective layer over the LEDs that improves resistance to impact and handling during transport.
• What pixel pitch is this cabinet? This configuration is a 1.5mm fine pixel pitch in a 500 x 500mm cabinet.
• What does the Brompton R2+ card do? It pairs the cabinet with Brompton Technology processing for high-frame-rate and broadcast content.
• How fast is setup? The Mantis design enables tool-less, one-handed setup and teardown.
• How bright can it get? The series supports up to 1,500 nits with refresh rates up to 7,680Hz.
• How many cabinets do I need? Cabinet count depends on the target canvas size. Contact Creation Networks to confirm a layout.
