Planar Clarity Matrix G3 LX55X3 Fiber LCD Video Wall

Product Overview

The Planar Clarity Matrix G3 LX55X3 Fiber Extension is a 55-inch LCD video wall display configured for long-distance signal delivery. It pairs a Full HD (1920 x 1080) panel with a 2.6mm tiled bezel and adds 2km single-mode fiber modules, allowing the controller electronics to sit far from the display surface. The system ships with one LCD module, the required power supply modules, standard video controller electronics, the fiber modules and a landscape mount. It is TAA compliant for government and regulated procurement.

Product Description

This LX55X3 fiber-extension configuration belongs to Planar's Clarity Matrix G3 LCD video wall family, the LX tier rated at 500 nits for controlled-lighting environments. The defining feature of this variant is the included 2km single-mode fiber modules, which extend the connection between the video controller and the display over distances impractical for copper cabling. That capability is valuable when source equipment must be housed in a separate room, a remote rack or a secure area away from the wall itself. The 2.6mm tiled bezel keeps seams between adjacent panels narrow for a near-continuous image, and the system is engineered for 24x7 operation in mission-critical settings. Clarity Matrix uses off-board electronics to keep installation depth shallow and simplify serviceability, which complements the remote-controller approach enabled by fiber. This configuration includes a landscape mount and functions as a complete building block within a larger tiled wall. Because the controller capacity, fiber routing and module count depend on the overall design, a fiber-extended video wall is best planned as a system; Creation Networks can scope a layout and signal path for a specific site. Browse the complete Planar lineup on our Planar collection. Exact fiber run support, controller capacity and panel-level dimensions vary by configuration — contact Creation Networks to confirm.

Key Features

• 2km single-mode fiber — Included fiber modules extend the controller-to-display connection over long distances.

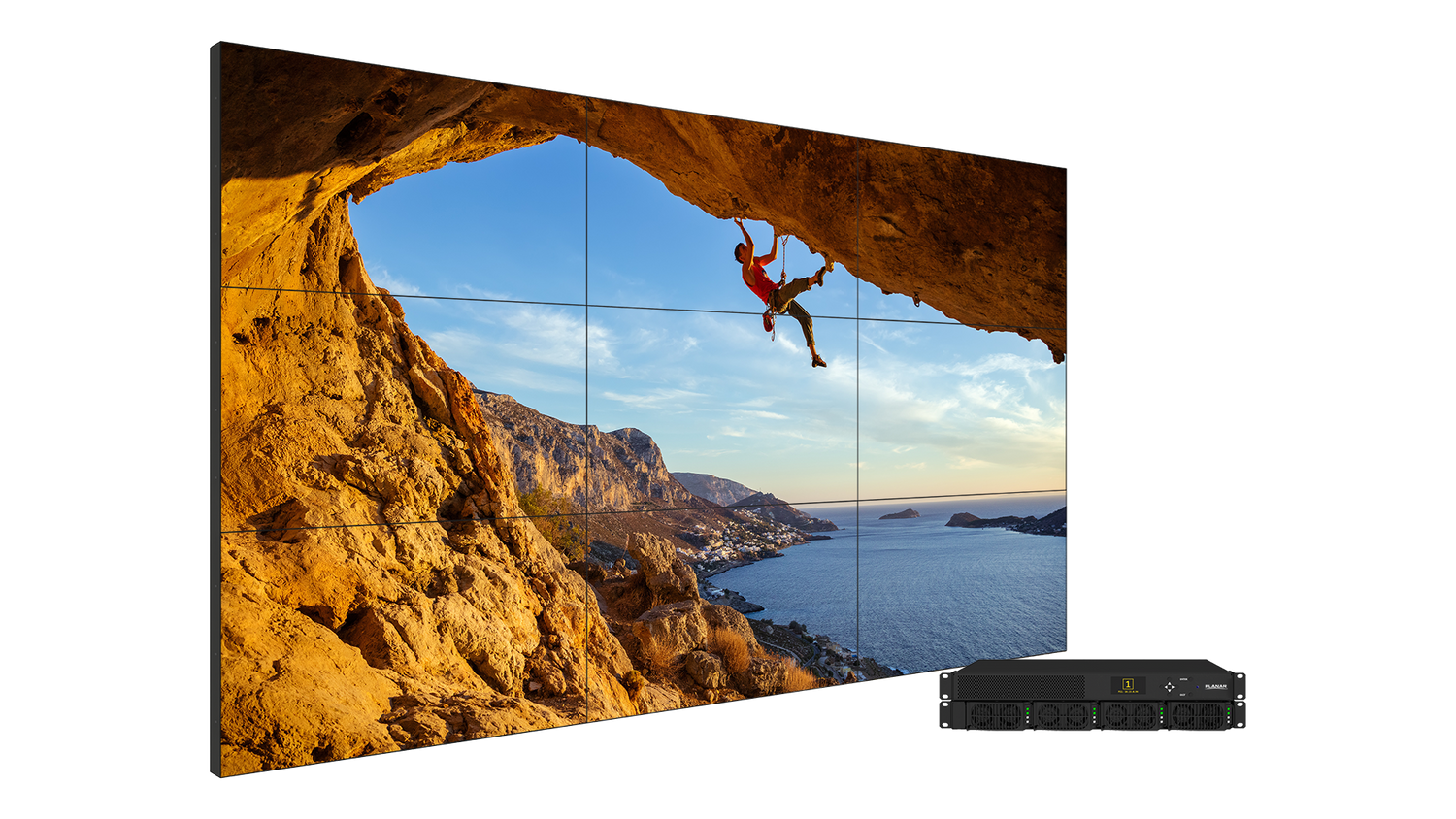

• 55-inch Full HD panel — 1920 x 1080 resolution per module for tiled video wall canvases.
• 2.6mm tiled bezel — Narrow seam width supports a near-continuous image across adjacent displays.
• 500-nit brightness — LX tier suited to controlled-lighting environments.
• 24x7 reliability — Built for continuous operation in mission-critical settings.

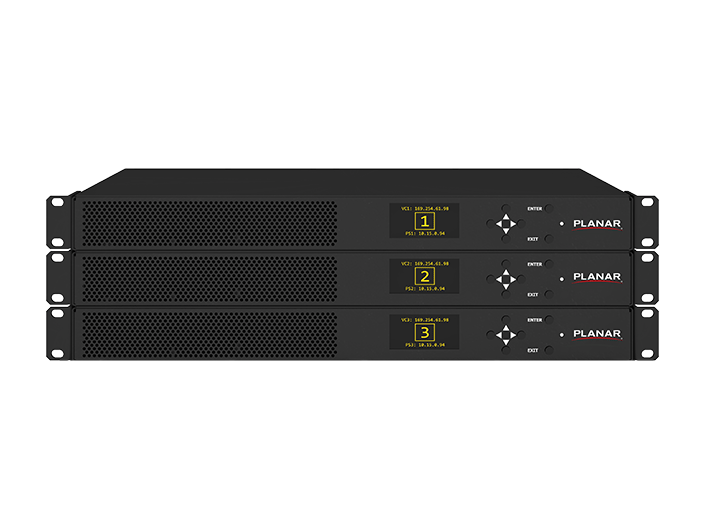

• Off-board electronics — Clarity Matrix architecture keeps install depth shallow and aids serviceability.

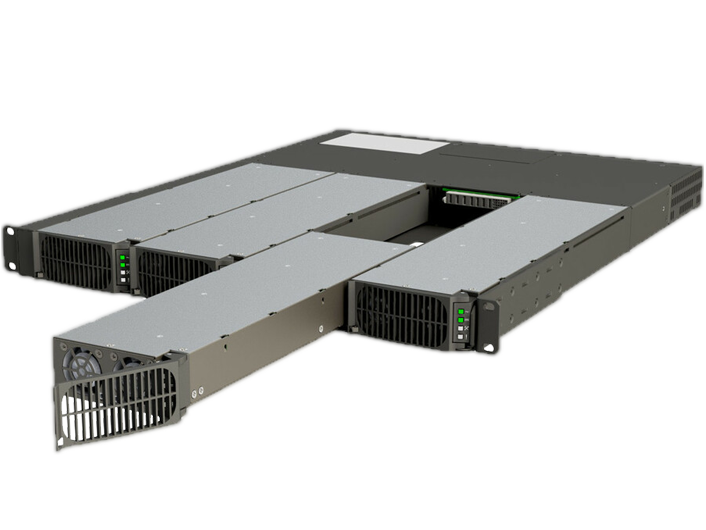

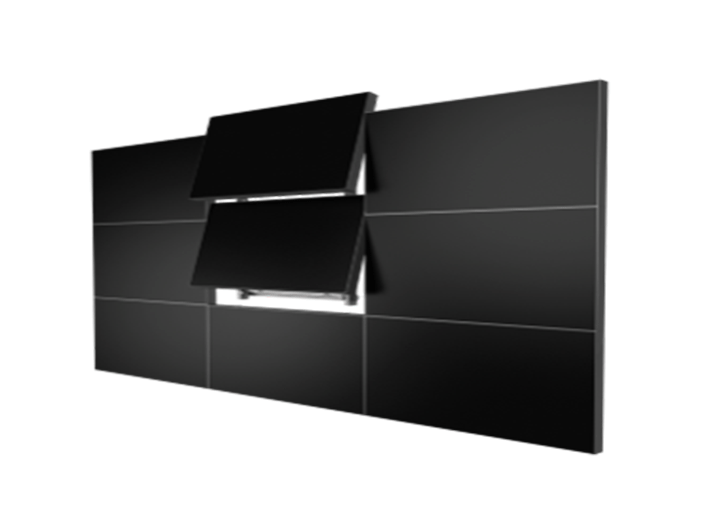

• Complete system module — Includes one LCD module, required power supplies, controller electronics, fiber modules and landscape mount.
• TAA compliant — Supports government and regulated procurement.

Typical Applications

• Government space
• Broadcast studio
• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

What does the fiber extension provide?
It includes 2km single-mode fiber modules that extend the connection between the video controller and the display over long distances.

How bright is the LX55X3?
It is rated at 500 nits, the LX tier suited to controlled-lighting environments.

What is the bezel width?
The tiled bezel width is 2.6mm for a near-continuous image across a tiled wall.

What is included with this unit?
It includes one LCD module, required power supply modules, standard video controller electronics, the fiber modules and a landscape mount.

Is it rated for continuous use?
Yes. The system is designed for 24x7 operation.

How far can the controller be placed from the wall?
The included fiber modules support long single-mode runs. For exact supported distances and routing, contact Creation Networks to confirm.
