Planar Clarity Matrix G3 LX55X3 LCD Video Wall (Landscape)

Product Overview

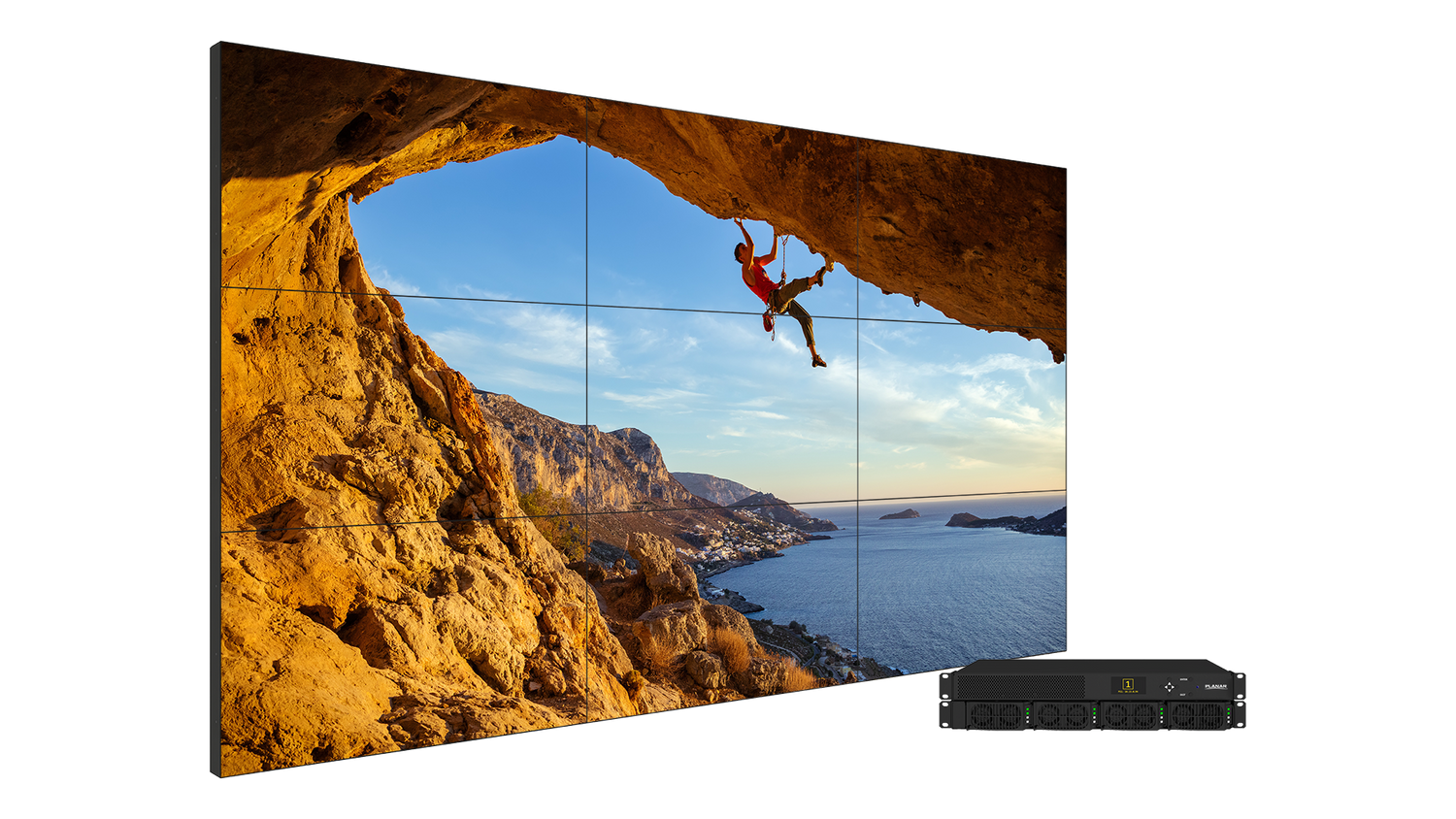

The Planar Clarity Matrix G3 LX55X3 is a 55-inch LCD video wall display for controlled-lighting environments and continuous operation. It pairs a Full HD (1920 x 1080) panel with a narrow 2.6mm tiled bezel and 500-nit brightness for a tight, near-continuous canvas across multiple units. This configuration ships as a video wall system with one LCD module, the required power supply modules, standard video controller electronics and a landscape mount. It is TAA compliant for government and regulated procurement.

Product Description

This LX55X3 unit is part of Planar's Clarity Matrix G3 LCD video wall family, the LX tier rated at 500 nits and well suited to rooms with managed ambient light such as control rooms, command centers and corporate lobbies. A 2.6mm tiled bezel keeps the seams between adjacent displays minimal, supporting a cohesive image when content spans the full array. The system is engineered for 24x7 operation, making it appropriate for mission-critical environments that run continuously. This configuration includes a landscape mount and ships with one LCD module, the required power supply modules and standard video controller electronics, so it functions as a complete building block within a larger Clarity Matrix wall. The Clarity Matrix platform uses off-board electronics to keep installation depth shallow and to simplify serviceability, which is an advantage in tightly packed equipment areas. Because video walls are sized to the room and content, the number of modules, controller configuration and mounting approach should be planned as a system; Creation Networks can scope a layout for a specific application. Explore the full Planar range on our Planar collection. Exact panel-level dimensions, power draw and controller capacity vary by configuration — contact Creation Networks to confirm.

Key Features

• 55-inch Full HD panel — 1920 x 1080 resolution per module for tiled video wall canvases.
• 500-nit brightness — LX tier suited to control rooms and other controlled-lighting environments.
• 2.6mm tiled bezel — Narrow seam width supports a near-continuous image across adjacent displays.
• 24x7 reliability — Built for continuous operation in mission-critical environments.

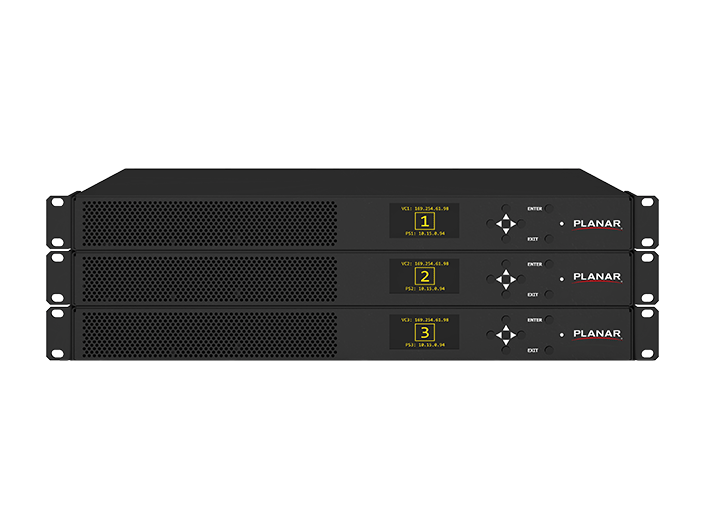

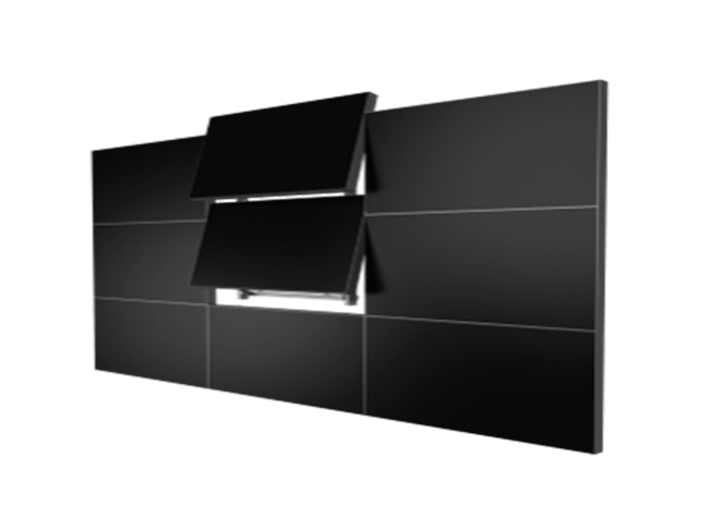

• Off-board electronics — Clarity Matrix architecture keeps install depth shallow and aids serviceability.

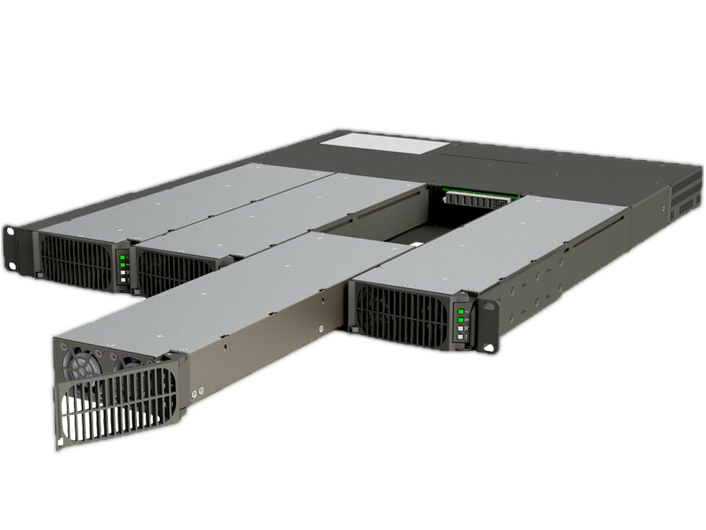

• Complete system module — Includes one LCD module, required power supply modules and standard video controller electronics.
• Landscape mount — This configuration includes a landscape mount.
• TAA compliant — Supports government and regulated procurement.

Typical Applications

• Government space
• Broadcast studio
• Boardroom
• Conference room
• Commercial meeting space
• Multi-purpose room
• Auditorium

Technical Specifications

Frequently Asked Questions

How bright is the LX55X3?
It is rated at 500 nits, the LX tier suited to controlled-lighting environments.

What is the bezel width between displays?
The tiled bezel width is 2.6mm, keeping seams minimal across a tiled wall.

What mount does this configuration include?
This configuration includes a landscape mount.

What is included with this unit?
It includes one LCD module, the required power supply modules and standard video controller electronics.

Is it rated for continuous use?
Yes. The system is designed for 24x7 operation.

How many modules do I need for my wall?
Quantity depends on the wall size and layout. Contact Creation Networks to confirm a configuration.
