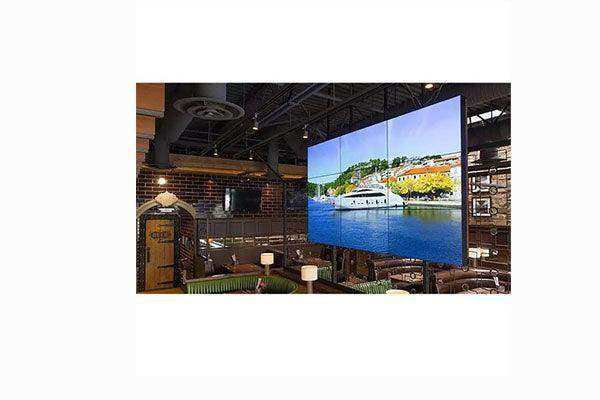

Planar LX55X2-L-ERO 55" 1920x1080 Clarity Matrix Full HD 1.8mm LCD Video Wall - 998-2661-00
Planar LX55X2-L-ERO 55" 1920x1080 Clarity Matrix Full HD 1.8mm LCD Video Wall - 998-2661-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX55X2-L-ERO 55" 1920x1080 Clarity Matrix Full HD 1.8mm...
Product Overview
The Planar LX55X2-L-ERO is a 55-inch Clarity Matrix G3 Full HD LCD video wall panel featuring an ultra-narrow 1.8mm tiled bezel for virtually seamless tiled display arrays. Rated at 500 nits brightness with 1920x1080 Full HD resolution and LED backlighting, this landscape-oriented panel is designed for corporate, government, and control room video walls operating under controlled ambient light conditions. Planar ERO (Extended Ruggedness and Optics) optically-bonded glass provides superior optical performance and physical protection, making it suitable for public-facing installations. As a Clarity Matrix G3 platform panel, it benefits from Planar WallSync Smart Genlock for perfectly synchronized video playback across multi-panel arrays without manual configuration.
Product Description
The Planar LX55X2-L-ERO 55-inch Clarity Matrix G3 video wall panel represents the current generation of Planar's gold-standard tiled LCD display platform, delivering mission-critical reliability with industry-leading narrow bezels. The 1.8mm tiled bezel width between adjacent displays creates a near-seamless visual surface, minimizing visible seams that can distract viewers in presentation-critical environments. Planar WallSync with Smart Genlock eliminates the frame tearing and synchronization issues common in multi-panel configurations, ensuring all panels refresh simultaneously without manual intervention. The ERO optically-bonded glass virtually eliminates parallax and internal reflections, delivering superior contrast and readability in environments where viewers approach the display closely. Off-board electronics keep heat-generating components away from the display face, simplifying maintenance access and extending panel service life in 24/7 installations. The EasyAxis Mounting System enables precise panel-to-panel alignment at an installed depth of just 3.6 inches, making this panel one of the thinnest video wall solutions available. 500-nit brightness combined with Full HD resolution provides vivid, uniform imagery for corporate lobbies, emergency operations centers, and broadcast environments. SKU 998-2661-00 ships with a 3-year limited warranty.
Key Features
- 55-inch Full HD (1920x1080) Clarity Matrix G3 LCD video wall panel
- Ultra-narrow 1.8mm tiled bezel width for near-seamless arrays
- 500-nit LED backlighting for controlled ambient light environments
- Landscape orientation (LX55X2-L)
- Planar ERO optically-bonded glass for enhanced optics and ruggedness
- Planar WallSync Smart Genlock for automatic synchronized playback
- EasyAxis Mounting System — 3.6-inch installed depth
- Off-board electronics design for simplified maintenance
- 24/7 mission-critical reliability
- Video wall compatible: scalable to any array configuration
- 3-year limited warranty | SKU: 998-2661-00
Typical Applications
- Corporate lobbies, boardrooms, and executive briefing centers
- Emergency operations centers (EOC) and public safety command rooms
- Broadcast studios and news control room video walls
- Transportation hubs: airports, rail stations, and transit centers
- Government and military operations centers
- Retail and hospitality high-impact display walls
- Education: university atriums and auditorium video walls
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size | 55 inches |
| Platform | Clarity Matrix G3 |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits |
| Tiled Bezel Width | 1.8mm |
| Backlight | LED |
| Scan Format | 1080p |
| Orientation | Landscape |
| ERO Glass | Yes (optically bonded) |
| Installed Depth | 3.6 inches (91mm) |
| WallSync | Yes (Smart Genlock) |
| Warranty | 3-year limited |
| Part Number | 998-2661-00 |
Competitor Comparison
| Feature | Planar LX55X2-L-ERO | Samsung IFH-D 55" | LG LSCB 55" | NEC UN Series 55" |
|---|---|---|---|---|
| Tiled Bezel Width | 1.8mm | 1.8mm | 1.8mm | 1.8mm |
| ERO Bonded Glass | Yes (standard) | No | No | No |
| Smart Genlock Sync | Yes (WallSync) | Manual | Manual | Manual |
| Off-board Electronics | Yes | No | No | No |
| Installed Depth | 3.6 inches | ~4 inches | ~4 inches | ~4 inches |
Frequently Asked Questions
- What is the tiled bezel width of the LX55X2-L-ERO?
- The LX55X2-L-ERO achieves a 1.8mm tiled bezel width between adjacent panels, creating one of the most seamless video wall surfaces available for professional installations.
- What does WallSync Smart Genlock do?
- Planar WallSync uses Smart Genlock to automatically synchronize video playback across all panels in the video wall, eliminating frame tearing and ensuring perfectly aligned imagery without manual configuration.
- Is this panel compatible with video wall controllers?
- Yes. The Clarity Matrix G3 platform is compatible with Planar off-board video controllers and supports Big Picture Plus Video Wall Processing for source scaling and multi-window configurations.
- What is the difference between the L and P variants?
- The L suffix denotes landscape orientation. A P variant would be configured for portrait orientation. Both are available in the Clarity Matrix LX family to accommodate different video wall layout designs.
- Does ERO glass affect touchscreen compatibility?
- ERO (Extended Ruggedness and Optics) glass is primarily a passive protective and optical enhancement. Touch-enabled configurations are available separately within the Clarity Matrix ecosystem.
- What warranty does this panel carry?
- The LX55X2-L-ERO includes a 3-year limited warranty from Planar.
