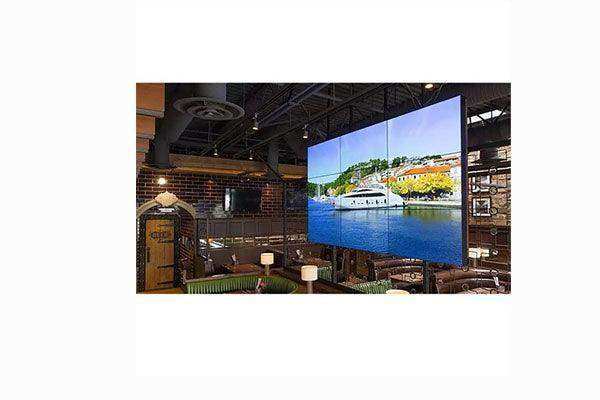

Planar LX55X2-L clarity Matrix G3 55" 1920x1080 500 nit Landscape - 998-2658-00

Product Overview

The Planar LX55X2-L is a 55-inch Clarity Matrix G3 LCD video wall display in landscape orientation, representing Planar's latest generation platform at 500 nits and Full HD 1080p resolution with the industry's narrowest bezels. As the G3 successor to the G2 LX55 line, the LX55X2-L (SKU 998-2658-00) introduces WallSync with Smart Genlock for automatic synchronized video playback, a thinner profile, and enhanced video processing capabilities that set a new benchmark for commercial LCD video wall systems. This model is the purpose-built landscape configuration in the X2 generation, designed for integrators requiring the most current Planar platform technology in horizontal arrays.

Product Description

The Clarity Matrix G3 platform in the LX55X2-L builds on the proven off-board electronics and EasyAxis mounting heritage of the G2 while introducing WallSync, Planar's proprietary synchronization system that uses Smart Genlock to automatically align video frame timing across all connected displays without manual configuration. This eliminates tearing and frame-rate inconsistency across panel seams, a persistent challenge in competitive platforms that rely on manual genlock configuration or accept inherent sync drift. The G3 platform's video processing handles multi-source display configurations with improved throughput, and the system maintains the Planar tradition of the industry's thinnest installed profile and off-board electronics architecture that separates heat-generating components from the panel face. At 47.6 inches wide and 28.2 inches tall in landscape orientation, the LX55X2-L tiles neatly into standard multi-panel geometries. The 500-nit LED-backlit panel delivers consistent brightness suitable for professional AV environments with controlled ambient lighting, while the extreme narrow bezel continues the Clarity Matrix tradition of minimizing the visual seam between adjacent displays. Reliable off-board power supply reduces points of failure at the panel and enables redundancy configuration for 24/7 uptime in mission-critical deployments. Source synchronization across the array is automatic, reducing commissioning time significantly compared to previous-generation systems requiring manual genlock setup.

Key Features

• 55-inch Full HD 1080p LCD, landscape orientation, G3 platform
• Clarity Matrix G3 — latest generation Planar video wall architecture
• WallSync with Smart Genlock for automatic synchronized playback
• 500 nits brightness with LED backlighting
• Industry-leading narrow tiled bezel for near-seamless arrays
• Off-board electronics for reduced panel depth and improved reliability
• Redundant off-board power supply capability for 24/7 uptime
• Powerful multi-source video processing
• Panel dimensions: 47.6" W x 28.2" H
• 24/7 commercial-grade mission-critical reliability

Typical Applications

• Control rooms and operations centers requiring the latest platform technology
• Corporate and government AV refreshes upgrading from G2 to G3 infrastructure
• Broadcast master control environments requiring synchronized multi-source display
• Large-format enterprise command centers
• Security and surveillance monitoring facilities
• Higher education and research visualization centers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is new in the G3 platform compared to the G2 Clarity Matrix?

The G3 introduces WallSync with Smart Genlock, which automates video synchronization across the array without manual configuration. G3 also delivers improved video processing throughput and a refined off-board electronics architecture. The fundamental design philosophy — off-board electronics, EasyAxis mounting, industry-narrowest bezels — continues from G2.

What does WallSync Smart Genlock solve?

Without genlock, displays in a tiled array can drift out of frame-rate synchronization, causing visible tearing at panel seams when video content plays across the array. Smart Genlock detects connected displays and automatically aligns their frame timing, eliminating this artifact without requiring manual genlock signal routing or configuration.

Is the LX55X2-L backward compatible with G2 arrays?

G3 panels are not directly intermixed with G2 panels in the same array segment due to platform differences in electronics and synchronization. For mixed-generation infrastructure questions, consult Creation Networks for guidance on phased refresh strategies.

How does redundant power supply work?

The off-board power supply module can be configured with a redundant secondary module. If the primary module fails, the secondary takes over without display interruption. This is a critical feature for 24/7 control room environments where any downtime is unacceptable.

What array sizes does the 47.6" x 28.2" panel dimension support?

Standard configurations include 2x2 (approximately 95" x 56"), 3x2 (143" x 56"), 4x2 (190" x 56"), and 3x3 (143" x 85") arrays. Custom aspect ratios are achievable; provide your target array dimensions to Creation Networks for a configuration recommendation.

Does this model support ERO glass?

The LX55X2-L standard landscape model does not include ERO optically-bonded glass. If impact resistance or anti-reflection bonding is required for the installation environment, discuss ERO configuration availability with Creation Networks.
