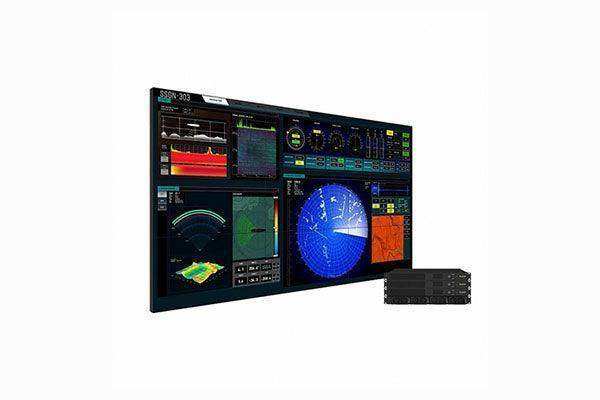

Planar LX55U-L 55"G3 Clarity Matrix 1920x1080 500 nit LCD vide wall - 998-0241-01

Product Overview

The Planar Clarity Matrix G3 LX55U-L (998-0241-01) is a 55-inch Full HD landscape LCD video wall display. This SKU is revision 01 of the G3 55-inch landscape unit, delivering 500 nits of brightness with a 3.7mm tiled bezel width. Built for 24/7 mission-critical operation, it features Leyard WallDirector software, Planar Big Picture Plus 4K processing, off-board electronics, and hot-swappable redundant power supplies. The larger 55-inch format reduces panel count in equivalent video wall configurations compared to 46-inch panels, lowering total installation cost and bezel count.

Product Description

SKU 998-0241-01 is the current revision of the 55-inch G3 landscape panel. The G3 generation of Clarity Matrix brings Leyard WallDirector software integration for streamlined installation commissioning, health monitoring, and remote management. Planar Big Picture Plus processing handles 4K signal input at up to 60Hz and enables content scaling across the entire video wall or individual zones. The 55-inch panel size is a practical choice for large video wall arrays: a 4x4 array of 55-inch panels achieves a canvas exceeding 200 inches diagonal, matching or exceeding the visual impact of smaller-panel configurations while using 30% fewer panels and bezels. Off-board electronics maintain the slim wall profile while isolating heat and servicing requirements from the display face. The 3.7mm tiled bezel creates a near-seamless image surface suitable for high-resolution content viewing at typical control room distances.

Key Features

• 55-inch Full HD (1920 x 1080) landscape LCD video wall panel
• Clarity Matrix G3 generation platform (SKU revision 998-0241-01)
• 500 nits brightness, LED backlight
• 3.7mm tiled bezel width for near-seamless canvas
• Off-board electronics — slim profile, simplified service access
• Hot-swappable redundant power supplies
• Leyard WallDirector software: installation, monitoring, management
• Planar Big Picture Plus: 4K input at 60Hz, cross-wall/zone scaling
• 4x HDMI 2.0 video inputs
• 178° full viewing angle
• 8ms response time
• 24/7 continuous operation rated
• ERO protective glass option available

Typical Applications

• Large-format control room and operations center video walls
• Corporate lobby feature walls and brand experience displays
• Broadcast studio monitor walls and production control rooms
• Higher education auditoriums and lecture capture environments
• Retail flagship stores and immersive brand environments
• Government agency command centers requiring 24/7 operational displays

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does SKU 998-0241-01 differ from 998-0221-01?

Both are 55-inch Clarity Matrix G3 landscape panels at 500 nits. SKU 998-0241-01 is a later hardware revision (revision 01 vs. 21) that may incorporate component-level updates. Core performance specifications are equivalent. Confirm with Planar or Creation Networks if specific revision differences are a concern for your deployment.

Why choose a 55-inch panel over a 46-inch panel for a video wall?

A 55-inch panel covers approximately 42% more screen area than a 46-inch panel. For equivalent video wall canvas sizes, the 55-inch format requires fewer panels and fewer bezels, reducing both installation complexity and total panel count. The tradeoff is less configuration flexibility for smaller or irregular wall shapes.

What does Leyard WallDirector software provide?

WallDirector is Planar's video wall management platform. It streamlines initial installation (panel alignment, signal assignment), provides ongoing health monitoring with fault alerting, and enables remote management of display settings across the entire wall array from a single interface.

Is a separate video wall processor required?

Planar Big Picture Plus processing is built into the off-board electronics of the Clarity Matrix G3. It handles 4K input at 60Hz and cross-wall scaling without requiring a separate third-party video wall processor for standard configurations. Complex multi-source layouts may benefit from an external processor.

What warranty does this display carry?

Clarity Matrix G3 panels are covered by Planar's standard commercial warranty. Contact Creation Networks for current warranty terms and advance replacement options for 24/7 deployment environments.
