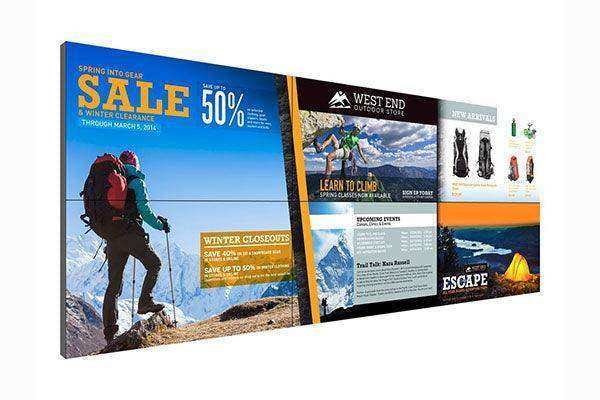

Planar LX55HDX-L-ERO 55"Clarity Matrix G2, 1920x1080 500nit, LCD video wall - 997-8700-01
Planar LX55HDX-L-ERO 55"Clarity Matrix G2, 1920x1080 500nit, LCD video wall - 997-8700-01 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX55HDX-L-ERO 55"Clarity Matrix G2, 1920x1080 500nit, L...
Product Overview
The Planar LX55HDX-L-ERO is a 55-inch Clarity Matrix G2 LCD video wall panel delivering 500-nit Full HD performance in landscape orientation with ERO optically-bonded glass for public-space durability. Designed for corporate, government, and command room video wall arrays, this panel features LED backlighting, 1920x1080 resolution, and Planar's proven EasyAxis Mounting System for precision alignment with minimal bezel gap. The off-board electronics architecture keeps thermal mass away from the display face, enabling 24/7 operation with simplified field serviceability. As part of the Clarity Matrix LX family, the LX55HDX-L-ERO consumes 17% less power than standard MX models while maintaining industry-leading visual quality.
Product Description
The Planar LX55HDX-L-ERO 55-inch Clarity Matrix G2 landscape video wall panel delivers the performance and reliability required for mission-critical tiled display installations in controlled ambient light environments. The 500-nit brightness is optimized for corporate lobbies, security operations centers, and broadcast environments where ambient light is managed for display performance. ERO (Extended Ruggedness and Optics) technology provides an optically-bonded glass front that eliminates internal reflections, enhances displayed contrast, and provides a protective surface for high-traffic public areas. Planar's EasyAxis Mounting System gives integrators the precision tools needed to align panels with the tightest possible gap between adjacent displays, resulting in a near-seamless video wall surface. The off-board electronics design means heat-generating components are rack-mounted separately, away from the display, which dramatically reduces the thermal load on the panel and extends its operational life. WallNet health monitoring with SNMP provides remote status visibility for large, distributed video wall installations. Optional Fiber Video Extension supports government and military installations requiring secure, long-distance signal extension over fiber without third-party extenders. SKU 997-8700-01 carries a 3-year limited warranty.
Key Features
- 55-inch Full HD (1920x1080) Clarity Matrix G2 LCD video wall panel
- 500-nit LED backlighting for controlled ambient light environments
- Landscape orientation (LX55HDX-L)
- Planar ERO optically-bonded glass for enhanced optics and ruggedness
- EasyAxis Mounting System for precision panel alignment
- Industry-thinnest profile — 3.6-inch installed depth
- Off-board electronics design for maximum uptime
- 17% lower power consumption vs. standard Clarity Matrix MX
- Optional Fiber Video Extension for secure government deployments
- Planar WallNet health monitoring with SNMP support
- 3-year limited warranty | SKU: 997-8700-01
Typical Applications
- Corporate lobbies and executive briefing centers
- Security and surveillance operations command rooms
- Emergency operations centers (EOC)
- Government and military operations centers
- Broadcast studios and news control rooms
- Transportation hubs: airports, rail stations, and transit centers
- Healthcare facility wayfinding and patient information walls
Technical Specifications
| Specification | Detail |
|---|---|
| Screen Size | 55 inches |
| Platform | Clarity Matrix G2 |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits |
| Backlight | LED |
| Scan Format | 1080p |
| Orientation | Landscape |
| ERO Glass | Yes (optically bonded) |
| Installed Depth | 3.6 inches (91mm) |
| Warranty | 3-year limited |
| Part Number | 997-8700-01 |
Competitor Comparison
| Feature | Planar LX55HDX-L-ERO | Samsung IFH-D 55" | LG LSCB 55" | NEC UN Series 55" |
|---|---|---|---|---|
| Brightness | 500 nit | 500 nit | 500 nit | 500 nit |
| ERO Bonded Glass | Yes (standard) | No | No | No |
| Off-board Electronics | Yes | No | No | No |
| Fiber Video Extension | Yes (optional) | No | No | No |
| Power Efficiency | 17% below MX baseline | Standard | Standard | Standard |
Frequently Asked Questions
- What is the difference between the LX55HDX-L and LX55HDX-P variants?
- The L suffix denotes landscape orientation, while P denotes portrait. Both are available with ERO glass and share the same Clarity Matrix G2 platform specifications.
- What does ERO glass provide?
- ERO (Extended Ruggedness and Optics) is Planar's optically-bonded glass front that reduces internal reflections, improves displayed contrast, and provides a protective surface layer for public space or high-traffic installations.
- How does the off-board electronics design benefit the installation?
- Off-board electronics keep heat-producing components in a rack unit away from the display panel, reducing panel thermal stress, extending service life, and making field service faster since electronics can be accessed without dismounting panels.
- What is the power efficiency advantage of the LX Series?
- Clarity Matrix LX panels consume approximately 17% less power than the standard MX Series when operating at full brightness, reducing energy costs for large video wall arrays.
- Is the Fiber Video Extension required?
- No. It is an optional accessory for government and military environments that require secure, long-distance video signal transmission over fiber optic cable.
- What is the warranty on the LX55HDX-L-ERO?
- This panel carries a 3-year limited warranty from Planar.
