Planar LX55HDX-L 55"Clarity Matrix G2 Architecture 1920x1080 500 nit - 997-8694-00

Product Overview

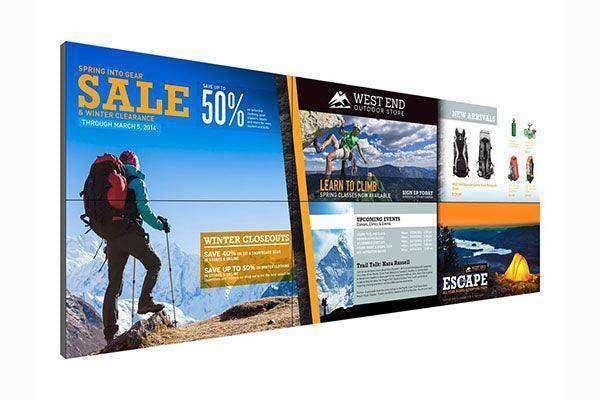

The Planar LX55HDX-L is a 55-inch Clarity Matrix G2 LCD video wall display in landscape orientation, engineered for extreme narrow-bezel performance at 500 nits with a 1.7mm tiled bezel gap that produces a near-seamless digital canvas across multi-panel arrays. The LX55HDX-L (SKU 997-8694-00) represents Planar's high-performance G2 architecture panel for landscape installations in mission-critical commercial AV environments, offering off-board electronics, EasyAxis precision mounting, and Full HD 1080p resolution. This model is the landscape-orientation standard variant within the HDX extreme narrow-bezel family, without ERO glass, making it well-suited to controlled-ambient environments where optical bonding is not required.

Product Description

The LX55HDX-L achieves a 1.7mm tiled bezel gap, the defining characteristic of the HDX extreme narrow-bezel line, which enables multi-panel arrays that read as a continuous display surface rather than a mosaic of individual screens. The 55-inch panel at 500 nits delivers sufficient brightness for controlled-ambient commercial spaces including control rooms, command centers, and corporate visualization environments with managed lighting. Planar's off-board electronics design is central to the G2 platform: all primary electronics are housed separately from the panel, reducing the installed depth to 3.6 inches, decreasing heat generation at the wall surface, and simplifying panel-level service. The EasyAxis Mounting System provides 6-axis adjustment cams that allow fine-tuning of panel position across all six degrees of freedom, enabling integrators to achieve precise pixel-to-pixel alignment across large arrays. The LX55HDX-L supports 1080p scan format, and the G2 platform's 4K input capability and 10-bit color processing ensure content quality is preserved from source to display. Extended tiled bezel widths from 1.7mm to 5.5mm are achievable depending on mounting configuration. The landscape configuration positions the wider dimension horizontally, optimizing the panel for wide-format array geometries such as 4x2, 6x2, and custom aspect-ratio configurations. This model does not include ERO glass; for installations requiring impact resistance or anti-reflection optical bonding, the ERO-equipped landscape variant should be selected.

Key Features

• 55-inch Full HD 1080p LCD in landscape orientation
• 500 nits brightness for controlled-ambient commercial installations
• 1.7mm tiled bezel gap — extreme narrow-bezel for near-seamless arrays
• Tiled bezel range 1.7mm–5.5mm depending on mount configuration
• Off-board electronics: reduced depth, heat, and panel-level complexity
• Planar EasyAxis Mounting System with 6-axis alignment cams
• 3.6-inch installed depth — industry-leading thin profile
• 4K input capability with 10-bit color processing
• 24/7 mission-critical operation rated
• HDMI and serial control connectivity

Typical Applications

• Control rooms and network operations centers (NOC)
• Security monitoring and surveillance command centers
• Corporate video walls and executive briefing centers
• Broadcast master control and production monitoring
• Government and military command visualization
• Higher education collaborative learning environments

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does the LX55HDX-L differ from the LX55HDU-L-ERO-100?

Both are 55-inch landscape G2 panels at 500 nits. The LX55HDX-L (HDX line) delivers a narrower 1.7mm tiled bezel and does not include ERO glass. The LX55HDU-L-ERO-100 adds Planar ERO optically-bonded glass for impact resistance and anti-reflection in public or touchscreen environments. Choose the HDX-L for maximum bezel narrowness in a controlled-ambient space; choose the ERO variant for durability in high-traffic or touchscreen installations.

What does off-board electronics mean in practice?

The primary circuit boards and power electronics are housed in a separate module connected to the panel by cable, rather than being built into the panel body itself. This reduces the panel's installed depth, lowers heat at the wall surface, and means that the most serviceable electronics can be accessed without removing the panel from the array.

What is the minimum tiled bezel achievable in an array?

The LX55HDX-L achieves a 1.7mm tiled bezel width at minimum. This represents the gap between active display areas of adjacent panels, which is the industry benchmark for narrow-bezel LCD video walls at this screen size.

Is the EasyAxis mounting system sold separately?

The EasyAxis Mounting System is part of the Clarity Matrix G2 ecosystem. Confirm mount hardware inclusion and array-specific mounting kit requirements with Creation Networks at time of purchase.

Can I expand a video wall built with LX55HDX-L panels later?

Yes. The Clarity Matrix G2 platform is designed for modular expansion. Adding panels to an existing array requires compatible mounting structure, power supply module capacity, and video processing capacity. Consult Creation Networks for expansion planning and compatibility confirmation.

Is this panel suitable for outdoor or high-ambient-light installations?

At 500 nits, the LX55HDX-L is designed for controlled-ambient interior environments. It is not rated for outdoor use. High-ambient-light installations should consider a higher-brightness variant or seek direct sunlight readability ratings.
