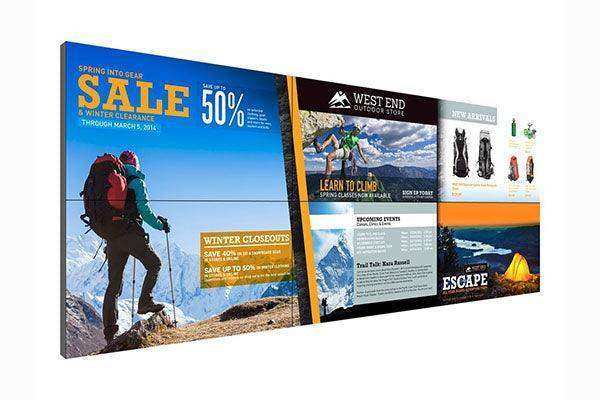

Planar LX55HDU-V-ERO 55"Matrix G2 500 nit LCD video wall VESA 997-9143-00

Product Overview

The Planar LX55HDU-V-ERO is a 55-inch Clarity Matrix G2 LCD video wall display configured with a VESA mount and Planar ERO (Extended Ruggedness and Optics) optically-bonded glass, delivering 500 nits of brightness with Full HD 1080p resolution for commercial video wall installations requiring both mounting flexibility and enhanced optical durability. As the VESA-mount ERO variant within the LX55HDU G2 family (SKU 997-9143-00), it pairs the optical protection of ERO bonding with the open-standard VESA mount pattern, enabling deployment on third-party, custom, or existing mounting structures while retaining the anti-reflection and impact-resistance benefits of the bonded glass front. This TAA-compliant model also carries the built-in 500-foot video extension and WallNet health monitoring of the full G2 platform.

Product Description

The LX55HDU-V-ERO distinguishes itself from both the landscape-only 998-1539-01 and the landscape ERO model (LX55HDU-L-ERO-100) through its combination of VESA mounting and ERO glass in a single unit. The VESA pattern enables attachment to column mounts, ceiling drops, pole mounts, and custom fabricated structures — any scenario where the Clarity Matrix EasyAxis proprietary mounting system is not the preferred or available option. The ERO optically-bonded glass eliminates the air gap between the protective front glass and the LCD panel, reducing surface reflections and significantly increasing the panel's resistance to impact and vandalism. This makes the V-ERO well-suited to public-facing installations where both mounting flexibility and surface durability are requirements. The Clarity Matrix G2 off-board electronics architecture reduces installed depth to 3.6 inches and moves primary electronics away from the panel face, improving heat management and allowing panel-level service without disturbing adjacent displays. Built-in video extension to 500 feet eliminates the need and cost of third-party signal extenders in long AV runs. A single off-board power supply module drives up to eight displays, substantially reducing rack space and power outlet requirements. Four HDMI inputs and USB connectivity support integration with a wide range of signal sources and AV control systems. TAA compliance makes this model eligible for federal and government procurement programs. WallNet integration provides SNMP-based health monitoring and alerting across the entire display array.

Key Features

• 55-inch Full HD 1080p LCD with VESA mount and ERO glass
• Planar ERO optically-bonded glass for impact resistance and anti-reflection
• 500 nits brightness with LED backlighting
• 1.7mm tiled bezel gap for near-seamless arrays
• VESA mount for compatibility with third-party and custom mounting systems
• Clarity Matrix G2 off-board electronics: 3.6" installed depth
• Built-in video extension to 500 feet — no third-party extenders needed
• Single power supply module drives up to 8 displays
• WallNet SNMP health monitoring
• 4 HDMI inputs plus USB connectivity
• TAA compliant; EU RoHS certified
• 24/7 mission-critical reliability

Typical Applications

• Public lobbies and reception areas requiring ERO impact protection with custom mount structures
• Government and federal facilities requiring TAA compliance and mounting flexibility
• Transportation terminals with column or ceiling drop mount configurations
• Retrofit video wall projects replacing panels on existing VESA mount infrastructure
• Interactive touch array installations in public spaces requiring ERO durability
• Corporate environments with architectural millwork or custom display housing

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does the LX55HDU-V-ERO differ from the LX55HDU-L-ERO-100?

Both models include ERO optically-bonded glass and share the same 55-inch, 500-nit, G2 platform specifications. The key difference is mounting: the LX55HDU-L-ERO-100 is configured for the Clarity Matrix EasyAxis proprietary landscape mount with integrated 6-axis alignment cams. The LX55HDU-V-ERO uses a standard VESA mount pattern, giving integrators freedom to use third-party, custom, or existing mount solutions. Choose the L-ERO-100 when building a new Clarity Matrix array with factory alignment hardware; choose the V-ERO when VESA mount compatibility is required.

Does VESA mounting compromise panel-to-panel alignment in a video wall array?

VESA mounting places alignment responsibility on the mount hardware and installation technique rather than the panel's integrated alignment cams. With precision VESA mounts and skilled installation, excellent alignment is achievable. For the highest-precision alignment in large arrays, the EasyAxis-equipped landscape model provides more mechanical adjustment range at the panel level.

Is the ERO glass compatible with touch overlays?

Yes. The flat, bonded ERO glass surface is suitable for IR and optical touch overlay systems. Confirm touch overlay frame compatibility with the display's bezel profile and glass thickness with your touch overlay vendor before installation.

Does TAA compliance affect which government programs this qualifies for?

TAA compliance is required for purchases under GSA Multiple Award Schedules (MAS), DoD contracts, and most other federal procurement vehicles. This model's TAA compliance makes it eligible for those programs. Verify specific contract requirements with your procurement officer.

Can the built-in 500-foot video extension replace a dedicated AV-over-IP system?

The built-in extension handles point-to-point signal routing from the off-board electronics to the panel over the distance specified. For complex multi-source, networked video distribution across a facility, a dedicated AV-over-IP or matrix switching system remains appropriate. The built-in extension eliminates the need for a separate extender device in the direct signal path to each panel.

What are the structural considerations for a VESA-mounted 74.96-lb panel?

Each panel weighs 74.96 lb. For a multi-panel array, multiply by the number of panels and add mount hardware weight to determine total structural load. Engage a structural engineer or certified integrator to confirm wall, ceiling, or structural support capacity before installation. VESA mount hardware must be rated for the full panel weight with appropriate safety margin.
