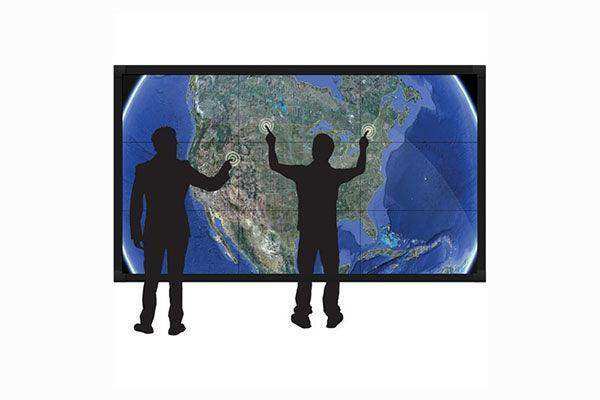

Planar LX55HDU-V 55"Clarity Matrix G2 VESA mount 500 nit LCD video wall - 997-9139-00
Planar LX55HDU-V 55"Clarity Matrix G2 VESA mount 500 nit LCD video wall - 997-9139-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX55HDU-V 55"Clarity Matrix G2 VESA mount 500 nit LCD v...
Product Overview
The Planar LX55HDU-V is a 55-inch Clarity Matrix G2 LCD video wall display configured for VESA mounting. Part number 997-9139-00 delivers 1920x1080 Full HD resolution at 500 nit brightness with a 3.7mm tiled bezel gap. The VESA configuration gives AV integrators the flexibility to mount this panel using third-party or custom mounting hardware, accommodating portrait, angled, and non-standard orientations not addressed by the dedicated EasyAxis landscape mount.
Product Description
The LX55HDU-V is the VESA-mount variant of Planar's G2 55-inch Clarity Matrix family, distinct from the LX55HDU-L-100 landscape unit by its mount compatibility. Where the -L variant ships pre-configured with Planar's proprietary EasyAxis landscape system, the -V configuration exposes standard VESA mounting points, enabling integration with third-party wall mounts, portrait orientation builds, angled installations, and custom fabricated support structures. This makes the LX55HDU-V the preferred choice when site constraints or design intent require a mounting solution outside the EasyAxis ecosystem.
The display itself is identical to other LX55HDU G2 models: LED backlight, 3,500:1 dynamic contrast ratio, four HDMI inputs plus one DisplayPort, and a 3.6-inch depth profile. The panel is compatible with Planar's content management and processing ecosystem, and the 500 nit brightness level suits deployment in environments where ambient light is managed. Dynamic contrast and precise color reproduction make the LX55HDU-V appropriate for control room monitoring, digital signage walls, and visualization environments where integrators are building custom mounting solutions.
Key Features
- 55-inch Full HD (1920x1080) LCD panel, 500 nit brightness
- Clarity Matrix G2 architecture — proven video wall platform
- VESA mounting compatible — works with third-party mounts, portrait rigs, and custom structures
- 3.7mm tiled bezel width for near-seamless multi-panel arrays
- 3,500:1 dynamic contrast ratio for deep blacks and vibrant imagery
- LED backlight with long service life and color uniformity
- 4x HDMI inputs plus 1x DisplayPort for flexible source connectivity
- Depth of 3.6" (93mm) for low-protrusion installation
- Serial control interface for RS-232 integration with control systems
- Compatible with Planar and Leyard processing and management platforms
Typical Applications
- Portrait-orientation video wall configurations requiring custom mount geometry
- Control rooms and operations centers with non-standard wall structures
- Retail environments where integrators specify third-party mounting solutions
- Hospitality installations with angled or recessed mounting requirements
- Museum and exhibit displays requiring precise custom positioning
- Corporate boardrooms with architect-specified mounting designs
- Government facilities requiring integrator-specified mount hardware
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 997-9139-00 |
| Screen Size | 55 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nit |
| Tiled Bezel Width | 3.7mm |
| Architecture | Clarity Matrix G2 |
| Mounting | VESA compatible |
| Dimensions (HxWxD) | 26.9" x 47.8" x 3.6" |
| Backlight | LED |
| Contrast Ratio | 3,500:1 dynamic |
| Scan Format | 1080p |
| Video Inputs | HDMI x4, DisplayPort x1 |
| Serial Control | RS-232 |
| Input Voltage | 120V AC / 230V AC |
| ERO Glass | Not included |
Competitor Comparison
| Feature | Planar LX55HDU-V (G2 VESA) | Samsung IA Series 55" | LG LSCB55 Series | NEC UN552 Series |
|---|---|---|---|---|
| VESA Mount Compatible | Yes | Yes | Yes | Yes |
| Portrait Capable | Yes (via VESA) | Yes | Yes | Yes |
| Tiled Bezel | 3.7mm | 3.5mm | 3.5mm | 3.5mm |
| HDMI Inputs | 4 | 2 | 2 | 2 |
| Brightness | 500 nit | 500 nit | 500 nit | 500 nit |
| Depth | 3.6" | ~4" | ~4" | ~3.9" |
| EasyAxis Precision Align | Not included (VESA) | No | No | No |
Frequently Asked Questions
- What is the difference between the LX55HDU-V and the LX55HDU-L-100?
- Both are 55-inch G2 500 nit panels with identical display performance. The LX55HDU-L-100 (997-9140-00) ships with Planar's EasyAxis landscape mounting system pre-installed, optimized for standard horizontal tiled video wall arrays. The LX55HDU-V (997-9139-00) ships with VESA mounting points exposed, giving integrators freedom to use any compatible third-party or custom mount — enabling portrait, angled, or non-standard configurations that the EasyAxis system does not address.
- What VESA pattern does this panel support?
- Contact Creation Networks or refer to the Planar LX55HDU-V installation guide for the exact VESA hole pattern. Planar publishes full dimensional drawings with VESA specifications for integrator use. The 26.9" x 47.8" x 3.6" panel dimensions should be used to plan structural load and mount spacing.
- Can this panel be installed in portrait orientation?
- Yes. The VESA mount compatibility of the LX55HDU-V makes it suitable for portrait installations. Integrators should ensure the third-party mount selected is rated for the panel weight and that the control system sends the appropriate OSD rotation commands via RS-232 or HDMI CEC.
- Does this model include ERO glass?
- No. The LX55HDU-V ships with standard glass. For ERO optically-bonded glass, see the LX55U-L-ERO (998-0230-00), which is a G3 landscape panel with ERO standard.
- Is the LX55HDU-V G2 or G3?
- The LX55HDU-V is a Clarity Matrix G2 product. For G3 architecture with HDMI 2.0, enhanced Big Picture Plus processing, and updated RPS, the G3 equivalent is the LX55X-L (landscape EasyAxis) or the LX55U-L-ERO (ERO glass, landscape).
- What control interfaces are available?
- The LX55HDU-V includes RS-232 serial control for integration with Crestron, AMX, Extron, and other control systems. HDMI CEC is also supported. This makes it straightforward to incorporate into existing control room automation infrastructure.
