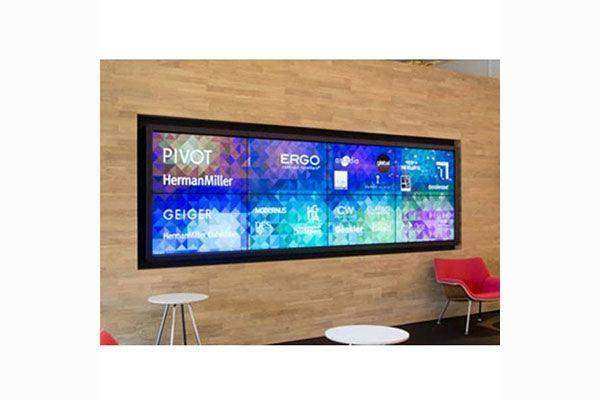

Planar LX55HDU-P-100 55"Matrix G2 500 nit LCD video wall portrait - 998-0005-00

Product Overview

The Planar LX55HDU-P-100 is a 55-inch Clarity Matrix G2 LCD video wall display configured in portrait orientation, delivering Full HD 1080p resolution at 500 nits for commercial video wall deployments requiring a vertical panel orientation. As the portrait counterpart to the landscape LX55HDU-L-ERO-100, this model (SKU 998-0005-00) is optimized for tall-format arrays, wayfinding installations, and content streams that are naturally vertical in composition. It shares the same G2 platform reliability and off-board electronics architecture as the broader Clarity Matrix G2 family.

Product Description

The LX55HDU-P-100 is mounted with the display's longer axis running vertically, making it the correct selection when array geometry calls for portrait-stacked configurations such as 1x3, 2x4, or custom tall-format video walls. The 55-inch LCD panel operates at 500 nits of brightness under LED backlighting, providing adequate luminance for controlled-ambient commercial spaces including lobbies, retail environments, and corporate interiors. The Clarity Matrix G2 off-board electronics platform moves the primary electronics away from the panel, reducing installed depth and thermal load at the wall surface, while simplifying front-access service without disturbing adjacent panels. The tiled bezel gap of the Clarity Matrix G2 family reaches as narrow as 1.7mm, maintaining visual continuity across portrait-stacked arrays. The G2 platform supports 4K input and 10-bit color processing, ensuring that content appears with accurate color depth whether the source is 1080p or higher resolution. Serial and HDMI connectivity support integration with professional AV control systems, and the universal 120V/230V input makes this panel deployable in international projects. The portrait configuration is particularly well-suited to digital signage columns, narrow retail end-cap displays, and building directory systems where vertical content flow is the design intent.

Key Features

• 55-inch Full HD 1080p LCD in portrait orientation
• 500 nits brightness with LED backlighting
• Clarity Matrix G2 off-board electronics for reduced depth and heat at panel
• Portrait-optimized for 1x3, 2x4, and custom tall-format video wall arrays
• 4K input capability with 10-bit color processing
• Industry-leading 1.7mm tiled bezel gap for near-seamless arrays
• Front-access service — adjacent panels not disturbed during maintenance
• HDMI and serial control connectivity
• Universal 120V/230V AC input
• 24/7 mission-critical reliability rating

Typical Applications

• Retail end-cap and aisle digital signage columns
• Building directory and wayfinding kiosks
• Corporate lobby accent video walls in portrait-stacked format
• Sports venue concourse displays with vertical content
• Hotel and hospitality property information displays
• Event venue and entertainment facility signage towers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the LX55HDU-P-100 (portrait) and the LX55HDU-L-ERO-100 (landscape)?

The -P-100 is factory-configured in portrait orientation with the longer panel axis running vertically. The -L-ERO-100 is configured in landscape (horizontal) orientation and adds Planar ERO optically-bonded glass for enhanced impact resistance and anti-reflection performance. For tall-format vertical arrays, select the portrait model. For wide-format horizontal arrays in high-traffic or public areas, the landscape ERO variant is more appropriate.

Can the portrait model tile with landscape panels in the same array?

Mixed orientation arrays are technically possible within the Clarity Matrix G2 ecosystem, but require careful structural design. Consult your integration partner to verify mounting compatibility and content routing for mixed-orientation configurations.

Is ERO glass available on the portrait model?

The LX55HDU-P-100 does not include ERO glass. If optically-bonded glass is required for a portrait installation — such as in a touchscreen or vandal-prone environment — consult Creation Networks about availability of an ERO portrait variant.

What content formats work in portrait orientation?

Any content formatted for a 9:16 or tall-format aspect ratio displays natively without cropping or letterboxing. Standard 16:9 content can be scaled or letterboxed. Most commercial digital signage software platforms support portrait content natively.

How many portrait panels can be driven by one power supply module?

The Clarity Matrix G2 power supply module supports up to eight displays regardless of panel orientation, maintaining the same power infrastructure efficiency as the landscape configuration.
