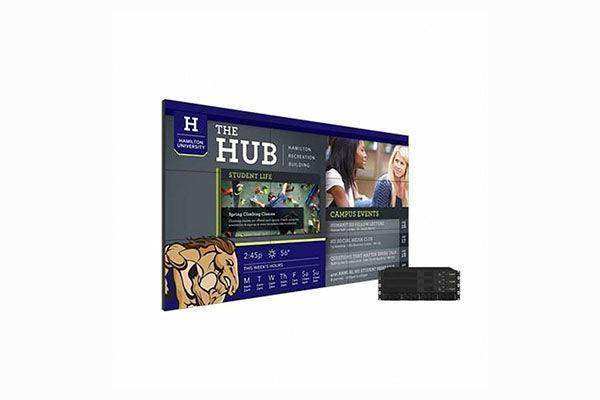

Planar LX46X-L-ERO 46" G3 Clarity Matrix 500 nit LCD video wall - 998-0326-00

Product Overview

The Planar LX46X-L-ERO (SKU 998-0326-00) is a 46-inch Clarity Matrix G3 LCD video wall display in landscape orientation with Planar ERO (Extended Ruggedness and Optics) optically bonded glass, optimized for lower power consumption in controlled ambient light environments. Part of the G3 LX series, it delivers 500 nit brightness, 1920x1080 Full HD resolution, and the full G3 platform — ultra-narrow 1.7mm bezel, off-board electronics, redundant power, and Leyard WallDirector management — while prioritizing energy efficiency over maximum brightness. Designed for 24/7 mission-critical operation.

Product Description

The LX46X-L-ERO is positioned within the G3 lineup as the energy-efficient landscape ERO option for controlled ambient light installations. While the LX46U-L-ERO-F delivers the same 500 nit brightness, the LX46X series architecture is specifically engineered to reduce power consumption — a consideration for large multi-panel arrays where aggregate power draw is a facility constraint, or for sustainability-focused procurement where energy certification matters.

This makes the LX46X-L-ERO the correct specification for 24/7 environments where ambient light is controlled (command centers, NOCs, corporate video walls, boardrooms) and where operational cost over a multi-year deployment is a factor in total cost of ownership. The ERO optically bonded glass adds impact protection and anti-reflection performance consistent with the other ERO-equipped variants in the G3 46-inch family.

The full G3 platform is retained: 1.7mm minimum tiled bezel for a near-seamless wall, off-board electronics via the Video Controller (VC) with embedded Big Picture Plus processing, n+1 hot-swap redundant RPS power supply, EasyAxis Mounting System for precise cam alignment, HDMI 2.0 and DisplayPort 1.2 connectivity, and Leyard WallDirector centralized management. Fiber video extension is available as an option.

Key Features

• 46-inch LCD panel in landscape orientation — 1920x1080 Full HD
• 500 nit brightness optimized for controlled ambient light environments
• Lower power consumption vs. LX46U — designed to reduce energy costs in large arrays
• Planar ERO optically bonded glass for anti-reflection and impact protection
• 1.7mm minimum tiled bezel width for near-seamless multi-panel arrays
• G3 off-board electronics with embedded Video Controller (VC)
• n+1 hot-swap redundant Remote Power Supply (RPS)
• Planar Big Picture Plus: 4K @ 60Hz, PiP, 4K quadview, multi-source scaling
• EasyAxis Mounting System with 6-axis cam alignment and front-service access
• HDMI 2.0 and DisplayPort 1.2 connectivity
• Leyard WallDirector web-based management software
• Optional fiber video extension
• 24/7 mission-critical rated

Typical Applications

• Network operations centers and IT monitoring rooms with 24/7 continuous operation
• Corporate command centers with controlled ambient lighting
• Government and military operations centers prioritizing energy efficiency
• Facilities with power constraints where large panel counts require lower aggregate draw
• Sustainability-focused deployments requiring energy-certified AV equipment
• Broadcast studios and production facilities with dimmed ambient environments

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What distinguishes the LX46X-L-ERO from the LX46U-L-ERO-F at the same 500 nit brightness?

The LX46X series is architected for lower power consumption compared to the LX46U. Both deliver 500 nit brightness and share the same G3 platform features, but the LX46X is the preferred specification when energy efficiency is a procurement criterion or when facility power constraints limit total panel count power draw in large arrays.

How significant is the power savings in a large video wall deployment?

In a 3x3 (9-panel) array running 24/7, even modest per-panel power reduction compounds to meaningful annual energy cost savings. For large 4x4 or larger arrays, the difference between LX and MX/LXU power profiles can justify the LX46X selection on energy budget alone.

Is the ERO glass on the LX46X-L-ERO the same as on the LX46U-L-ERO-F?

Yes. ERO is a consistent Planar platform feature: optically bonded glass that eliminates the air-gap reflection, adds structural impact resistance, and protects against cleaning agents. The ERO specification is identical across all -ERO variants in the G3 46-inch family.

Can the LX46X-L-ERO be mixed in an array with LX46U panels?

Physically and mechanically compatible, but brightness uniformity across the array depends on both models being calibrated to the same output level. For critical installations, using identical panel models throughout the array is recommended.

What video wall management software is included?

Leyard WallDirector provides web-based one-button presets, drag-and-drop source placement, and centralized health monitoring. SNMP integration allows WallDirector to report into enterprise network management platforms.

What is the warranty coverage?

Planar Clarity Matrix G3 displays carry a 3-year limited warranty for 24/7 continuous operation deployments, covering parts and labor.
