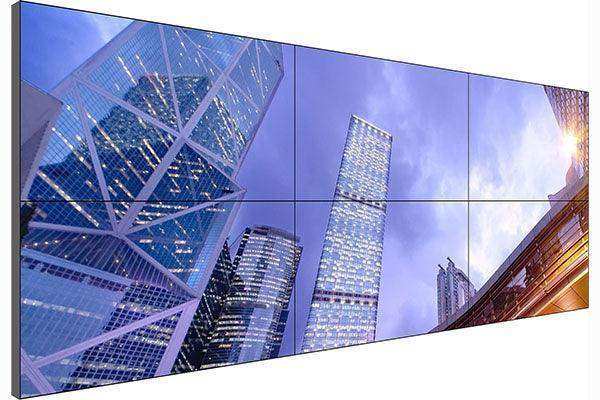

Planar LX46U-V-F 46"Clarity Matrix G3 500 nit LCD video Wall VESA - 998-0305-00
Planar LX46U-V-F 46"Clarity Matrix G3 500 nit LCD video Wall VESA - 998-0305-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX46U-V-F 46"Clarity Matrix G3 500 nit LCD video Wall V...
Product Overview
The Planar Clarity Matrix G3 LX46U-V-F is a 46-inch Full HD LCD video wall display with VESA mounting and the Planar EasyAxis flat mounting system included. The VESA-mount variant is designed for installations where the customer-specified mounting hardware or third-party mounting solutions require a standard VESA interface rather than Planar's proprietary EasyAxis wall track system. Rated 24/7, 500 nits, 3.7mm tiled bezel. SKU: 998-0305-00.
Product Description
The LX46U-V-F is the VESA mounting variant of the Clarity Matrix G3 46-inch video wall panel. It maintains all G3 platform capabilities — Leyard WallDirector software, Planar Big Picture Plus 4K processing, off-board electronics, and hot-swappable redundant power supplies — while exposing a standard VESA interface for integration with third-party mounting systems, motorized lifts, or custom fabricated structures. This makes it the preferred choice for architecturally distinctive installations, curved or angled video wall structures, mobile or adjustable mounting rigs, and projects where the AV integrator has specified a particular mounting vendor. The EasyAxis flat mounting system is included and can be used in conjunction with VESA-compatible mounting accessories. The G3 platform's 3.7mm tiled bezel width ensures the near-seamless image surface that control room and high-impact digital signage applications require, regardless of the mounting method selected.
Key Features
- 46-inch Full HD (1920 x 1080) LCD video wall panel
- VESA mounting interface for third-party mount compatibility
- Clarity Matrix G3 generation platform
- 500 nits brightness, LED backlight
- 3.7mm tiled bezel width
- EasyAxis flat mounting system included
- Off-board electronics — minimal wall depth, simplified service
- Hot-swappable redundant power supplies
- Leyard WallDirector software for installation, monitoring, management
- Planar Big Picture Plus: 4K input at 60Hz, cross-wall scaling
- 4x HDMI 2.0 inputs, 178° viewing angle, 8ms response time
- ERO protective glass option available
- 24/7 mission-critical operation rated
Typical Applications
- Architecturally custom video wall installations with specified third-party mounts
- Motorized or adjustable video wall structures requiring VESA compatibility
- Mobile or freestanding video wall rigs for event and broadcast environments
- Control rooms where integrator-preferred mounting vendors are specified
- Curved or angled video wall structures requiring custom mounting fabrication
- Design-build projects with AV/architectural mount coordination requirements
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | LX46U-V-F / 998-0305-00 |
| Generation | Clarity Matrix G3 |
| Screen Size | 46 in. diagonal |
| Mounting | VESA (with EasyAxis flat system included) |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits |
| Tiled Bezel Width | 3.7mm |
| Backlight | LED |
| Response Time | 8ms |
| Viewing Angle | 178° |
| Video Inputs | 4x HDMI 2.0 |
| Electronics Design | Off-board |
| Power Supply | Redundant, hot-swappable |
| Software | Leyard WallDirector |
| Processing | Planar Big Picture Plus (4K @ 60Hz) |
| ERO Option | Available |
| Recommended Usage | 24/7 |
Competitor Comparison
| Feature | Planar LX46U-V-F (G3) | Samsung IA046B 46" | LG LSCB012-GN 46" | NEC UN462A 46" |
|---|---|---|---|---|
| VESA Mounting | Yes (native) | Yes | Yes | Yes |
| Tiled Bezel Width | 3.7mm | 3.5mm | 3.5mm | 3.5mm |
| Brightness | 500 nits | 500 nits | 500 nits | 500 nits |
| Off-board Electronics | Yes | No | No | No |
| Redundant PSU | Yes (hot-swap) | No | No | Optional |
| 4K Input Processing | Yes (Big Picture Plus) | Yes | Yes | Yes |
| Wall Management SW | Leyard WallDirector | MagicInfo | SuperSign | NaViSet |
| ERO Glass Option | Yes | No | No | No |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What does the "-V-F" suffix indicate?
- "V" designates the VESA mounting interface variant, and "F" indicates the EasyAxis flat mounting system is included. The VESA variant is chosen when the installation requires third-party, custom, or motorized mounting hardware that uses a standard VESA bolt pattern rather than Planar's proprietary EasyAxis wall track.
- What VESA pattern does the LX46U-V-F support?
- Consult the Planar datasheet or contact Creation Networks for the specific VESA hole pattern dimensions. Planar's Clarity Matrix video wall panels use VESA patterns appropriate for their size class; confirm with your mounting vendor before ordering custom fabricated hardware.
- Is the EasyAxis system still usable on the VESA variant?
- Yes. The EasyAxis flat mounting system is included with the LX46U-V-F and can be used in conjunction with VESA-compatible mounting accessories or as an alternative mounting approach for standard flat wall installations.
- Does selecting VESA mounting affect any display performance specifications?
- No. The VESA mounting interface is a mechanical feature only. All display performance specifications — brightness, resolution, bezel width, processing, software, and power supply architecture — are identical to other LX46U G3 variants.
- Can I add ERO glass to the VESA variant?
- ERO (Extended Ruggedness and Optics) optically-bonded glass is available as a factory option on Clarity Matrix G3 panels. It must be specified at time of order; it cannot be field-added. If ERO is required in a VESA-mounted configuration, specify this requirement when ordering through Creation Networks.
