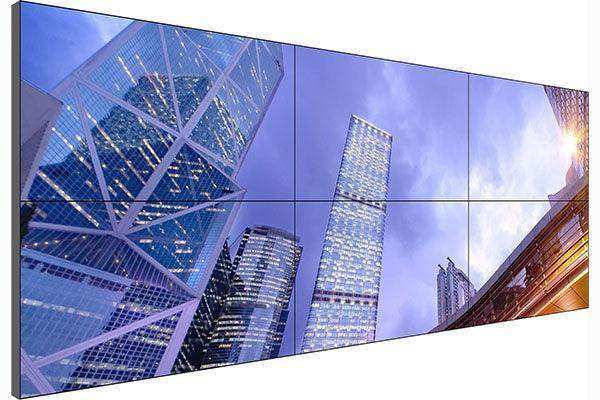

Planar LX46U-V-ERO-F 46" Matrix G3 500 nit LCD video Wall VESA - 998-0306-00
Planar LX46U-V-ERO-F 46" Matrix G3 500 nit LCD video Wall VESA - 998-0306-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX46U-V-ERO-F 46" Matrix G3 500 nit LCD video Wall VESA...
Product Overview
The Planar LX46U-V-ERO-F (SKU 998-0306-00) is a 46-inch Clarity Matrix G3 LCD video wall display with VESA mounting configuration and Planar ERO (Extended Ruggedness and Optics) optically bonded glass. Rated at 500 nits and 1920x1080 Full HD resolution, this variant is engineered for 24/7 installations where standard VESA 200x200 or compatible third-party mounting hardware is used rather than the proprietary EasyAxis Mounting System — offering maximum flexibility for custom installations, pre-existing mount infrastructure, or integrations with third-party enclosures.
Product Description
The LX46U-V-ERO-F is the VESA-mount variant within the Clarity Matrix G3 LX46U ERO family, distinguishing it from the landscape LX46U-L-ERO-F which uses the EasyAxis system. The VESA configuration provides a standard mounting interface that integrates with any VESA-compatible mounting solution — arms, enclosures, custom fabricated frames, or third-party video wall mounting systems. This makes the -V variant the correct choice when the installation site already has VESA-compatible mounting infrastructure or when architectural constraints require a non-standard mounting approach.
ERO optically bonded glass is factory-applied, eliminating the air-gap reflection that degrades image quality in ambient light and providing structural protection against impact and cleaning chemicals. The G3 platform delivers 3.7mm tiled bezel width (1.7mm minimum), off-board electronics, hot-swap redundant power supplies, Planar Big Picture Plus 4K video wall processing, and Leyard WallDirector management software — the full G3 feature set with the added VESA mounting flexibility.
Key Features
- 46-inch LCD panel with VESA mounting interface — 1920x1080 Full HD
- 500 nit brightness for controlled ambient light environments
- Planar ERO optically bonded glass — factory-installed for anti-reflection and impact protection
- VESA-compatible mounting — integrates with third-party mounts and custom enclosures
- 3.7mm tiled bezel width (1.7mm minimum across LX46U family)
- G3 off-board electronics: reduced panel depth, heat, and failure surface
- n+1 hot-swap redundant power supplies
- Planar Big Picture Plus video wall processing — 4K @ 60Hz, multi-source scaling
- Leyard WallDirector software for centralized monitoring
- HDMI 2.0 and DisplayPort 1.2 connectivity
- 24/7 mission-critical rated
Typical Applications
- Custom-fabricated video wall enclosures requiring VESA interface
- Installations integrating with pre-existing VESA-compatible mounting infrastructure
- Architectural feature walls with third-party mount systems
- Kiosk and freestanding enclosure deployments
- Rental and staging environments where non-proprietary mounting is required
- System integrators building custom video wall frames with VESA compatibility
Technical Specifications
| Specification | Value |
|---|---|
| Model | LX46U-V-ERO-F |
| SKU / Part Number | 998-0306-00 |
| Screen Size | 46 inches |
| Mounting | VESA-compatible |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nit |
| Tiled Bezel Width | 3.7 mm (1.7 mm minimum) |
| ERO Glass | Yes (optically bonded, factory-installed) |
| Backlight | LED |
| Architecture | Clarity Matrix G3 |
| Off-Board Electronics | Yes |
| Redundant PSU | Yes (n+1 hot-swap) |
| Video Processing | Big Picture Plus (4K @ 60Hz) |
| Management Software | Leyard WallDirector |
| Connectivity | HDMI 2.0, DisplayPort 1.2 |
| Operation | 24/7 |
Competitor Comparison
| Feature | Planar LX46U-V-ERO-F (G3) | Samsung IA Series 46" VESA | LG LSCB Series 46" VESA | NEC UN Series 46" VESA |
|---|---|---|---|---|
| Brightness | 500 nit | 500 nit | 500 nit | 500 nit |
| Tiled Bezel Width | 1.7 mm (min) | 3.5 mm | 1.8 mm | 3.5 mm |
| Optically Bonded Glass | Yes (ERO, factory) | Optional aftermarket | Optional aftermarket | Optional aftermarket |
| VESA Mounting | Yes (native) | Yes | Yes | Yes |
| Off-Board Electronics | Yes (G3) | No | No | No |
| Redundant Hot-Swap PSU | Yes | No | No | Optional |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What is the key difference between the LX46U-V-ERO-F and the LX46U-L-ERO-F?
- Both are 46-inch G3 500 nit ERO-equipped displays at the same price. The LX46U-V-ERO-F uses VESA-compatible mounting for integration with any standard or third-party mount system. The LX46U-L-ERO-F uses Planar's proprietary EasyAxis Mounting System, which provides factory-calibrated 6-axis cam alignment and front-service access optimized for multi-panel video wall arrays. Choose VESA when you have existing mount infrastructure or need mounting flexibility; choose EasyAxis for purpose-built multi-panel walls.
- What VESA pattern does this display use?
- Contact Planar or Creation Networks to confirm the specific VESA hole pattern for the LX46U-V-ERO-F, as it may vary by mounting bracket variant. The -V designation confirms VESA compatibility rather than EasyAxis hardware.
- Does VESA mounting affect the tiled bezel performance in a multi-panel array?
- The panel and bezel specifications are identical to the EasyAxis variant. However, achieving sub-millimeter panel-to-panel alignment across a large array typically requires the precision cam adjusters in the EasyAxis system. VESA mounting relies on the third-party mount's adjustment capability for alignment.
- Is ERO glass required for touch functionality?
- No. ERO provides protective optical bonding but is not a touch layer. Touch capability requires a separate touch overlay. The ERO glass on this model is for impact protection and anti-reflection performance only.
- Can the LX46U-V-ERO-F be used in portrait orientation?
- The VESA mounting interface supports rotation, so portrait orientation is possible depending on the third-party mount used. For purpose-built portrait configurations, the LX46U-P-ERO-F is factory-configured and tested for portrait deployment.
- What is the warranty on this unit?
- Planar Clarity Matrix G3 displays carry a 3-year limited warranty covering parts and labor for 24/7 continuous operation.
