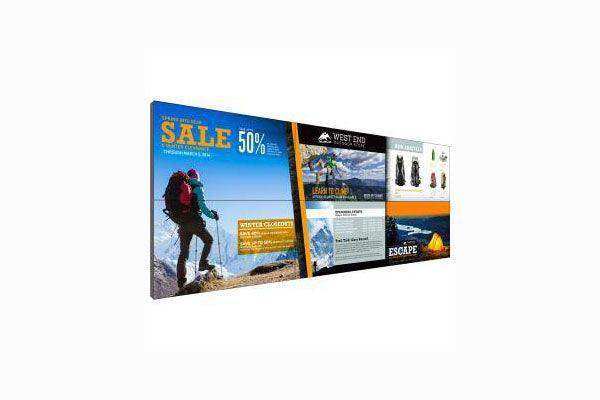

Planar LX46U-L-ERO-F 46" Matrix G3 500 nit LCD video Wall Landscape - 998-0297-00

Product Overview

The Planar LX46U-L-ERO-F (SKU 998-0297-00) is a 46-inch Clarity Matrix G3 LCD video wall display in landscape orientation with Planar ERO (Extended Ruggedness and Optics) optically bonded glass, using the EasyAxis Mounting System. Rated at 500 nits and 1920x1080 Full HD resolution, it is the landscape ERO-equipped counterpart to the VESA-mount LX46U-V-ERO-F — delivering the same panel and brightness in a configuration optimized for precision multi-panel video wall arrays with the full EasyAxis 6-axis cam alignment system and front-service access.

Product Description

The LX46U-L-ERO-F is the landscape, EasyAxis-mounted, ERO-equipped variant of the Clarity Matrix G3 LX46U family. It is the correct choice for standard landscape video wall arrays — horizontal content, 16:9 layout, widescreen tiled walls — where precision panel-to-panel alignment is essential and factory-integrated ERO protection is required.

Compared to the LX46U-V-ERO-F (VESA mount), the -L-ERO-F ships with EasyAxis mounting hardware that provides 6-axis cam adjusters for sub-millimeter panel alignment from the front of the wall. This is the critical differentiator for large tiled arrays: EasyAxis enables precise alignment across many panels without rear access, reducing installation time and ensuring uniform bezel gaps. Front-service mode allows individual panel removal and replacement from the face of the wall without disturbing adjacent displays.

ERO optically bonded glass eliminates the air-gap internal reflection that reduces contrast in ambient light, and adds structural protection against impact, vandalism, and cleaning agents. At 500 nit, the display targets installations with controlled ambient light — command centers, corporate lobbies, broadcast studios, and network operations centers. For high ambient light environments, the 800 nit MX46U-L-ERO is the appropriate upgrade.

Key Features

• 46-inch LCD panel in landscape orientation — 1920x1080 Full HD
• 500 nit brightness for controlled ambient light environments
• Planar ERO optically bonded glass — factory-installed for anti-reflection and impact protection
• EasyAxis Mounting System with 6-axis cam alignment and front-service access
• 3.7mm tiled bezel width (1.7mm minimum across LX46U family)
• G3 off-board electronics: reduced panel depth, heat, and failure surface
• n+1 hot-swap redundant power supplies for continuous 24/7 operation
• Planar Big Picture Plus video wall processing — 4K @ 60Hz, multi-source scaling
• Leyard WallDirector software for centralized monitoring and management
• HDMI 2.0 and DisplayPort 1.2 connectivity
• 24/7 mission-critical rated

Typical Applications

• Command and control rooms with landscape 16:9 widescreen content arrays
• Corporate lobby and boardroom video walls with ERO surface protection
• Broadcast studio on-set landscape video walls
• Network operations centers with multi-source operational dashboards
• Public venue installations requiring ERO impact protection in landscape format
• Retail environments with controlled lighting and wide-format brand content

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the key difference between LX46U-L-ERO-F and LX46U-V-ERO-F?

Both are 46-inch G3 500 nit ERO-equipped displays. The LX46U-L-ERO-F uses Planar's EasyAxis Mounting System with 6-axis cam adjusters and front-service access, optimized for multi-panel tiled video wall arrays. The LX46U-V-ERO-F uses a VESA mounting interface for integration with third-party or existing mount infrastructure. For purpose-built video walls requiring precise alignment across many panels, EasyAxis (L variant) is the recommended choice.

When would I choose the LX46U-L-ERO-F over the 800 nit MX46U-L-ERO?

The LX46U-L-ERO-F (500 nit) is appropriate for installations with controlled ambient lighting — command centers, corporate boardrooms, and studios where lighting levels are managed. The MX46U-L-ERO (800 nit) is specified for high ambient light environments such as retail atriums, transit concourses, or trading floors where 500 nit would be washed out.

How does EasyAxis front-service work?

EasyAxis mounting hardware includes a front-service release mechanism that allows individual panels to be disengaged and removed from the face of the wall without disturbing adjacent panels or requiring rear wall access. This is critical in installations where the wall is flush-mounted or where rear access is blocked by structure.

Does the ERO glass affect image quality?

ERO optical bonding improves image quality compared to non-bonded glass by eliminating the air gap that causes internal reflections (ghosting). Contrast appears higher and colors are more saturated, particularly in environments with ambient light.

What content management and monitoring tools are included?

Leyard WallDirector provides web-based configuration, one-button presets, drag-and-drop source placement, and centralized health status monitoring for all displays in the array. It integrates with SNMP for enterprise network management platforms.

What is the warranty coverage?

Planar Clarity Matrix G3 displays carry a 3-year limited warranty covering parts and labor for 24/7 continuous operation deployments.
