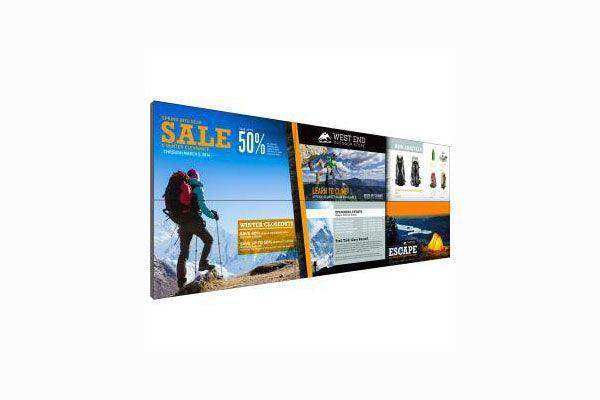

Planar LX46U-L 46"Clarity Matrix G3 500 nit, 1920x1080 LCD Video Wall - 998-0294-01

Product Overview

The Planar Clarity Matrix G3 LX46U-L is a 46" Full HD LCD video wall panel configured for landscape orientation. It is part of the same G3 generation Clarity Matrix platform as the LX46U-V and LX46U-P, sharing the same 3.7mm tiled bezel, 500-nit brightness, hot-swappable redundant power supplies, and 24/7 mission-critical reliability with a landscape-specific mounting configuration.

Product Description

The Planar LX46U-L (SKU: 998-0294-01) is the landscape-mount variant of the Clarity Matrix G3 LX46U 46" video wall panel. It delivers a 3.7mm tiled bezel width for near-seamless horizontal video wall arrays, 500-nit LED-backlit brightness, and Full HD 1920x1080 resolution in a landscape-oriented configuration. G3 generation engineering includes off-board electronics and hot-swappable redundant power supplies for continuous operation during maintenance — the defining characteristic that separates the Clarity Matrix G3 from competitive video wall panels for true 24/7 mission-critical deployments. Leyard WallDirector software provides centralized installation, monitoring, and management of the entire panel array. Planar Big Picture Plus Processing supports 4K content at up to 60Hz with scaling across the full wall or defined sections. The EasyAxis Mounting System delivers sub-millimeter precision alignment for a seamless tiled canvas. Optional Planar ERO protective glass is available.

Key Features

• 46" Full HD (1920x1080) LCD video wall panel — landscape orientation (LX46U-L)
• 3.7mm tiled bezel width for near-seamless multi-panel landscape arrays
• 500-nit brightness with LED backlight technology
• Designed and rated for 24/7 continuous mission-critical operation
• Off-board electronics and hot-swappable redundant power supplies
• Leyard WallDirector software for installation, monitoring, and management
• Planar Big Picture Plus Processing — 4K at 60Hz, full-wall and sectional scaling
• Planar EasyAxis Mounting System for precise alignment
• Optional Planar ERO protective glass available

Typical Applications

• Control rooms and NOC environments with horizontal landscape video wall layouts
• Emergency operations and public safety command centers
• Security and surveillance monitoring walls in landscape configuration
• Corporate boardrooms and executive briefing center video walls
• Broadcast studio monitor walls in landscape layout
• Transportation authority and airport operations control centers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What distinguishes the LX46U-L from the LX46U-V and LX46U-P?

All three are identical Clarity Matrix G3 LX46U 46" panels with the same specifications. The suffix indicates the mounting orientation: -L is landscape, -V is VESA-compatible, -P is portrait. Select the variant that matches your installation layout.

Why choose the Clarity Matrix G3 over competing video wall panels?

The G3 generation's off-board electronics and hot-swappable redundant power supplies are a significant differentiator. Competing panels from Samsung, LG, and NEC integrate electronics on-board, meaning component failure requires panel removal and display downtime. The LX46U-L can be serviced with the display running.

Is the LX46U-L suitable for a 3x3 video wall?

Yes. The Clarity Matrix G3 LX46U is commonly deployed in 2x2, 3x3, 4x4, and larger configurations. The EasyAxis Mounting System enables precise alignment across any array geometry, and WallDirector manages the full array.

What content resolution does the video wall support?

Built-in Planar Big Picture Plus Processing supports 4K content at up to 60Hz, with scaling across the full video wall canvas or defined sub-sections of the array.

Can Planar ERO glass be added after installation?

Planar ERO (Extended Ruggedness and Optics) protective glass is available as an optional accessory and can be configured at the time of ordering for environments where display surface protection is required.
