Product Overview

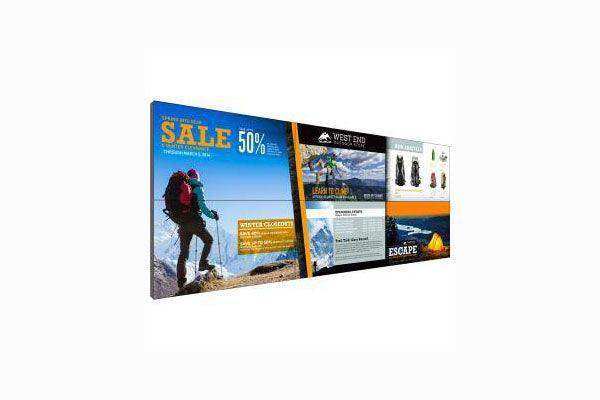

The Planar LX46HDU-V is a 46-inch Clarity Matrix G2 LCD video wall panel configured with standard VESA mount compatibility (SKU 997-9345-00). Offering 500 nit brightness, Full HD 1920x1080 resolution, and a tiled bezel as small as 1.7mm, the VESA-mount variant provides integrators and facilities with flexible third-party mounting options while retaining the full Clarity Matrix G2 performance and reliability platform. Designed for 24/7 commercial-grade operation.
Product Description
The LX46HDU-V (997-9345-00) is the VESA-mount configuration of the Clarity Matrix G2 46-inch LCD video wall panel. Where the standard G2 models ship with Planar EasyAxis Mounting hardware, the LX46HDU-V is specified for installations where the integrator or facility will use a third-party VESA-compatible mounting system. This provides procurement flexibility for projects that have existing mounting infrastructure or prefer a particular third-party mount vendor. Core display performance is identical to the G2 landscape and portrait variants: 500 nit brightness, 1.7mm minimum tiled bezel, off-board electronics architecture, built-in 500-foot video extension, single PSU capable of driving up to eight displays, Planar WallNet monitoring, and full 24/7 mission-critical reliability. The VESA-mount configuration is the preferred specification for retrofit installations and multi-vendor environments.
Key Features
- 46-inch Full HD (1920x1080) LCD video wall panel — VESA mount configuration (997-9345-00)
- 500 nit brightness for controlled to semi-ambient light environments
- Tiled bezel width as small as 1.7mm for near-seamless video wall arrays
- VESA mounting compatibility — accommodates third-party mounting systems
- Off-board electronics design — reduces display chassis depth, weight, and heat
- Built-in video extension to 500 ft (150m) — eliminates third-party extender cost
- Single PSU drives up to 8 displays — reduces rack space and outlet count
- Redundant power supply modules for continuous 24/7 operation
- Planar WallNet monitoring software with SNMP support
- 4K input with 10-bit color processing via Planar Big Picture Plus
- Optional ERO (Extended Ruggedness and Optics) glass front available
Typical Applications
- Retrofit video wall installations where existing VESA infrastructure is in place
- Multi-vendor AV environments requiring mount flexibility
- Corporate command and control centers
- Broadcast and production facility display walls
- Higher education lecture halls and auditoriums
- Government and defense information display systems
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LX46HDU-V |
| SKU / Part Number | 997-9345-00 |
| Screen Size | 46 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits (typical) |
| Tiled Bezel Width | 1.7mm (minimum) |
| Installed Depth | 3.6 inches (91mm) |
| Mounting | VESA-compatible (third-party mount) |
| Backlight | LED |
| Operation | 24/7 rated |
| Video Extension | Up to 500 ft (150m) built-in |
| Displays per PSU | Up to 8 |
| Monitoring | Planar WallNet (SNMP) |
| Color Processing | 10-bit |
| Platform | Clarity Matrix G2 |
Competitor Comparison
| Feature | Planar LX46HDU-V (G2) | Samsung IA046B | LG LSCB Series 46" | NEC UN462A |
|---|---|---|---|---|
| Screen Size | 46" | 46" | 46" | 46" |
| Brightness | 500 nit | 500 nit | 500 nit | 500 nit |
| Tiled Bezel | 1.7mm | 1.8mm | 1.8mm | 1.8mm |
| VESA Mount | Yes — VESA-dedicated SKU | VESA compatible | VESA compatible | VESA compatible |
| Off-board Electronics | Yes — reduces wall depth | No | No | No |
| Built-in Video Extension | 500 ft (150m) | Requires external extender | Requires external extender | Requires external extender |
| PSU Consolidation | 1 PSU drives 8 displays | Individual PSU per display | Individual PSU per display | Individual PSU per display |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What is the difference between the LX46HDU-V and LX46HDU-L or LX46HDU-P?
- All three are 46-inch Clarity Matrix G2 panels with 500 nit brightness and identical core display specifications. The LX46HDU-L (997-9333-00 or 997-7803-01) ships in landscape orientation with EasyAxis mounting hardware. The LX46HDU-P (997-9339-00) ships in portrait orientation with EasyAxis hardware. The LX46HDU-V (997-9345-00) is configured for VESA mounting, allowing use of third-party mounting systems.
- Can the LX46HDU-V be used with the Planar EasyAxis mounting system?
- The LX46HDU-V is the VESA-mount SKU and is intended for use with third-party VESA-compatible mounts. If you require Planar EasyAxis hardware, specify the LX46HDU-L or LX46HDU-P SKU instead.
- Does the LX46HDU-V support 24/7 continuous operation?
- Yes. The Clarity Matrix G2 platform is rated for 24/7 mission-critical operation across all mounting configuration variants, including the VESA LX46HDU-V.
- How many displays can one power supply module drive?
- A single Clarity Matrix G2 power supply module can drive up to eight displays. This significantly reduces rack space requirements and the number of AC power outlets needed in the installation.
- Is the LX46HDU-V available with the ERO glass option?
- Yes. The ERO (Extended Ruggedness and Optics) optically-bonded glass front is available as an option across Clarity Matrix G2 variants, providing additional protection for high-traffic or touch-enabled environments.
- What is the warranty on the Planar LX46HDU-V?
- Clarity Matrix G2 products typically carry a 3-year advance exchange warranty. Confirm current terms with Creation Networks at time of purchase.
