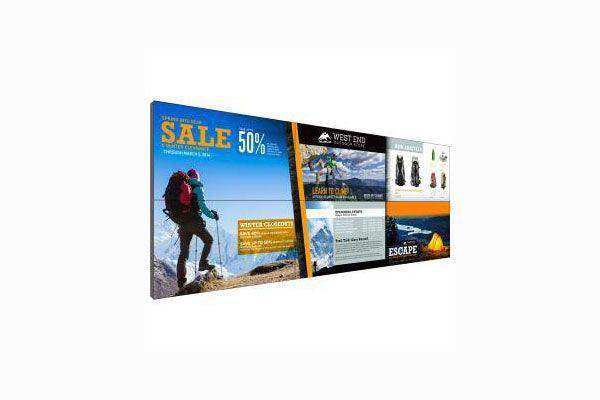

Planar LX46HDU-P 46"Clarity matrix G2 1920x1080, 500 nit LCD Portrait only - 997-9339-00
Planar LX46HDU-P 46"Clarity matrix G2 1920x1080, 500 nit LCD Portrait only - 997-9339-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX46HDU-P 46"Clarity matrix G2 1920x1080, 500 nit LCD P...
Product Overview
The Planar LX46HDU-P is a 46-inch Clarity Matrix G2 LCD video wall panel engineered for portrait-orientation installations. With 500 nits of brightness, Full HD 1920x1080 resolution, and a tiled bezel width as small as 1.7mm, it delivers seamless, high-impact visuals in 24/7 commercial-grade environments. SKU 997-9339-00 is the portrait-dedicated mounting configuration within the G2 platform, designed for applications requiring vertical content presentation in large-scale video wall arrays.
Product Description
The Clarity Matrix G2 platform represents Planar's benchmark LCD video wall architecture. The LX46HDU-P variant is factory-configured for portrait-only mounting, making it the specification of choice for architects and AV integrators building vertical digital signage columns, retail feature walls, and command center displays requiring portrait content. Off-board electronics keep the display chassis thin, light, and cool, while Planar EasyAxis Mounting provides six-axis cam adjustment for pixel-perfect panel alignment. A single power supply module drives up to eight displays, reducing rack space and AC outlet requirements. Built-in video extension reaches up to 500 feet (150 meters), eliminating third-party extender costs. Redundant power modules ensure continuous operation even during a power supply failure.
Key Features
- 46-inch Full HD (1920x1080) LCD panel in portrait-only configuration (SKU 997-9339-00)
- 500 nit brightness for controlled and semi-ambient light environments
- Tiled bezel width as small as 1.7mm for near-seamless video wall arrays
- Planar EasyAxis Mounting System — 6-axis cam adjustment, 3.6-inch (91mm) installed depth, thinnest in class
- Off-board electronics design reduces weight, heat, depth, and points of failure at the display
- Built-in video extension up to 500 ft (150m) — no third-party extenders required
- Single power supply module drives up to 8 displays
- Redundant power supply modules for uninterrupted 24/7 operation
- Planar WallNet health and status monitoring with SNMP support
- 4K input capability with 10-bit color processing via Planar Big Picture Plus
- Optional ERO (Extended Ruggedness and Optics) optically-bonded glass front available
Typical Applications
- Retail vertical feature walls and interactive brand experiences
- Corporate lobby portrait signage columns
- Command and control center portrait display arrays
- Transportation hubs (airports, transit centers) with vertical wayfinding content
- Hospitality digital menu boards and amenity displays in portrait format
- Government and military secure information display walls
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LX46HDU-P |
| SKU / Part Number | 997-9339-00 |
| Screen Size | 46 inches |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits (typical) |
| Tiled Bezel Width | 1.7mm (minimum) |
| Installed Depth | 3.6 inches (91mm) |
| Orientation | Portrait only |
| Backlight | LED |
| Operation | 24x7 rated |
| Video Extension | Up to 500 ft (150m) built-in |
| Displays per PSU | Up to 8 |
| Mounting System | Planar EasyAxis |
| Monitoring | Planar WallNet (SNMP) |
| Color Processing | 10-bit |
| Platform | Clarity Matrix G2 |
Competitor Comparison
| Feature | Planar LX46HDU-P (G2) | Samsung IA046B | LG LSCB Series 46" | NEC UN462A |
|---|---|---|---|---|
| Screen Size | 46" | 46" | 46" | 46" |
| Brightness | 500 nit | 500 nit | 500 nit | 500 nit |
| Tiled Bezel | 1.7mm | 1.8mm | 1.8mm | 1.8mm |
| Off-board Electronics | Yes — reduces wall depth and heat | No | No | No |
| Built-in Video Extension | 500 ft (150m) | Requires external extender | Requires external extender | Requires external extender |
| Portrait Configuration | Factory portrait (997-9339-00) | Field-rotate required | Field-rotate required | Field-rotate required |
| PSU Consolidation | 1 PSU drives 8 displays | Individual PSU per display | Individual PSU per display | Individual PSU per display |
| 24/7 Rated | Yes | Yes | Yes | Yes |
Frequently Asked Questions
- What makes the LX46HDU-P different from the LX46HDU-L?
- The LX46HDU-P (997-9339-00) is factory-configured for portrait-only mounting. The LX46HDU-L is configured for landscape mounting. Both are 46-inch Clarity Matrix G2 panels with 500 nit brightness and identical core performance, but the portrait variant ships with mounting hardware and electronics orientation optimized for vertical installation.
- Can the LX46HDU-P be used in a mixed portrait/landscape video wall?
- Yes. The Clarity Matrix G2 platform supports mixed portrait and landscape configurations within the same video wall array, provided compatible mounting infrastructure is used. Contact your AV integrator for multi-orientation layout planning.
- Does this panel require AC power outlets behind the display?
- No. The off-board electronics design means AC power outlets are not required directly behind the displays. A single power supply module located in a rack can drive up to eight panels, significantly reducing installation complexity.
- What is the installed depth of the Clarity Matrix G2?
- The installed depth is 3.6 inches (91mm), making it the thinnest commercial LCD video wall in its class and ideal for shallow-wall or recessed installations.
- Is the LX46HDU-P suitable for government or military secure environments?
- Yes. The optional Clarity Matrix Fiber Video Extension supports multi-mode or single-mode fiber optic cabling for longer-distance, more secure signal transmission, making it appropriate for government and DoD installations.
- What warranty does the Planar LX46HDU-P carry?
- Planar typically provides a 3-year advance exchange warranty on Clarity Matrix G2 products. Confirm current warranty terms with Creation Networks at the time of purchase.
