Product Overview

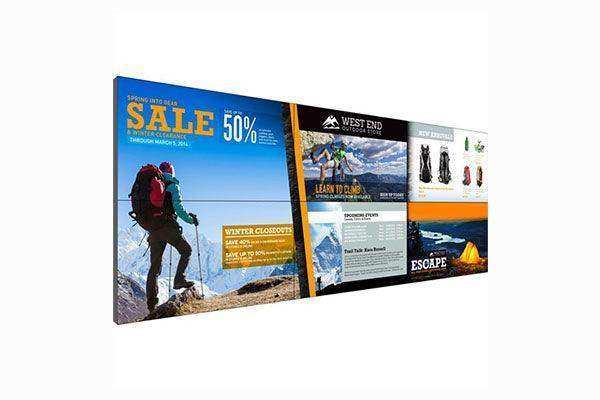

The Planar LX46HDU-L (SKU 997-7803-01) is a 46-inch Clarity Matrix G2 LCD video wall panel in landscape configuration. This earlier G2 revision features a 3.7mm tiled bezel gap, 500 nit brightness, Full HD 1920x1080 resolution, and a 3.6-inch installed depth. It ships with the Planar EasyAxis Mounting System and is rated for 24/7 commercial-grade operation. SKU 997-7803-01 is suited for installations where the 3.7mm bezel gap is acceptable and cost optimization of the G2 landscape specification is a priority.
Product Description
The LX46HDU-L (997-7803-01) is an earlier production revision of the Clarity Matrix G2 46-inch landscape panel. It retains the full G2 platform architecture — off-board electronics, EasyAxis mounting, built-in video extension, consolidated power supply — while featuring a 3.7mm tiled bezel gap rather than the 1.7mm minimum of the current production revision. For installations where a 3.7mm gap is visually or architecturally acceptable, the 997-7803-01 represents a proven, field-deployed G2 landscape configuration. Key specifications include: 500 nit brightness for standard ambient light environments, Full HD 1920x1080 resolution, 3,500:1 dynamic contrast ratio, LED backlighting, HDMI and serial connectivity, 120V and 230V AC input support, and a panel weight of approximately 48 lbs (22 kg). Dimensions are 40.2" wide x 22.7" tall x 3.6" deep. The unit holds RoHS and EU RoHS environmental certifications and carries a 3-year limited warranty.
Key Features
- 46-inch Full HD (1920x1080) landscape LCD video wall panel — SKU 997-7803-01 (earlier G2 revision)
- 3.7mm tiled bezel width — proven field-deployed G2 specification
- 500 nit brightness for standard controlled-light environments
- 3,500:1 dynamic contrast ratio
- LED backlight technology
- Planar EasyAxis Mounting System — 6-axis cam adjustment, 3.6-inch installed depth
- Off-board electronics design — reduced depth and heat
- Built-in video extension to 500 ft (150m)
- Single PSU drives up to 8 displays
- Dimensions: 40.2" W x 22.7" H x 3.6" D; weight 48 lbs
- HDMI and serial connectivity; 120V/230V AC input
- RoHS and EU RoHS certified
- 3-year limited warranty
Typical Applications
- Corporate lobby and briefing room landscape video walls
- Retail digital display walls where 3.7mm bezel is acceptable
- Hospitality digital signage and event display systems
- University and campus commons area displays
- Operations centers requiring proven G2 platform reliability
- Replacement panels for existing G2 landscape video wall installations
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LX46HDU-L |
| SKU / Part Number | 997-7803-01 |
| Revision | Earlier G2 production revision |
| Screen Size | 46 inches |
| Resolution | 1920 x 1080 (Full HD / 1080p) |
| Brightness | 500 nits (typical) |
| Tiled Bezel Width | 3.7mm |
| Dynamic Contrast Ratio | 3,500:1 |
| Backlight | LED |
| Installed Depth | 3.6 inches (93mm) |
| Orientation | Landscape |
| Mounting System | Planar EasyAxis (included) |
| Dimensions (WxHxD) | 40.2" x 22.7" x 3.6" |
| Weight | 48 lbs (approx. 22 kg) |
| Connectivity | HDMI, Serial (RS-232) |
| Input Voltage | 120V AC / 230V AC |
| Operation | 24/7 rated |
| Video Extension | Up to 500 ft (150m) built-in |
| Displays per PSU | Up to 8 |
| Certifications | RoHS, EU RoHS |
| Warranty | 3-year limited |
Competitor Comparison
| Feature | Planar LX46HDU-L (997-7803-01) | Samsung IA046B | LG LSCB Series 46" | NEC ME461 |
|---|---|---|---|---|
| Screen Size | 46" | 46" | 46" | 46" |
| Brightness | 500 nit | 500 nit | 500 nit | 400 nit |
| Tiled Bezel | 3.7mm | 1.8mm | 1.8mm | 3.5mm |
| Off-board Electronics | Yes | No | No | No |
| Built-in Video Extension | 500 ft (150m) | Requires external | Requires external | Requires external |
| EasyAxis Mounting | Yes — included | Third-party required | Third-party required | Third-party required |
| 24/7 Rated | Yes | Yes | Yes | Yes |
| Contrast Ratio | 3,500:1 dynamic | 5,000:1 | 1,400:1 | 1,300:1 |
Frequently Asked Questions
- How does SKU 997-7803-01 differ from SKU 997-9333-00 (also LX46HDU-L)?
- Both are 46-inch Clarity Matrix G2 landscape panels with 500 nit brightness. SKU 997-7803-01 is an earlier revision with a 3.7mm tiled bezel gap. SKU 997-9333-00 is the current production revision with a narrower 1.7mm minimum tiled bezel. For new projects requiring the tightest bezel, specify 997-9333-00. The 997-7803-01 is the appropriate choice for replacement panels in existing 3.7mm G2 arrays, or where cost and the wider bezel are acceptable tradeoffs.
- Is the 997-7803-01 still supported by Planar?
- As an earlier G2 revision, parts and advance exchange support timelines should be confirmed with Creation Networks. It remains a fully functional commercial-grade panel well-suited for its designated applications.
- Does the 997-7803-01 use the same power supply as other G2 panels?
- Yes. The G2 platform uses consolidated power supply modules that drive up to eight displays regardless of bezel revision, maintaining the same installation efficiency across G2 variants.
- What is the installed depth of this panel?
- The installed depth is 3.6 inches (93mm) with the EasyAxis Mounting System, consistent across G2 landscape variants.
- Can this panel be added to an existing G2 video wall array?
- Yes, provided the bezel widths are consistent across the array. Mixing 3.7mm and 1.7mm bezel panels in the same array will produce visible bezel inconsistency. This SKU is best used as a direct replacement in existing 3.7mm G2 installations.
- What warranty applies to the LX46HDU-L 997-7803-01?
- A 3-year limited warranty applies. Contact Creation Networks to confirm current advance exchange availability for this revision.
