Planar LX46HDU-L-100 46"Clarity Matrix G2 500 nit LCD Landscape only - 997-9344-00

Product Overview

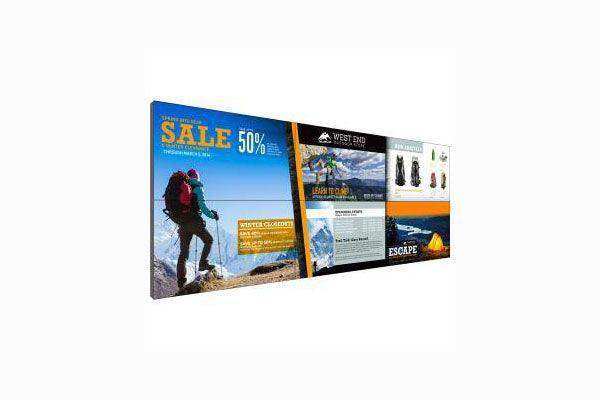

The Planar Clarity Matrix G2 LX46HDU-L-100 (997-9344-00) is a 46-inch Full HD LCD video wall display in landscape orientation. This SKU represents the standard G2 landscape unit with 500 nits brightness, 1.7mm minimum tiled bezel, and the proven off-board electronics architecture of the Clarity Matrix G2 platform. It includes 4K input capability via Planar Big Picture Plus processing and is designed for 24/7 continuous operation in mission-critical environments.

Product Description

SKU 997-9344-00 is the Clarity Matrix G2 LX46HDU-L-100 landscape panel configured with 100-series off-board electronics. The G2 platform is Planar's mature, field-proven video wall architecture with the thinnest installed depth in its class at 3.6 inches (91mm) achieved through the EasyAxis mounting system. Single power supply modules can drive up to eight displays, significantly reducing rack space and the number of required AC outlets. Built-in video extension supports cable runs up to 500 feet (150 meters), eliminating the cost and reliability concerns associated with third-party extenders. For government and defense applications, an optional Fiber Video Extension provides secure signal transport over single-mode or multi-mode fiber. Planar WallNet software provides SNMP-based health monitoring across the video wall array. 10-bit color processing and 4K input via Big Picture Plus deliver superior image quality for data-intensive control room and visualization applications.

Key Features

• 46-inch Full HD (1920 x 1080) LCD video wall panel, landscape orientation
• 500 nits brightness, LED backlight technology
• Tiled bezel widths from 1.7mm to 5.5mm
• Clarity Matrix G2 platform — off-board electronics design
• EasyAxis mounting: 3.6-inch (91mm) installed depth — thinnest available
• Single PSU drives up to 8 displays; redundant power supply modules
• Built-in video extension up to 500 ft (150m) — no third-party extenders needed
• Planar Big Picture Plus: 4K input at up to 60Hz, cross-wall content scaling
• 10-bit color processing for superior depth and uniformity
• Planar WallNet health monitoring with SNMP support
• Optional Fiber Video Extension for government/military secure environments
• ERO optically-bonded glass option for rugged/touch applications
• 24/7 mission-critical reliability rating

Typical Applications

• Control rooms and network operations centers (NOC)
• Emergency dispatch and public safety command centers
• Corporate visualization and data analytics walls
• Government and military intelligence operations
• Broadcast production and master control rooms
• Higher education lecture halls and auditoriums with large-format display needs

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does SKU 997-9344-00 differ from 997-9334-00?

Both are LX46HDU-L-100 landscape panels. SKU 997-9344-00 is a standard landscape unit. SKU 997-9334-00 is specifically documented with multi-touch ERO capabilities and is positioned for interactive video wall deployments. Confirm your application requirements before selecting.

What does the "-100" designation mean?

The "-100" indicates the 100-series off-board electronics module set included with this unit. The electronics enclosure houses the signal processing, power, and control interfaces separate from the display panel itself.

Do I need AC outlets behind each display?

No. The G2 off-board electronics design allows a single power supply module to drive up to eight panels. AC power is run to the electronics enclosure, not to each individual display, substantially reducing electrical infrastructure requirements at the wall.

Is third-party cable extension equipment required for long cable runs?

No. The Clarity Matrix G2 has built-in video extension supporting runs up to 500 feet (150 meters). This eliminates the cost, failure points, and latency associated with third-party extenders in large facility deployments.

Is the G2 platform still supported by Planar?

Yes. The Clarity Matrix G2 remains an active platform with full Planar support, spare parts availability, and WallNet monitoring software updates. It is a proven architecture deployed in thousands of mission-critical installations worldwide.
