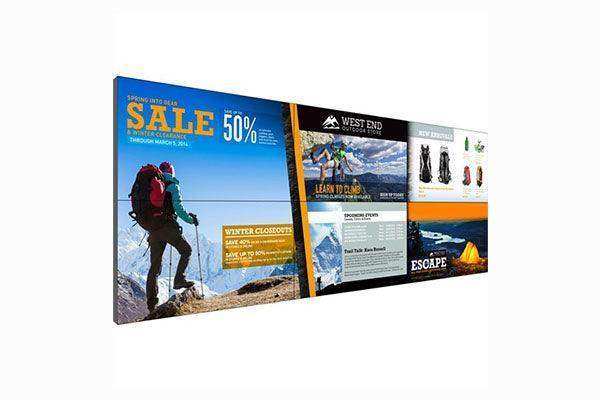

Planar LX46HDU 3D-L Top 46" Clarity Matrix G2 3D Top 3D LCD video wall - 997-8315-00
Planar LX46HDU 3D-L Top 46" Clarity Matrix G2 3D Top 3D LCD video wall - 997-8315-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX46HDU 3D-L Top 46" Clarity Matrix G2 3D Top 3D LCD vi...
Product Overview
The Planar Clarity Matrix G2 LX46HDU 3D-L Top is the upper-half panel unit in Planar's 46" passive 3D stereoscopic video wall system. Paired with the Bottom unit (997-8317-00), this Top panel completes each row of an immersive 3D video wall array capable of delivering horizontally interlaced stereoscopic content. Full HD 1920x1080 resolution, 500 nit brightness, and a 3.7mm tiled bezel width deliver clear, coherent 3D imagery in controlled ambient environments. The EasyAxis Mounting System ensures precise alignment between Top and Bottom panels—essential for 3D image integrity.
Product Description
The Planar Clarity Matrix G2 LCD video wall LX46HDU 3D-L Top unit (997-8315-00) serves as the upper panel in each paired 3D video wall row. Unlike standard 2D LCD video wall panels, the 3D-L Top unit outputs the left-eye (or right-eye) interlaced frame set in concert with the Bottom unit's opposing frame set, producing a coherent stereoscopic image when viewed with compatible passive polarized glasses.
The EasyAxis Mounting System provides sub-millimeter 6-axis panel registration, which is especially critical when aligning Top and Bottom panels for 3D coherence. The 3.6-inch ultra-thin installed depth fits wall cavities that cannot accommodate traditional rear-projection or thicker LCD systems. A 3-year limited warranty and EU RoHS certification reflect Planar's commitment to commercial-grade durability. This Top panel ships as part of a matched system; ordering both Top and Bottom units is required for each row of the 3D video wall.
Key Features
- 46" Top panel for passive 3D stereoscopic video wall arrays
- Must be paired with LX46HDU 3D-L Bottom unit per row
- Full HD 1920x1080 resolution with LED backlight
- 3.7mm tiled bezel width for minimal inter-panel gap
- 500 nit brightness optimized for controlled ambient lighting
- 3.6" ultra-thin installed depth (EasyAxis mounted)
- 6-axis cam alignment for precise 3D image registration
- Front-service access mode for maintenance without wall removal
- 24/7 commercial operation rating
- 3-year limited warranty; EU RoHS certified
Typical Applications
- Simulation and training theaters requiring immersive 3D
- Scientific visualization and medical imaging walls
- Defense and intelligence situational awareness displays
- Premium themed entertainment and 3D museum exhibits
- University research visualization laboratories
- Energy sector geological and seismic data visualization
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LX46HDU 3D-L Top (997-8315-00) |
| Role in Array | Top panel (pair with 997-8317-00 Bottom) |
| Screen Size | 46" |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nit (cd/m²) |
| Tiled Bezel Width | 3.7mm |
| Backlight | LED |
| Installed Depth | 3.6" (93mm) |
| Dimensions (H x W x D) | 22.7" x 40.2" x 3.6" |
| Weight | 48 lb |
| Operation | 24/7 rated |
| 3D Type | Passive stereoscopic |
| HDMI | Yes |
| Serial Control | Yes |
| Input Voltage | 120V / 230V AC |
| Warranty | 3-year limited |
| Certification | EU RoHS |
| Part Number | 997-8315-00 |
Competitor Comparison
| Feature | Planar LX46HDU 3D Top | Samsung IA Series | LG LSCB Series | NEC UN Series |
|---|---|---|---|---|
| Native 3D Video Wall | Yes (passive stereo) | No | No | No |
| Panel Size | 46" | 46"–55" | 46"–55" | 46"–55" |
| Installed Depth | 3.6" | ~4" | ~4" | ~4" |
| 24/7 Rated | Yes | Yes | Yes | Yes |
| EasyAxis Mounting | Yes | No | No | No |
Frequently Asked Questions
- What is the difference between the Top and Bottom units?
- The Top unit (997-8315-00) is the upper panel in each 3D row and outputs one set of interlaced stereoscopic frames; the Bottom unit (997-8317-00) outputs the complementary set. Both are required for each complete 3D video wall row.
- What 3D glasses are compatible?
- The LX46HDU 3D system uses passive polarized glasses. The specific glasses required depend on the polarization configuration of your system. Consult your AV integrator for compatible passive eyewear.
- How many Top and Bottom panels do I need for a 3x2 video wall?
- For a 3-wide by 2-tall 3D video wall, you would need 3 Top units and 3 Bottom units (6 panels total), as each column requires one Top and one Bottom panel.
- Can I use the Top panel independently without the Bottom unit?
- No. The Top and Bottom units are designed to work as a matched pair. Operating one without the other will not produce a coherent stereoscopic image.
- What warranty does the LX46HDU 3D-L Top carry?
- This panel carries a 3-year limited warranty from Planar. Extended service contracts are available through Creation Networks.
