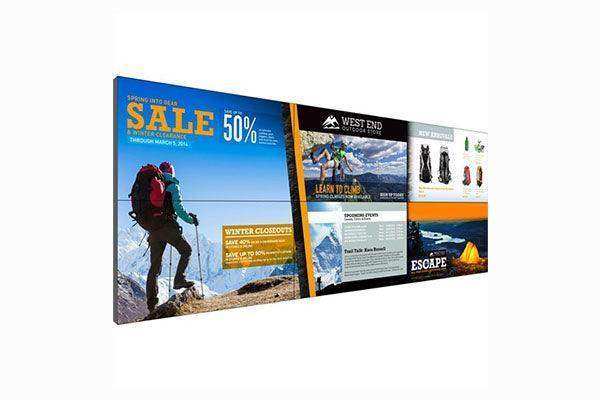

Planar LX46HDU 3D-L Bot 46"Clarity Matrix G2 3D Bot LCD video wall - 997-8317-00
Planar LX46HDU 3D-L Bot 46"Clarity Matrix G2 3D Bot LCD video wall - 997-8317-00 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Planar LX46HDU 3D-L Bot 46"Clarity Matrix G2 3D Bot LCD video ...
Product Overview
The Planar Clarity Matrix G2 LX46HDU 3D-L Bottom is the lower-half panel unit in Planar's 46" passive 3D stereoscopic video wall system. Designed for use with the corresponding Top unit (997-8315-00), this Bottom panel pairs to create a seamless 3D viewing experience without active glasses requirements at the panel level. Full HD 1920x1080 resolution, LED backlighting, and a 3.7mm tiled bezel ensure outstanding visual clarity across the combined display. Rated for 24/7 operation with an ultra-thin 3.6" installed depth.
Product Description
The Planar Clarity Matrix G2 LCD video wall LX46HDU 3D-L Bottom unit (997-8317-00) is specifically designed as the bottom panel in a two-panel passive 3D video wall stack. Each 3D video wall row requires both a Top unit and a Bottom unit working in concert to produce horizontally interlaced stereoscopic imagery. This configuration enables immersive 3D visualization for simulation, training, scientific, and premium entertainment environments without the complexity of active shutter systems.
The LX46HDU-L platform uses the Planar EasyAxis Mounting System with 6-axis cam adjustment for sub-millimeter panel alignment—critical for 3D image coherence. Standard 500 nit brightness suits controlled-lighting environments typical of simulation theaters and visualization suites. The off-board electronics architecture keeps the panel depth minimal while improving thermal management and serviceability. This Bottom panel must be ordered alongside or paired with an existing Top unit to complete each 3D video wall row.
Key Features
- 46" Bottom panel for passive 3D stereoscopic video wall arrays
- Must be paired with LX46HDU 3D-L Top unit per row
- Full HD 1920x1080 resolution with LED backlight
- 3.7mm tiled bezel width for minimal inter-panel gap
- 500 nit brightness optimized for controlled ambient lighting
- 3.6" ultra-thin installed depth (EasyAxis mounted)
- 6-axis cam alignment for precise 3D image registration
- Front-service access mode for maintenance without wall tear-down
- 24/7 commercial operation rating
- EU RoHS certified
Typical Applications
- Simulation and training theaters requiring 3D visualization
- Scientific and medical 3D data visualization walls
- Defense and government immersive situational awareness displays
- Premium themed entertainment and museum 3D installations
- University AV research and visualization laboratories
- Oil and gas geological data visualization environments
Technical Specifications
| Specification | Detail |
|---|---|
| Model | LX46HDU 3D-L Bot (997-8317-00) |
| Role in Array | Bottom panel (pair with 997-8315-00 Top) |
| Screen Size | 46" |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nit (cd/m²) |
| Tiled Bezel Width | 3.7mm |
| Backlight | LED |
| Installed Depth | 3.6" (93mm) |
| Dimensions (H x W x D) | 22.7" x 40.2" x 3.6" |
| Weight | 48 lb |
| Operation | 24/7 rated |
| 3D Type | Passive stereoscopic |
| HDMI | Yes |
| Serial Control | Yes |
| Input Voltage | 120V / 230V AC |
| Certification | EU RoHS |
| Part Number | 997-8317-00 |
Competitor Comparison
| Feature | Planar LX46HDU 3D Bot | Samsung IA Series | LG LSCB Series | NEC UN Series |
|---|---|---|---|---|
| Native 3D Video Wall | Yes (passive stereo) | No | No | No |
| Panel Size | 46" | 46"–55" | 46"–55" | 46"–55" |
| Installed Depth | 3.6" | ~4" | ~4" | ~4" |
| 24/7 Rated | Yes | Yes | Yes | Yes |
| EasyAxis Mounting | Yes | No | No | No |
Frequently Asked Questions
- Do I need to order both a Top and Bottom unit for each row?
- Yes. Each 3D video wall row requires one LX46HDU 3D-L Top (997-8315-00) and one LX46HDU 3D-L Bot (997-8317-00). The two panels work in tandem to produce passive stereoscopic 3D imagery.
- What type of 3D technology does this system use?
- The LX46HDU 3D system uses passive stereoscopic technology, delivering horizontally interlaced left-eye and right-eye frames. Viewers use passive polarized glasses compatible with the display system.
- Is 500 nit brightness sufficient for my environment?
- 500 nits is appropriate for controlled ambient lighting environments such as simulation theaters, visualization labs, and darkened conference rooms. Brighter environments may require supplemental light control measures.
- Can these panels be used in a standard (non-3D) video wall configuration?
- The LX46HDU 3D-L panels are purpose-designed for the 3D configuration. For standard 2D video wall deployments, Planar's MX55HDU series provides superior brightness and bezel performance.
- What is the warranty on this panel?
- The Clarity Matrix G2 LX46HDU carries a 3-year limited warranty. Contact Creation Networks for extended warranty and service contract options.
