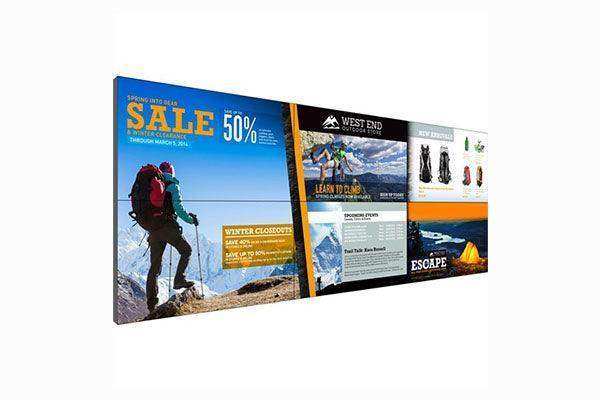

Planar LX46HDU 3D-L 46" Clarity Matrix G2 3D Top 3D LCD video wall Landscape - 997-8316-00

Product Overview

The Planar LX46HDU 3D-L is a 46-inch Clarity Matrix G2 LCD video wall display engineered for commercial environments demanding passive 3D stereoscopic content delivery alongside conventional 2D programming. Configured in landscape orientation, this panel delivers Full HD 1080p resolution at 500 nits of brightness through an LED-backlit panel with a 3.7mm tiled bezel gap for near-seamless multi-panel arrays. The LX46HDU 3D-L carries SKU 997-8316-00 and represents the standard-brightness variant of the Clarity Matrix 46-inch 3D landscape family, suitable for showrooms, simulation centers, and visualization suites where immersive passive 3D is a primary requirement.

Product Description

The Planar LX46HDU 3D-L integrates Planar's EasyAxis Mounting System, achieving an installed depth of just 3.6 inches (93mm) while providing 6-axis adjustment cams that allow integrators to achieve precise panel-to-panel alignment across large multi-display arrays. The off-board electronics architecture separates heat-generating components from the display panel, reducing depth, weight, and thermal load at the wall surface. Passive 3D technology is implemented via a patterned retarder on the panel glass, allowing viewers to use lightweight passive glasses without battery or sync requirements. The panel supports 120V and 230V AC input, making it deployable in both North American and international installations without additional power conditioning. The 3.7mm tiled bezel width minimizes visual interruption across array seams, maintaining content continuity in multi-panel configurations. Serial control and HDMI connectivity are standard, enabling integration with professional AV control systems. The display carries EU RoHS environmental certification and a 3-year limited warranty, reflecting Planar's commercial-grade quality standards.

Key Features

• 46-inch Full HD 1080p LCD panel in landscape orientation
• Passive 3D stereoscopic capability via patterned retarder glass
• 500 nits brightness with LED backlighting for controlled-light environments
• 3.7mm tiled bezel gap for near-seamless video wall arrays
• Planar EasyAxis Mounting System with 6-axis alignment cams
• Ultra-thin installed depth of 3.6 inches (93mm)
• Off-board electronics design reduces heat and weight at the wall
• HDMI and serial control connectivity for AV system integration
• Universal 120V/230V AC input for domestic and international deployment
• EU RoHS certified; 3-year limited warranty

Typical Applications

• Product visualization showrooms requiring passive 3D content
• Simulation and training centers
• Medical imaging and anatomical visualization suites
• Corporate briefing centers with stereoscopic presentation requirements
• Museum and exhibit installations with immersive 3D displays
• Higher education lecture halls with 3D scientific visualization

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What makes this display a 3D video wall panel?

The LX46HDU 3D-L incorporates a patterned retarder directly on the panel glass. When paired with compatible passive 3D glasses and a 3D signal source, viewers experience full stereoscopic 3D without active shutter glasses or emitters.

Can this display be used for standard 2D content as well?

Yes. The panel operates in standard 2D mode by default. The passive 3D capability is activated when 3D content is delivered via a compatible signal source; no hardware reconfiguration is required.

How many panels can be tiled in a single array?

The Clarity Matrix G2 system supports large-format tiled arrays. Array size is limited by signal distribution and structural considerations rather than the panel itself. Common configurations include 3x3, 4x4, and custom aspect-ratio arrays.

Is the EasyAxis mounting system included?

The EasyAxis Mounting System is integrated into the Clarity Matrix G2 ecosystem. Mounting hardware and compatibility should be confirmed with your integrator or Creation Networks at time of purchase.

What is the difference between this model and the LX46HDU 3D-L-100?

The LX46HDU 3D-L (997-8316-00) is the standard variant. The -100 suffix variant denotes a configuration difference (typically related to power supply module bundling or regional specification). Core panel performance specifications are identical.

Does this panel support 24/7 continuous operation?

The Clarity Matrix G2 platform is engineered for 24/7 mission-critical operation. The off-board electronics design and redundant power supply options support continuous uptime in control room and operations center deployments.
