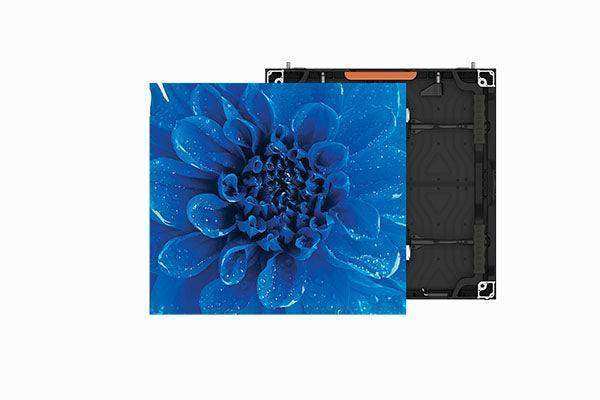

Planar® Luminate™ Pro Series LPO-5.9 is an outdoor high-brightness LED video wall display with a 5.9mm pixel pitch designed for temporary events and fixed installations even in direct sunlight. It offers easy front or rear-service access to electronics for deployment versatility and magnetically-attachable cabinets with a quick-lock system to support fast, single-person handling.
| Specification: |
Detail: |
| Model |
LPO-5.9 |
| Pixel Pitch (mm) |
5.95 |
| LED Drive Method |
Constant current drive |
| Cabinet Size (W x H x D) |
19.69” x 19.69” x 3.03” (500 x 500 x 77 mm) |
| Cabinet Diagonal |
27.83" (707.10mm) |
| Cabinet Resolution |
84x84 |
| Pixel Density (/m2) |
28,224 |
| Modules/Cabinet (WxH) |
2x2 |
| Module Resolution |
42x42 |
| Module Size (W x H) |
250 x 250 mm |
| Power Consumption, Maximum (watts) |
180 |
| Line Voltage |
100~240v AC, 50/60Hz |
| Cabinet Weight (per display) |
≤ 17.64lbs |
| Brightness Max, Calibration On (cd/sq) |
5500 |
| Supported Frame rate |
50Hz/60Hz |
| Color Temperature(K) |
3000-10000 adjustable |
| Contrast Ratio |
3000:1 |
| Viewing Angle (50% of brightness) |
>150° horizontal; >130° vertical |
| Front Access Install/Service |
Yes |
| Refresh Rate |
1920/3000 |
| LED Lifetime (Half Brightness) |
100,000 hours |
| Operating Temperature/Humidity (degrees F/C) |
-40° to 50° C | -40° to 122° F (10-80% RH, non-condensing) |
| Storage Temperature/Humidity (degrees F/C) |
-40° to 60° C | -40° to 140° F (10-85% RH, non-condensing) |
| Certifications |
EMC CLASS ACCC\CE \FCC\CB\cTUVus\ROHS2.0\REACH |
| IP Rating |
65 |
