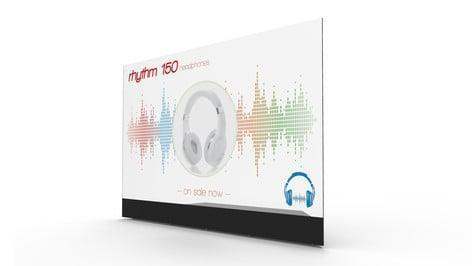

Planar LO552 55" LookThru Transparent OLED Display - 998-1483-00

With a virtually frameless glass design, the Planar® LookThru® LO552 OLED Display is a 55-inch transparent display with 38 percent light transmissivity that showcases dynamic information on a transparent surface glass eliminating the need for a back light or enclosure and creating truly see-through installations. To help display the glass, the electronics box on the Planar LookThru LO552 is set at a 90-degree angle. This display can be mounted in both portrait and landscape modes, can be table-mounted, ceiling-mounted or tiled to create large, eye-catching video wall arrays. Vibrant colors at 120 percent National Television System Committee (NTSC) performance plus wide viewing angles with no off-axis contrast or brightness limitations lends to improved perceived contrast when compared to traditional large form cover glass, making the display more readable and impactful to the user - even in bright public venues. The Planar LookThru LO552 also features Planar® ERO-OLED™ (Extended Ruggedness and Optics™-Organic Light Emitting Diode) technology featuring Corning® Gorilla® Glass for enhanced durability and optics.

Applications

• Retail merchandising
• Corporate displays
• Museum exhibits
• Award/trophy cases
• Trade show exhibits
• Architectural applications

Features

• 55” transparent OLED display with Full HD resolution
• Self-emitting display eliminates need for a backlight or enclosure
• Can be table mounted, ceiling mounted and tiled in landscape or portrait
• Features Planar ERO-OLED for high durability and contrast
• Standard 90 degree electronics box

Specifications

• Product Name: LO552
• Planar Part Number: 998-1483-00
• Viewable Size: 55" diagonal
• Display Active Area (WxH): 47.6" x 26.8" (1209.6 x 680.4 mm)
• Display Inactive Area (Left/Right/Top/Bottom): 0.3"/0.3"/0.3"/3.8" (6.9/6.9/6.9/95.5 mm)
• Aspect Ratio: 16:9
• Display Resolution: 1920 x 1080, full HD
• Display Type: Active Matrix Organic Light-Emitting Diode (AMOLED)
• Surface Treatment: ERO (Extended Ruggedness and Optics) using Corning® Gorilla Glass®
• Full Screen White Brightness: 150 cd/m² (typ.)
• Peak White Brightness: 400 cd/m² (typ.)
• Brightness, Uniformity: 20%
• Transmissivity: 38%
• Orientation:
  • Landscape
  • Portrait
  • Inverted (Ceiling Mount)
  • Tabletop
  • Tiled
• Viewing Angle (typ): 178° H,V
• Contrast Ratio (typ): > 100k:1
• Response Time (typ): < 1 ms
• Palette: 1.073 billion colors (10-bit)
• Color Gamut: 120% of NTSC
• Pixels per inch (PPI): 40
• Pixel Pitch: 0.63 mm
• Frame Rate: 120Hz
• Video Inputs:
  • (4) HDMI
  • (1) DisplayPort
• External Connections:
  • LAN RJ45
  • RS232
  • IR
  • Keypad
  • AC Power In
  • USB-A
  • USB-B
• Audio Output: PC Line Out, S/PDIF
• Dimensions (WxHxD): 48.2" x 31.4" x 11.8" (1223.4 x 796.5 x 300.8 mm)
• Weight: 70.0 lbs (31.8 kg)
• Power Requirements: 100 to 240VAC
• Power Consumption (typ): 97W (< 1W standby)
• Power Consumption (max): 300W
• Product Approvals: NRTL Listed, FCC-Class A, CE Class A, WEEE, RCM, PSE, EN60950 and CISPER22/2010, RoHS
• Mount: No
• Control and Monitoring:
  • IR
  • RS-232
  • LAN
  • Keypad
• Operating Temperature: 0º to 40ºC
• Humidity: 20-95% RH non-condensing
• Options/Features:
  • Fanless
  • TAA-Compliant
  • Tiling/Video Wall configurations possible through optional external processor
  • Standard mount
• Warranty: 1 year
