Planar LN Series 3.9mm Outdoor LED Cabinet
Product Overview

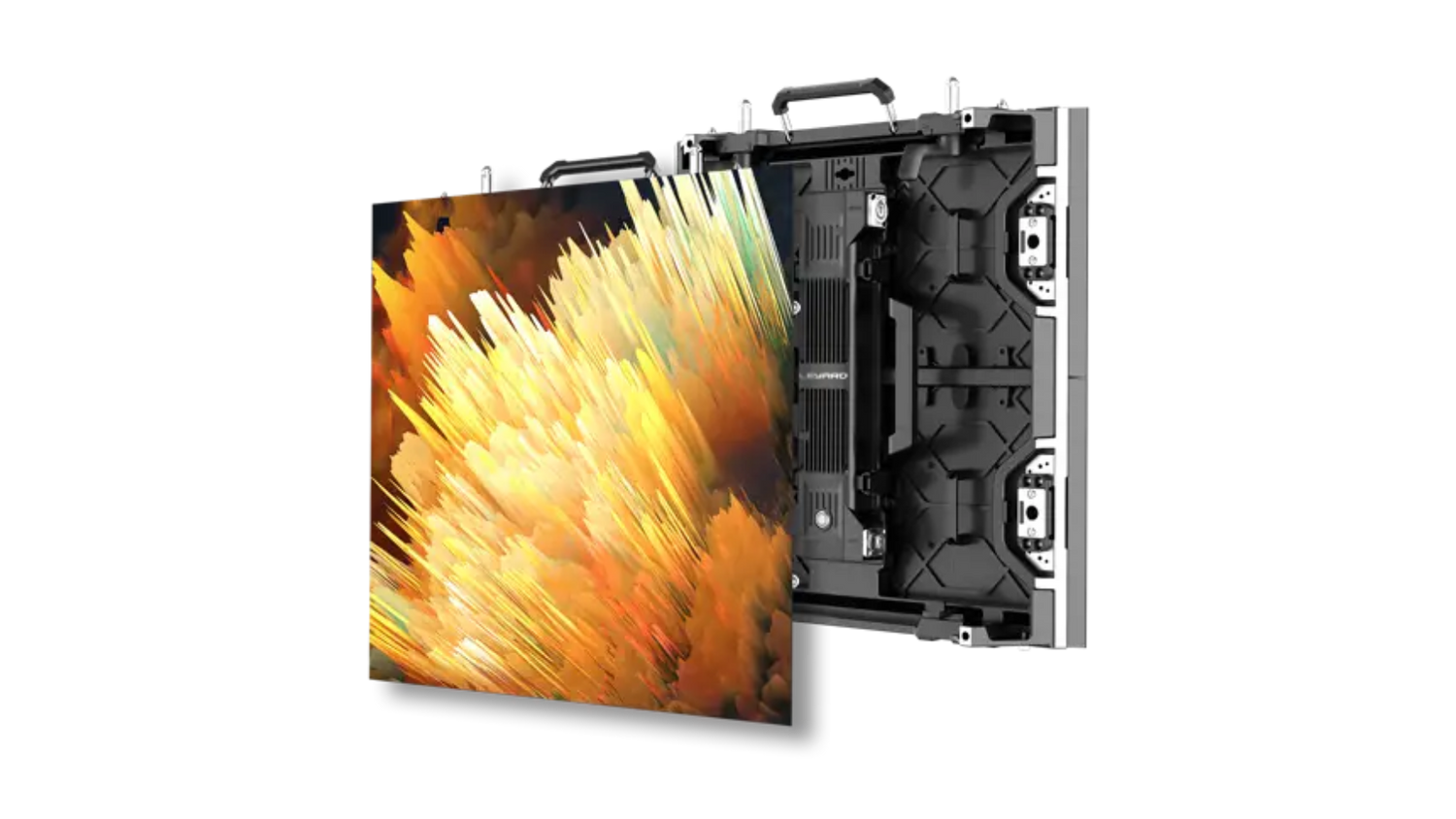

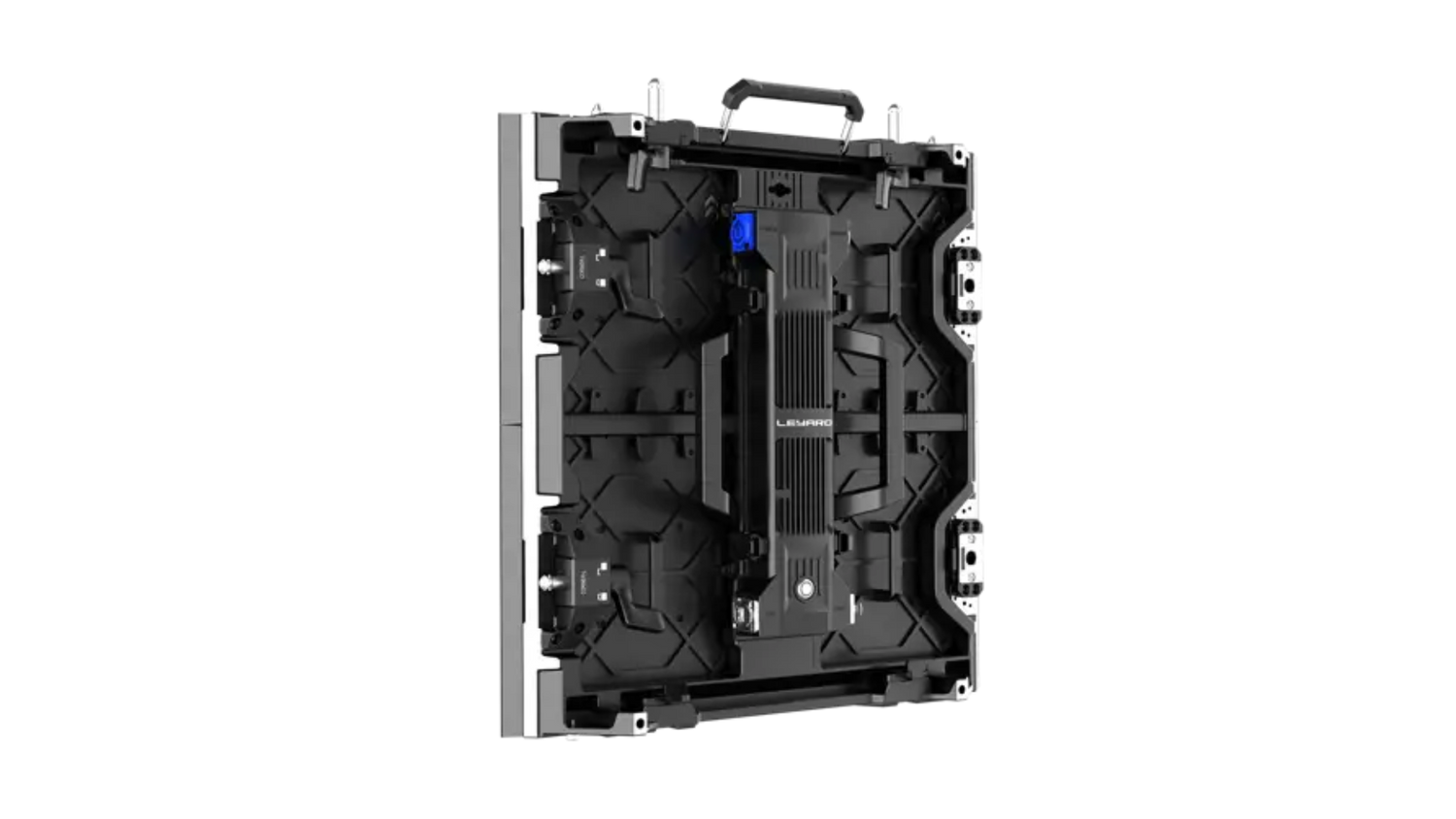

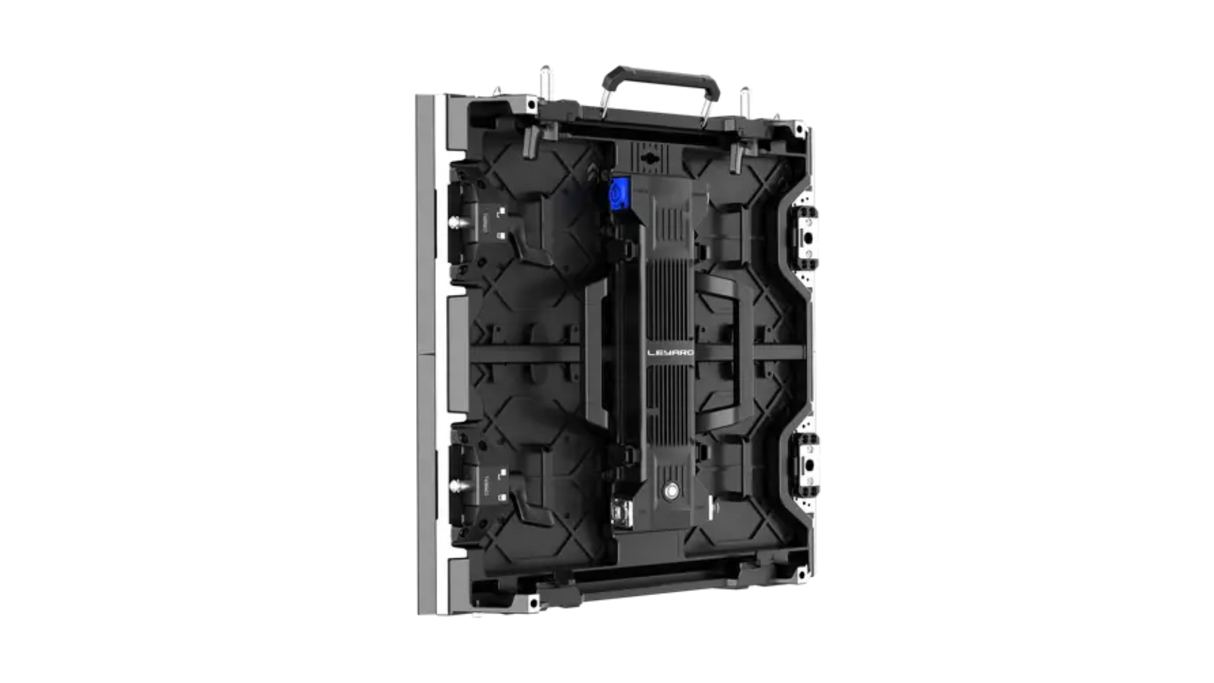

The Planar LN Series is a Leyard rental and staging LED video wall designed for fast deployment at events. This 3.9mm outdoor cabinet (LN Series 3.9mm, outdoor, 500x500mm, 128x128 resolution) combines a lightweight modular structure with quick assembly hardware for exhibitions, concerts, conferences and sporting events. As part of the LN Series, it supports curved and right-angle configurations and can be hung or ground-stacked.
Product Description
The LN Series is a versatile and flexible rental LED display solution with a user-friendly modular design and lightweight structure that makes it quick to assemble and dismantle for temporary installations. This 3.9mm outdoor LED cabinet measures 500x500mm with a native 128x128 module resolution. LED cabinets adjust between -10 and +10 degrees to form convex or concave video walls, and they can be hung or stacked depending on the venue. For unique layouts, the LN Series offers 45-degree beveled cabinet designs for 90-degree right-angle and cube builds (LN-R) as well as curved cabinet designs (LN-C) for waves and circular arrays. The series spans 1.9, 2.6, 2.9, 3.9 and 4.8mm pixel pitches across both indoor and outdoor models, with up to IP65 weather protection on outdoor configurations. Cabinets are engineered for the repeated transport and reconfiguration demands of rental and staging work. The LN Series carries the Planar 2-Year Standard LED Warranty. Creation Networks supplies the LN Series with the processing, rigging and spare modules rental operators need inside our Planar collection. Because event builds vary in size and shape, our team can specify cabinet counts and accessories for your production.
Key Features
- Outdoor rental cabinet — This 3.9mm cabinet is configured for outdoor rental and staging use with a 128x128 module resolution.
- Cabinet dimensions — Each cabinet measures 500x500mm, sized for hanging or ground-stacking in temporary builds.
- Lightweight modular design — The structure is built for quick assembly and dismantling between events.

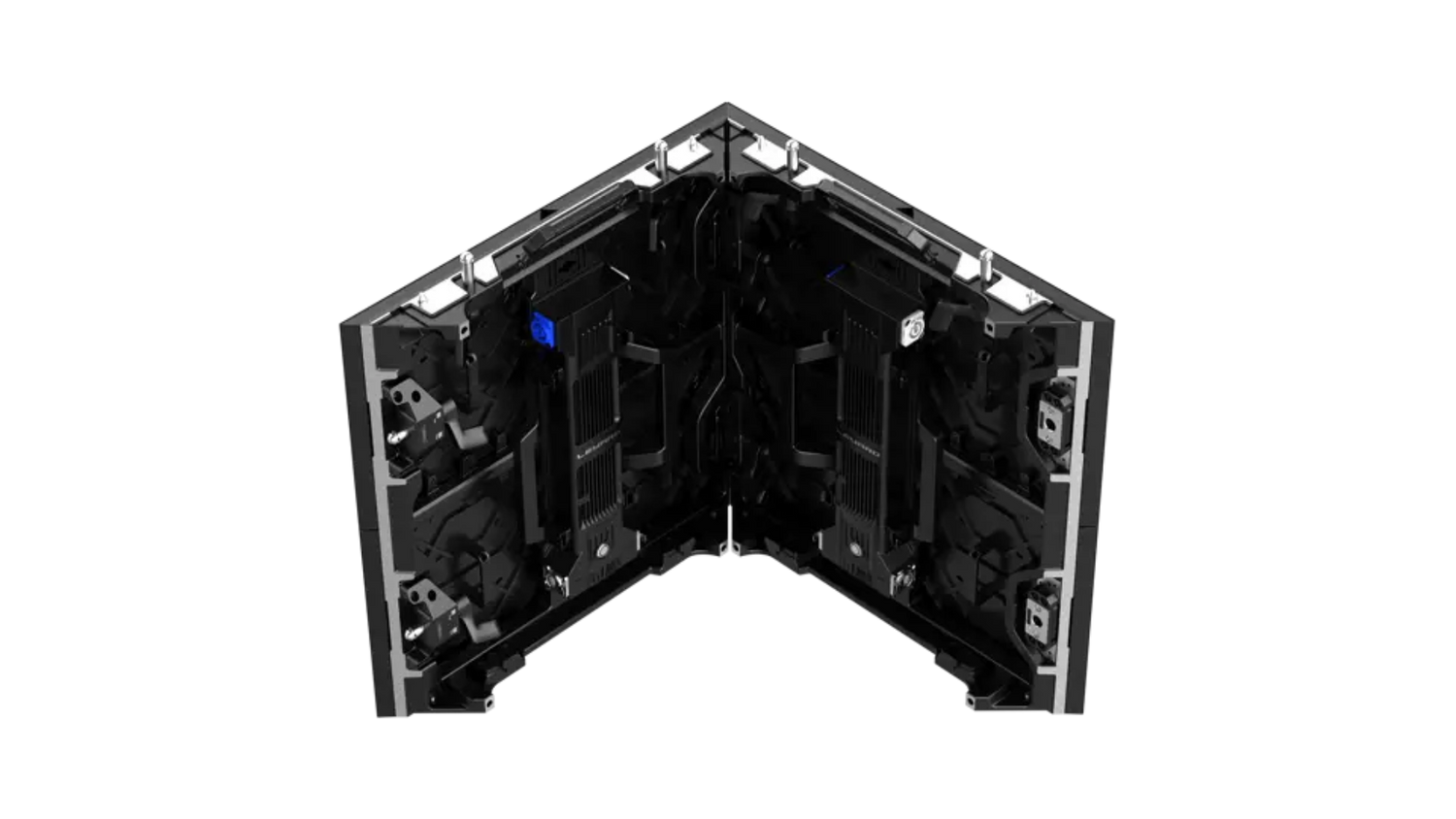

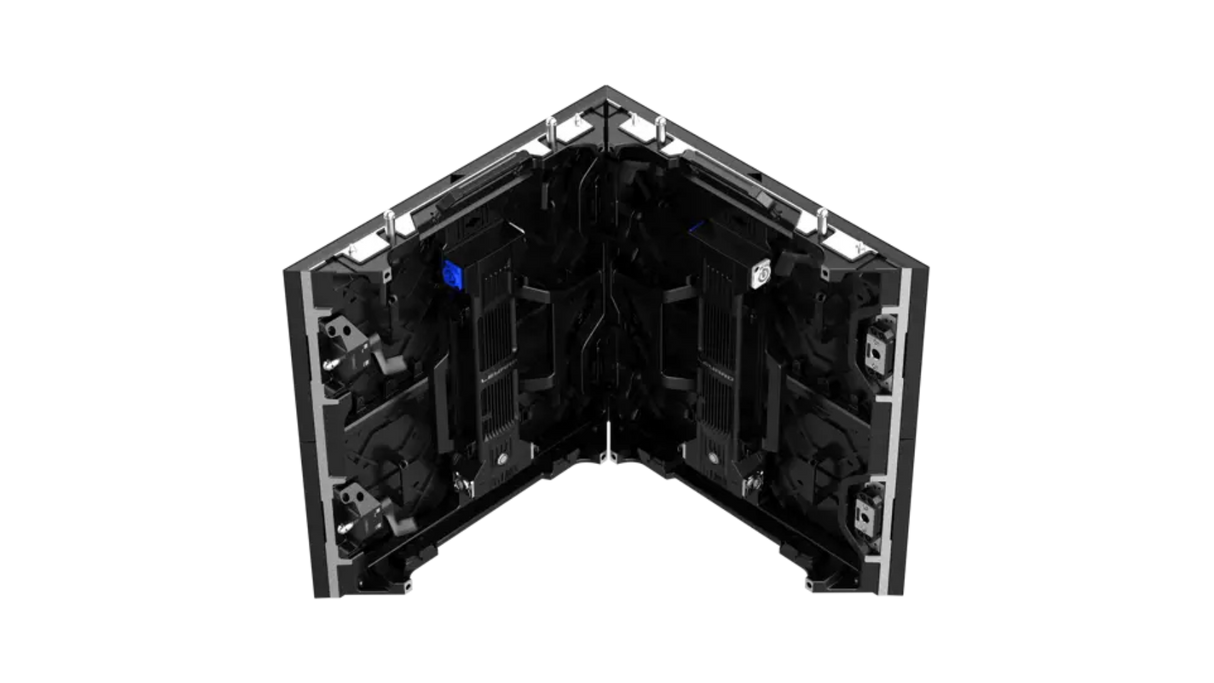

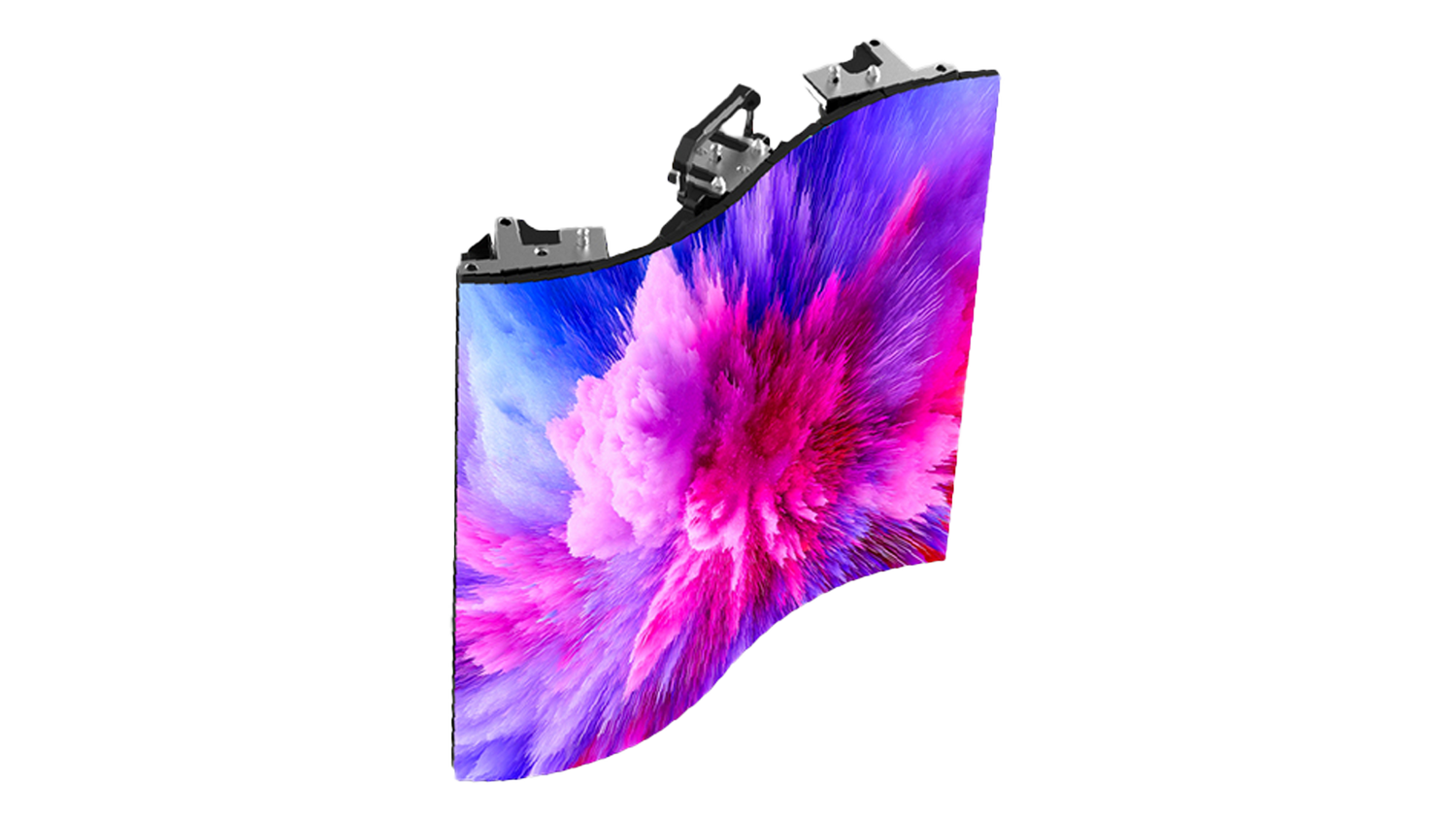

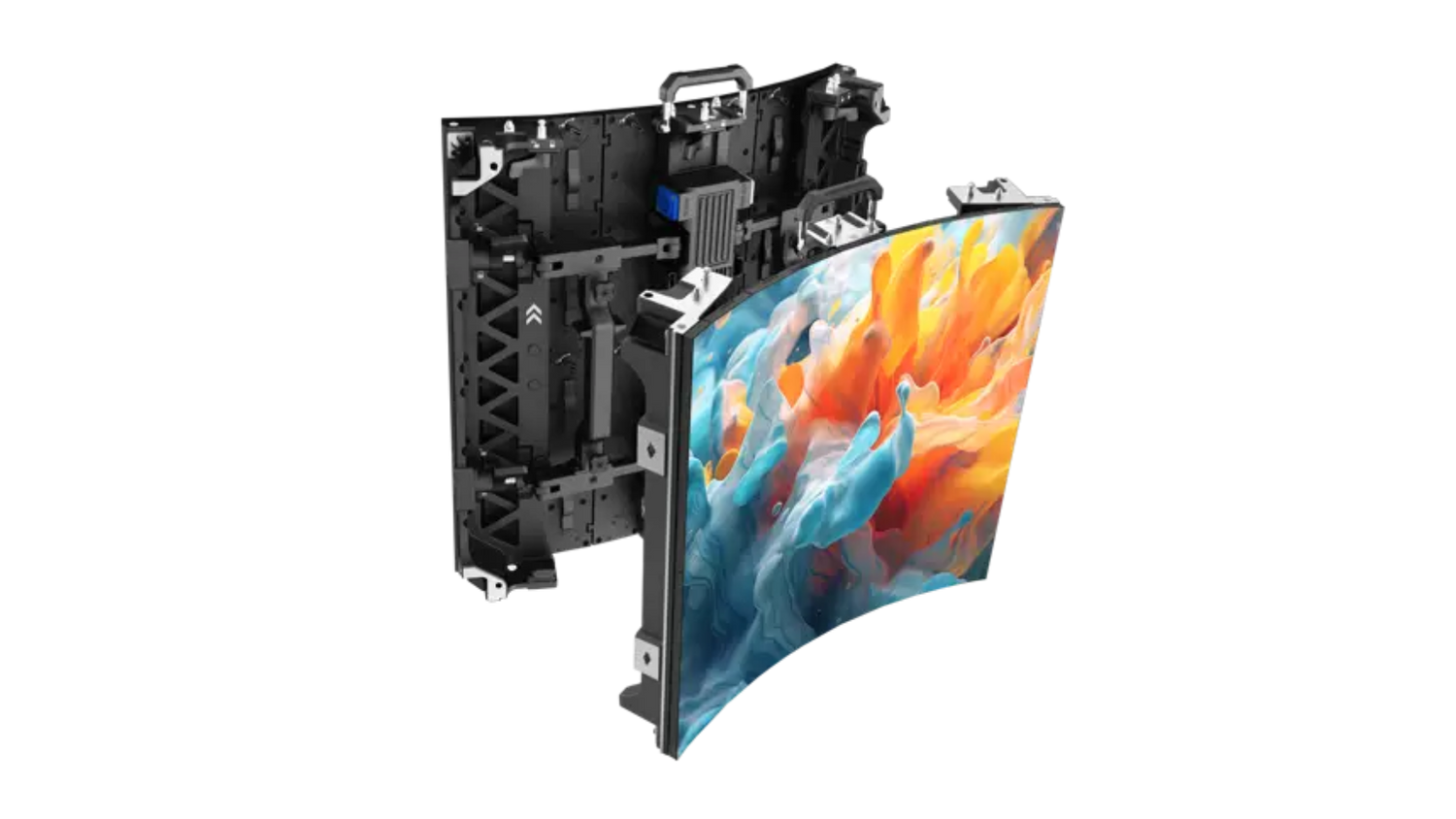

- Curve and angle support — Cabinets adjust -10 to +10 degrees for convex or concave walls, with LN-R right-angle and LN-C curved options.
- Deployment flexibility — The LN Series spans 1.9 to 4.8mm pitches across indoor and outdoor models with up to IP65 weather protection.
- 2-Year Standard LED Warranty — The display is protected by the Planar 2-Year Standard LED Warranty.
Typical Applications
- Concerts, festivals and live events
- Exhibitions, trade shows and conferences
- Sporting events and arena productions
- Corporate general sessions and keynotes
- Outdoor staging and temporary outdoor signage
Technical Specifications
| Series | Planar LN Series (Leyard) |
| Model / Configuration | LN Series 3.9mm, outdoor, 500x500mm, 128x128 resolution |
| Display Type | Outdoor rental & staging LED video wall cabinet |
| Pixel Pitch | 3.9mm |
| Cabinet Size | 500x500mm |
| Module Resolution | 128x128 |
| Available Pitches (Series) | 1.9, 2.6, 2.9, 3.9 and 4.8mm |
| Curve / Angle | -10 to +10 degrees; LN-R right-angle and LN-C curved options |
| Environmental Rating | Up to IP65 (outdoor models) |
| Warranty | Planar 2-Year Standard LED Warranty |
| SKU | 998-3904-00 |
Frequently Asked Questions
Is this LN Series cabinet for indoor or outdoor use?
This cabinet is configured for outdoor use. The LN Series offers both indoor and outdoor models.
Can the LN Series build curved walls?
Yes. Cabinets adjust -10 to +10 degrees for convex or concave walls, and LN-R and LN-C options enable right-angle and curved builds.
Is the LN Series suitable for rental fleets?
Yes. Its lightweight modular design is built for repeated assembly, transport and dismantling in rental and staging operations.
What pixel pitches are available?
The LN Series spans 1.9, 2.6, 2.9, 3.9 and 4.8mm pixel pitches. This cabinet ships in the configuration listed above.
Does this include rigging and processing?
Processing, rigging and spares are specified per build. Contact Creation Networks to confirm the complete package.
What warranty applies?
The LN Series carries the Planar 2-Year Standard LED Warranty.
