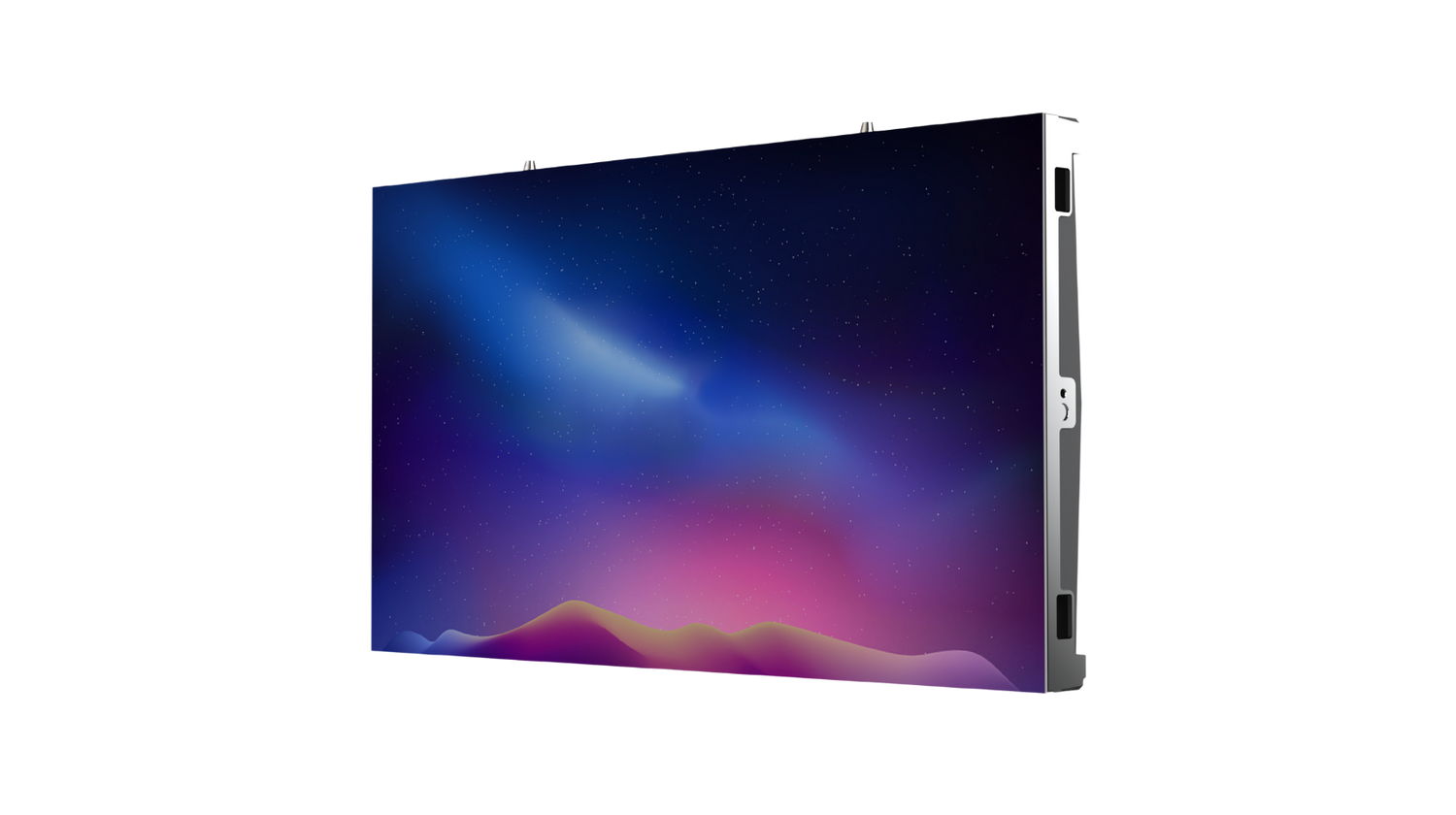

Planar MG-2COB Series 1.56mm Indoor COB LED Module

About the Planar MG-2COB Series

The MG-2COB Series line of fine pixel pitch LED video walls displays delivers unmatched visual performance with the benefits of Chip-on-Board (COB) technology with flip chip MicroLEDs. Available in 0.9, 1.2 and 1.5mm pixel pitches, these displays deliver high resolution, vibrant and reliable performance. The lightweight 16:9 cabinet design offers ease of set-up with front and rear installation and ease of maintenance with front service access.

Product Overview

The Planar Leyard MG-2COB Essential Series LED module features a 1.56mm pixel pitch built on Chip-on-Board (COB) LED technology. It is designed for fine-pitch indoor video walls and functions as a serviceable tile within the MG-2COB platform. COB packaging supports durability and a wide viewing angle. The module is available through Creation Networks for integrators specifying Planar and Leyard fine-pitch LED systems.

Product Description

This MG-2COB Essential module combines a 1.56mm pixel pitch with COB LED construction, in which the diodes are encapsulated under a protective resin layer. The pixel density suits high-resolution content viewed at close to moderate indoor distances, including corporate lobbies, control rooms, and meeting spaces. COB packaging improves resistance to impact, dust, and moisture while supporting wide viewing angles and consistent color uniformity across the surface. Each module tiles with adjacent modules to form a continuous display scaled to the installation. The MG-2COB platform supports serviceable maintenance within compatible structures, and brightness and color uniformity are managed through system-level calibration. Because per-SKU brightness, power, and structural details vary by configuration, integrators should contact Creation Networks to confirm specifications for a given project. This SKU is the LED module only and does not include a cabinet, mounting structure, receiving card, or controller. Additional Leyard and Planar LED components are listed in our Planar collection. Correct pairing of modules, power, and signal distribution is required for a complete MG-2COB installation.

Key Features

• 1.56mm pixel pitch — Fine pixel density supports high-resolution content at close to moderate distances.
• COB LED technology — Chip-on-Board packaging protects the LED surface against impact, dust, and moisture.
• MG-2COB Essential platform — Serviceable, value-oriented module within the Leyard COB family.
• Wide viewing angle — COB construction supports broad viewing with consistent color uniformity.
• Modular tiling — Combines with adjacent modules to build a video wall of the required size.
• Indoor fine-pitch application — Suited to corporate, control room, and meeting space displays.

Technical Specifications
