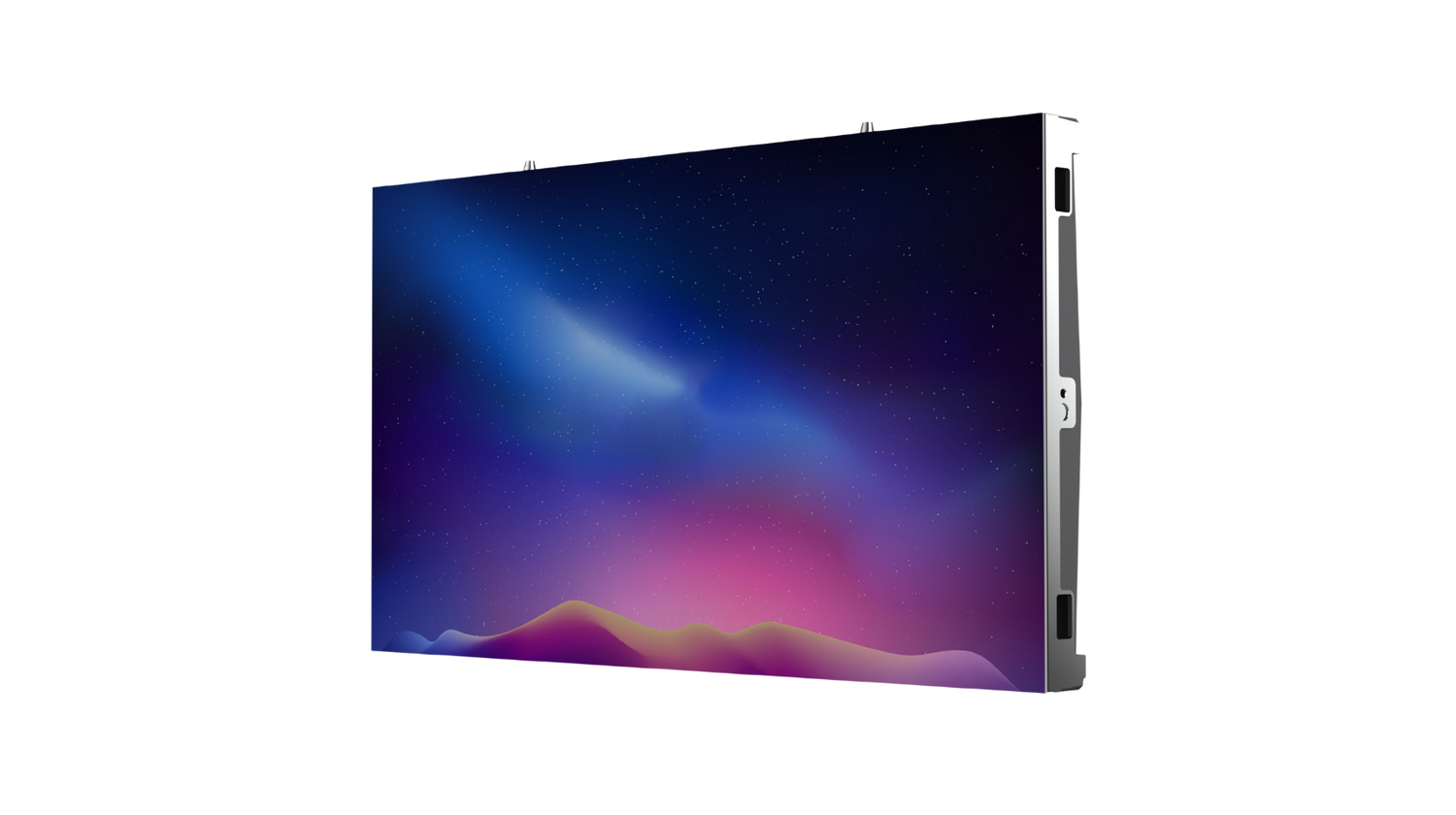

Planar MG-2COB Series 1.25mm Indoor COB LED Module

About the Planar MG-2COB Series

The MG-2COB Series line of fine pixel pitch LED video walls displays delivers unmatched visual performance with the benefits of Chip-on-Board (COB) technology with flip chip MicroLEDs. Available in 0.9, 1.2 and 1.5mm pixel pitches, these displays deliver high resolution, vibrant and reliable performance. The lightweight 16:9 cabinet design offers ease of set-up with front and rear installation and ease of maintenance with front service access.

Product Overview

This Planar Leyard MG-2COB Essential series LED module features a 1.25mm pixel pitch and chip-on-board (COB) LED construction. It is a fine-pitch module used as a building block within MG-2COB Essential series LED video walls. The COB design integrates the LEDs into a protective surface layer. This module is intended for close-viewing indoor display applications.

Product Description

The Planar Leyard MG-2COB Essential series LED module is a 1.25mm fine-pitch tile built with chip-on-board LED technology. COB construction encapsulates the LED emitters within a unified protective surface, an approach used in fine-pitch displays to improve durability at very small pixel pitches. The 1.25mm pitch places this module in the high-density category suited to close viewing distances found in control rooms, broadcast studios, corporate lobbies, and premium meeting spaces. As part of the MG-2COB Essential series, the module tiles together with matching components to form a larger video wall surface at the target resolution and dimensions. Module-level construction allows integrators to scale the display footprint and service the wall at the tile level. Because this module is one element of a complete MG-2COB Essential system, the surrounding cabinets, power, and processing must be specified to match the deployment. The fine 1.25mm pitch supports detailed imagery where viewers are positioned near the screen. For full MG-2COB Essential series system planning, brightness, and module dimension details, contact Creation Networks to confirm. Browse the full Planar collection for related LED modules and video wall components.

Key Features

• 1.25mm Fine Pixel Pitch — High-density pitch suited to close-viewing indoor applications.
• Chip-on-Board (COB) LEDs — COB construction encapsulates emitters in a protective surface for durability at fine pitch.
• MG-2COB Essential Series — Part of the Leyard MG-2COB Essential modular LED platform.
• Modular Building Block — Tiles together with matching components to form larger video wall surfaces.
• Indoor Fine-Pitch Display — Designed for detailed imagery in close-viewing interior environments.

Technical Specifications
