Planar Leyard MG-2COB Essential – 1.25mm COB LED Cabinet
Product Overview

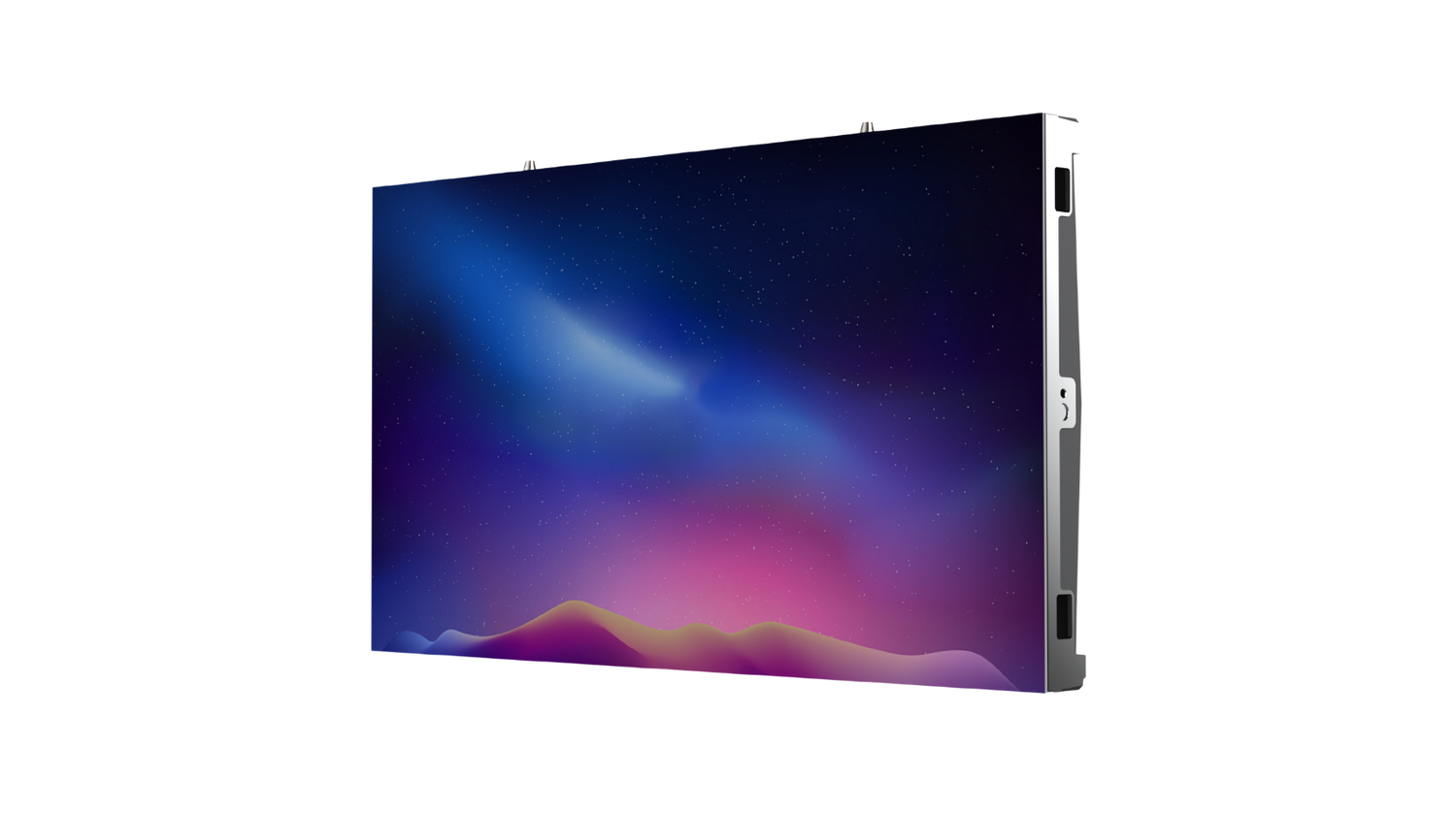

The Planar Leyard MG-2COB Essential Series cabinet is a fine pixel pitch indoor LED video wall cabinet built with Chip-on-Board (COB) flip-chip MicroLED technology. This cabinet is configured at a 1.25mm pixel pitch with a 600 x 337.5mm cabinet and 480 x 270 module resolution. It is designed for high-resolution indoor commercial AV installations that benefit from durable, high-contrast imagery. The MG-2COB Series targets applications where surface durability and image quality are priorities.
Product Description
The Planar Leyard MG-2COB Series is a line of fine pixel pitch LED video walls that pairs Chip-on-Board (COB) construction with flip-chip MicroLEDs to deliver high-resolution, high-contrast imagery. This cabinet (SKU 998-4386-00) is configured at a 1.25mm pixel pitch with a 600 x 337.5mm cabinet footprint and a 480 x 270 module resolution. The COB LED surface is IP65 rated for durability and resistance to physical contact, dust, and moisture, which helps protect the display in busy commercial environments. MG-2COB modules attach directly to the cabinet frame without brackets for a streamlined build, and the cabinet supports a 16:9 aspect ratio design with front and rear installation plus front service access for maintenance flexibility. The series adopts LeadDark technology, which supports a high contrast ratio for deep blacks and strong on-screen detail. The lightweight cabinet design eases setup and ongoing maintenance for integrators. As an indoor fine pixel pitch solution, the MG-2COB Series suits corporate, retail, and broadcast environments that require dependable image quality at close viewing distances. Cabinet count, controller selection, and final wall dimensions depend on the overall design. Explore the full Planar lineup in our Planar collection. Contact Creation Networks to confirm configuration and controller compatibility for your project.
Key Features
- COB flip-chip MicroLED — Chip-on-Board construction with flip-chip MicroLEDs delivers high-resolution, high-contrast imagery.
- 1.25mm pixel pitch — This cabinet is configured at a 1.25mm fine pixel pitch for close-viewing indoor applications.
- IP65-rated LED surface — The COB surface is IP65 rated for resistance to dust, moisture, and physical contact in commercial spaces.
- Bracket-free module attachment — Modules attach directly to the cabinet frame without brackets for a streamlined build.
- LeadDark contrast technology — LeadDark technology supports a high contrast ratio for deep blacks and detailed imagery.
- Front and rear installation — The cabinet supports both front and rear installation with front service access.
- Lightweight 16:9 cabinet — The lightweight design simplifies setup and maintenance for integrators.
Typical Applications
- Corporate lobbies — High-resolution COB imagery supports impactful reception and lobby walls.
- Retail environments — Durable IP65 surface suits high-traffic retail and showroom displays.
- Broadcast and studio — High contrast and fine pitch support on-camera applications.
- Conference and briefing rooms — Close-viewing resolution supports detailed presentation content.
Technical Specifications
| Series | Planar Leyard MG-2COB (Essential) |
| LED Technology | COB flip-chip MicroLED |
| Pixel Pitch | 1.25mm |
| Cabinet Size | 600 x 337.5mm |
| Cabinet Resolution | 480 x 270 |
| Environment | Indoor |
| LED Surface Rating | IP65 |
| Aspect Ratio | 16:9 cabinet design |
| SKU | 998-4386-00 |
Frequently Asked Questions
What is the MG-2COB Series? It is a Leyard fine pixel pitch indoor LED video wall line using Chip-on-Board flip-chip MicroLED technology.
What pixel pitch is SKU 998-4386-00? This cabinet is configured at a 1.25mm pixel pitch.
Is the LED surface durable? Yes. The COB surface is IP65 rated for resistance to dust, moisture, and physical contact.
Is this an indoor or outdoor cabinet? This is an indoor LED cabinet.
What is the cabinet and module resolution? The cabinet is 600 x 337.5mm with a 480 x 270 module resolution.
How do I confirm the full configuration? Cabinet count and controller selection depend on your wall design; contact Creation Networks to confirm.
