Leyard LA Series 10mm – Outdoor LED Cabinet

Product Overview

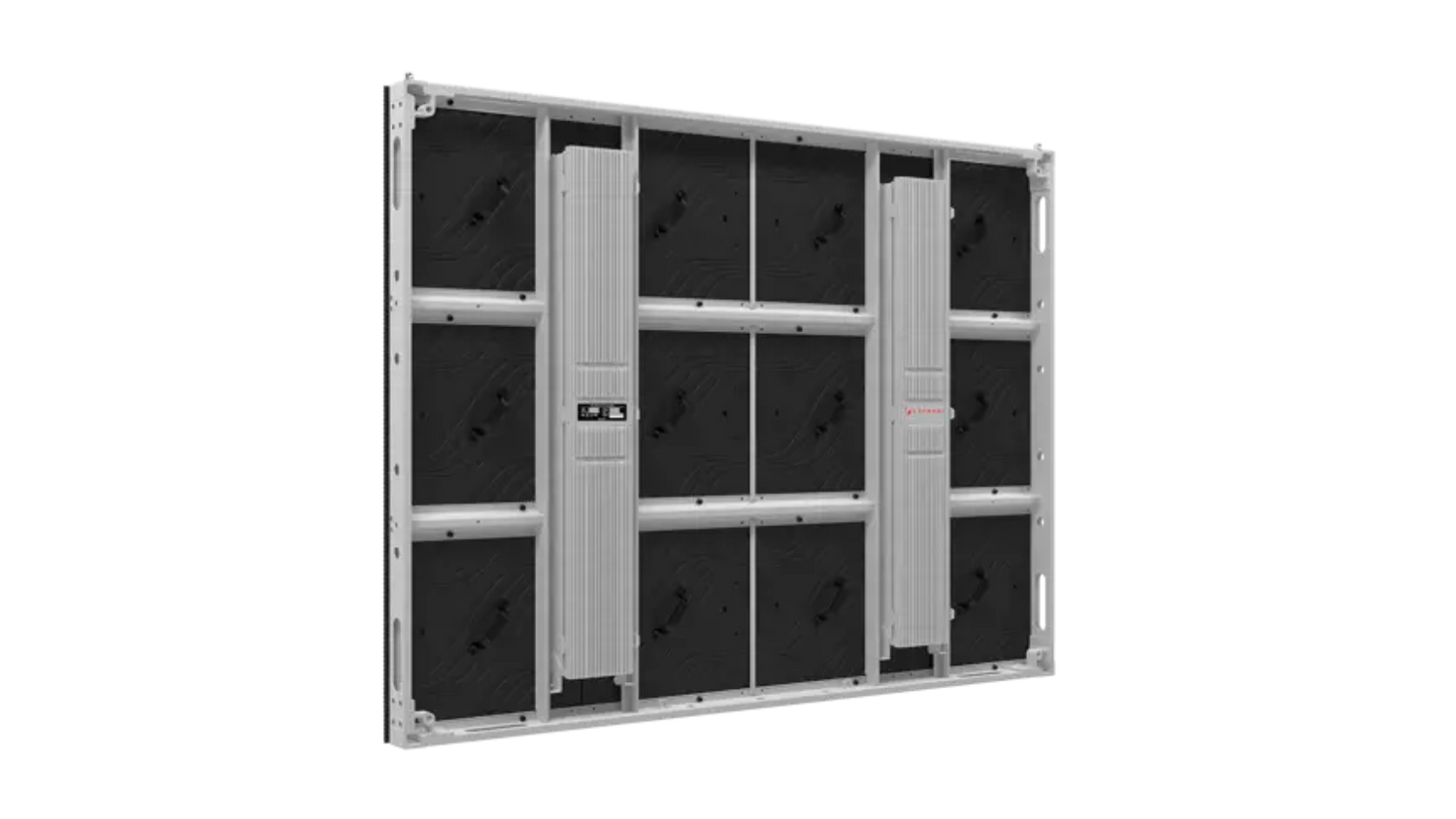

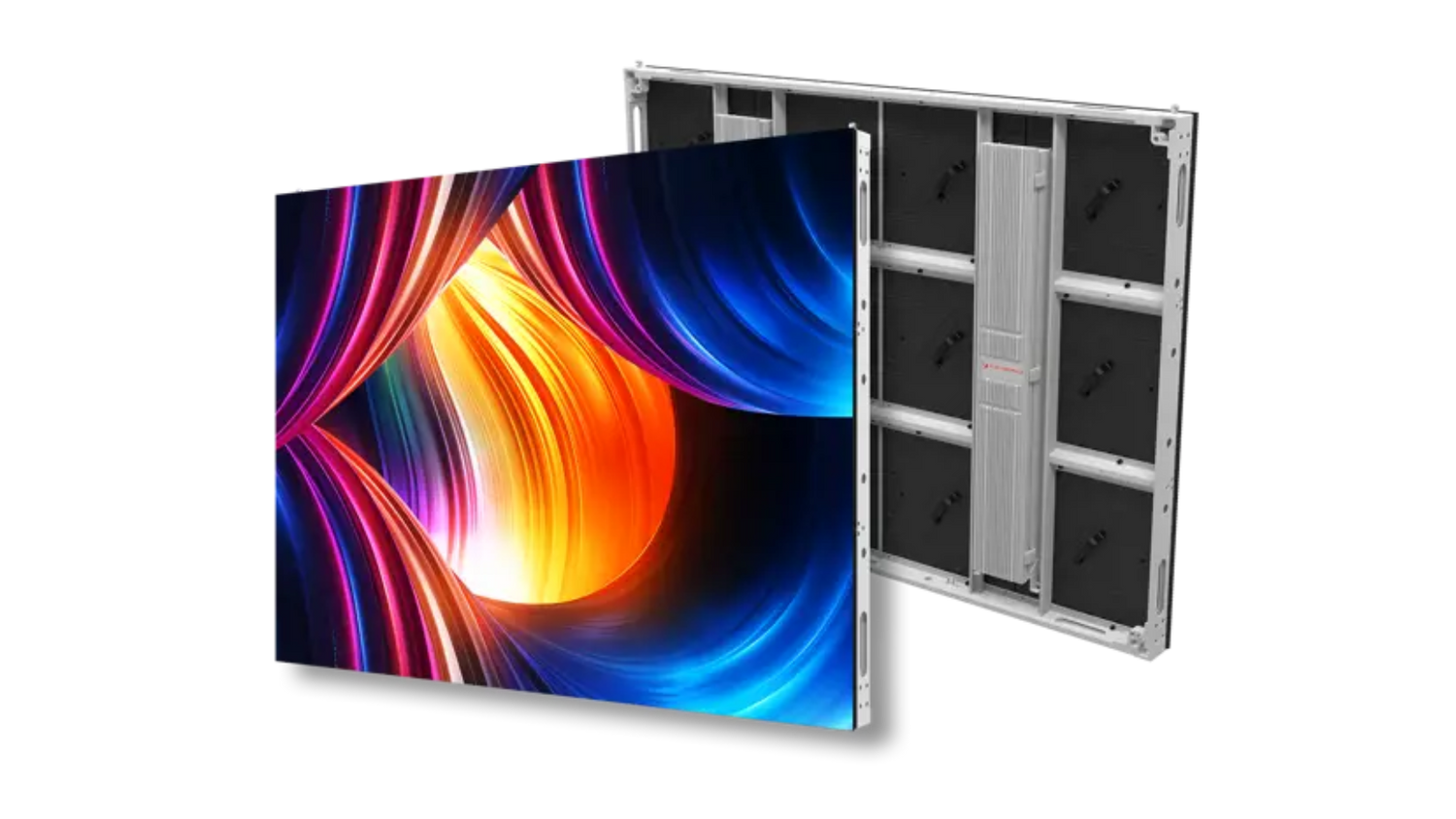

The Leyard LA Series 10.0mm is an outdoor fixed-installation LED video wall cabinet built for large-format, long-viewing-distance signage. This 960 x 960mm cabinet carries a 96 x 96 pixel resolution and uses a 3x3 LED module configuration. The LA Series features lightweight, high-strength aluminum construction with an IP65 ingress protection rating on both cabinets and modules. SKU 998-3881-00 ships as a single-cabinet outdoor configuration.

Product Description

The Leyard LA Series is an outdoor fixed-installation LED display platform engineered for demanding environments that require durability and weather resistance. This 10.0mm model resolves 96 x 96 pixels across a 960 x 960mm cabinet built from a 3x3 array of LED modules, a large-format building block intended for long viewing distances. The cabinet uses lightweight, thin, high-strength aluminum construction with a heat-resistant design that withstands harsh weather and temperature extremes. Both the display cabinets and the LED modules carry an IP65 ingress protection rating, providing resistance to water and dust for permanent outdoor deployment. The LA Series offers full front or rear service maintenance, giving integrators flexibility in how displays are accessed once installed against a wall or structure. With a 10.0mm pixel pitch, this model is suited to large outdoor displays viewed from a distance, such as building facades, billboards, DOOH advertising, and sports venues. The square 960 x 960mm cabinet keeps array math straightforward for large landscape installations. This LED video wall solution is backed by a 2-year standard warranty. Outdoor brightness and power configuration are matched to the site, so final specifications are confirmed at design time. Review related Planar and Leyard options on the Creation Networks Planar collection. Creation Networks supplies this cabinet as a draft commercial configuration; contact our team to confirm array sizing, mounting, brightness, and processing for your installation.

Key Features

• 10.0mm pixel pitch — Matched to long outdoor viewing distances for large-format displays.
• IP65-rated cabinet and modules — Water and dust resistance for permanent outdoor deployment.
• Aluminum construction — Lightweight, thin, high-strength frame with heat-resistant design for harsh weather.
• 960 x 960mm cabinet — Large square format keeps array math straightforward for big installations.
• 3x3 module array — Nine LED modules per cabinet support straightforward field service.
• 96 x 96 resolution — Per-cabinet pixel count simplifies large-wall planning.
• Front or rear service — Full front or rear maintenance access for installation flexibility.
• 2-year standard warranty — Backed by Planar's standard outdoor warranty.

Typical Applications

• Government space
• Commercial meeting space
• Multi-purpose room
• Auditorium
• House of worship

Technical Specifications

Frequently Asked Questions

Is this cabinet rated for outdoor use?
Yes. Both the cabinet and modules carry an IP65 rating for outdoor, weather-exposed installation.

What pixel pitch is this LA Series cabinet?
It uses a 10.0mm pixel pitch suited to long outdoor viewing distances.

What is the cabinet construction?
Lightweight, high-strength aluminum with a heat-resistant design.

How is it serviced?
The LA Series supports full front or rear service maintenance.

What warranty applies?
This solution is covered by Planar's 2-year standard warranty.

What brightness does it provide?
Outdoor brightness is configured to the site. Contact Creation Networks to confirm for your installation.
