Planar LA Series 10mm – Outdoor LED Video Wall Cabinet

Product Overview

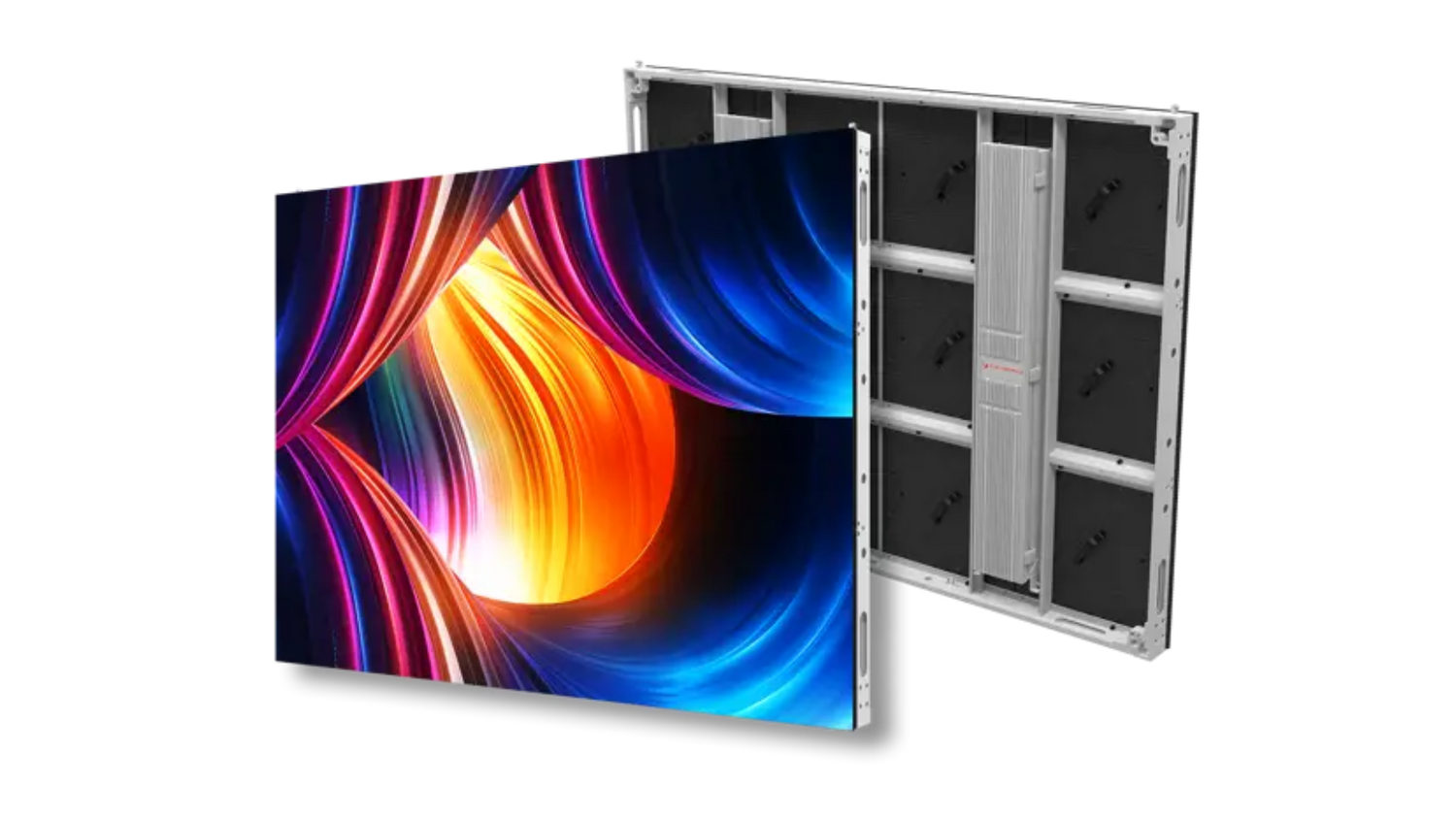

The Planar LA Series is a family of outdoor fixed-installation LED video wall displays engineered for permanent exterior signage and large-format viewing. This cabinet uses a 10.0mm pixel pitch in a 960x640mm format with 96x64 resolution and a 3x2 LED module configuration. Its lightweight, high-strength aluminum construction and heat-resistant design allow it to operate in harsh weather and extreme temperatures. With an IP65 ingress protection rating on both cabinet and modules, the LA Series is built for continuous outdoor duty.

Product Description

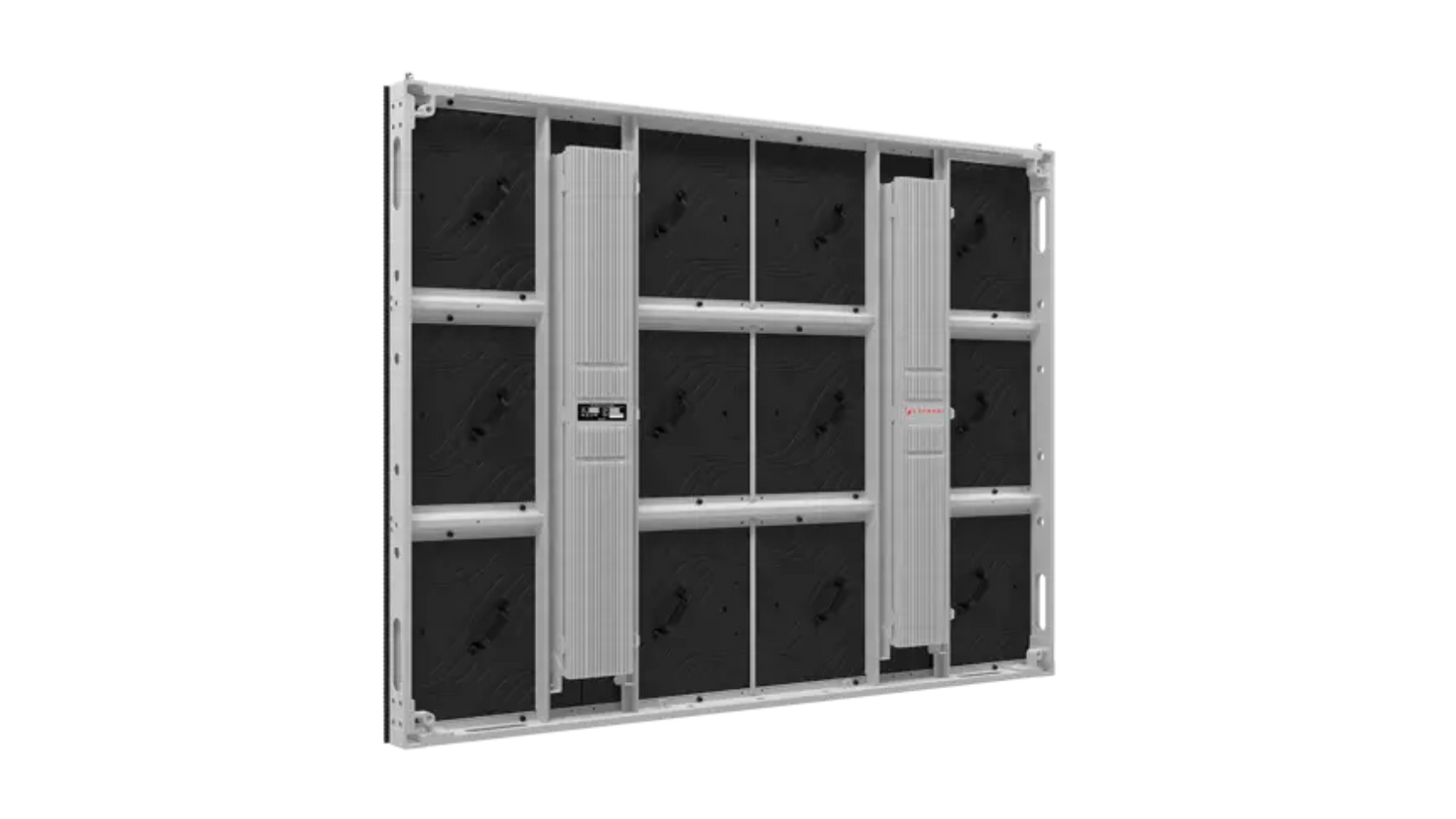

The Planar LA Series outdoor LED cabinet (SKU 998-3883-00) delivers a 10.0mm pixel pitch suited to medium and longer viewing distances typical of building facades, billboards, and exterior venue signage. Each cabinet measures 960x640mm with a native 96x64 pixel resolution and a 3x2 LED module layout, allowing integrators to tile multiple cabinets into displays of varied width and height. The aluminum cabinet structure keeps weight low while maintaining the rigidity needed for fixed outdoor mounting. A heat-resistant design helps the display tolerate direct sun and wide temperature swings. The IP65 rating protects internal electronics against dust ingress and water jets, a requirement for unsheltered outdoor placement. The LA Series supports both front and rear service access, which simplifies maintenance when one mounting orientation is constrained by the installation site. High brightness across the LA family keeps content legible in direct sunlight. For brightness, power draw, weight per cabinet, and refresh rate specific to this model, contact Creation Networks to confirm. Browse the full Planar collection for related cabinets, controllers, and mounting hardware. This product is configured as an outdoor fixed-installation cabinet and is well matched to digital out-of-home advertising and sports venue applications.

Key Features

• 10.0mm pixel pitch — Optimized for medium-to-long outdoor viewing distances such as facades and roadside signage.
• 960x640mm cabinet format — Standardized cabinet dimensions simplify tiling and array planning for fixed installations.
• 96x64 native resolution — Each cabinet contributes a defined pixel block that scales predictably across multi-cabinet walls.
• 3x2 LED module configuration — Modular construction enables targeted module-level service rather than full-cabinet replacement.
• IP65 ingress protection — Cabinet and modules are sealed against dust and water jets for unsheltered outdoor use.
• High-strength aluminum construction — Lightweight yet rigid frame reduces structural load while supporting fixed outdoor mounting.
• Heat-resistant design — Built to operate reliably under direct sunlight and extreme ambient temperatures.
• Front or rear service access — Maintenance can be performed from whichever side the installation site allows.

Typical Applications

• Commercial meeting space exterior signage and wayfinding
• Government space outdoor information displays
• Auditorium and venue exterior marquees
• Broadcast studio exterior and outdoor live event backdrops

Technical Specifications

Frequently Asked Questions

Is the Planar LA Series rated for permanent outdoor installation?
Yes. The LA Series is an outdoor fixed-installation product with an IP65 rating on both the cabinet and modules, protecting against dust and water jets in unsheltered locations.

What viewing distance suits the 10.0mm pixel pitch?
A 10.0mm pitch is intended for medium-to-long viewing distances such as building facades, billboards, and roadside signage where viewers are typically several meters or more from the display.

How many pixels does each cabinet provide?
Each 960x640mm cabinet has a native resolution of 96x64 pixels and a 3x2 LED module configuration, which tile together to form the total wall resolution.

Can the display be serviced after mounting?
Yes. The LA Series supports both front and rear service access, so technicians can maintain modules from whichever side the installation allows.

What brightness does this model deliver?
The LA family is engineered for high outdoor brightness for sunlight legibility. For the certified brightness figure on this specific SKU, contact Creation Networks to confirm.

Is this cabinet compatible with other LA Series cabinets?
Cabinets within the same LA Series pixel-pitch configuration are designed to tile together. Contact Creation Networks to confirm compatibility for your planned array.
