Planar Leyard LA 10.0mm – Outdoor LED Cabinet
Product Overview

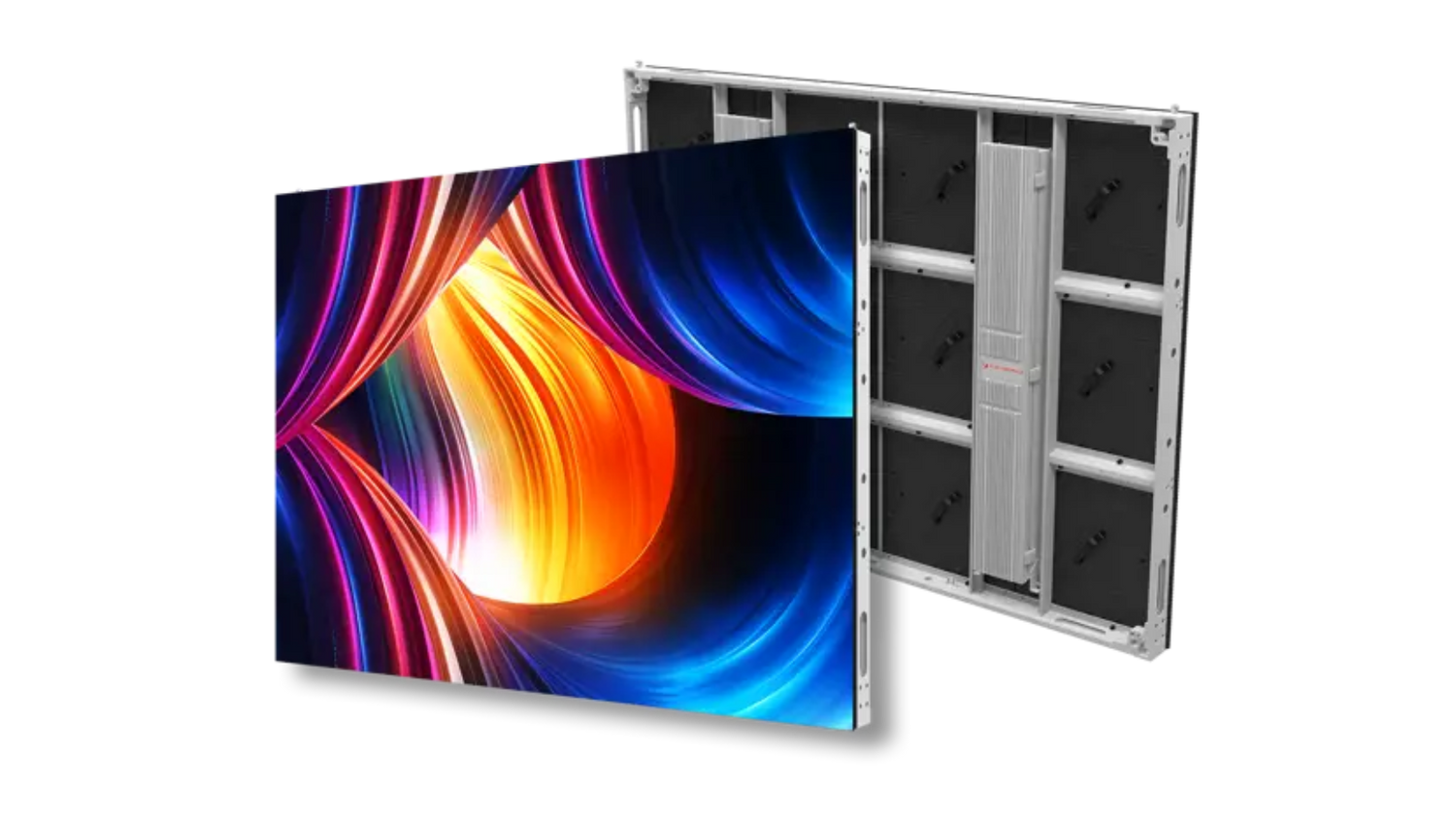

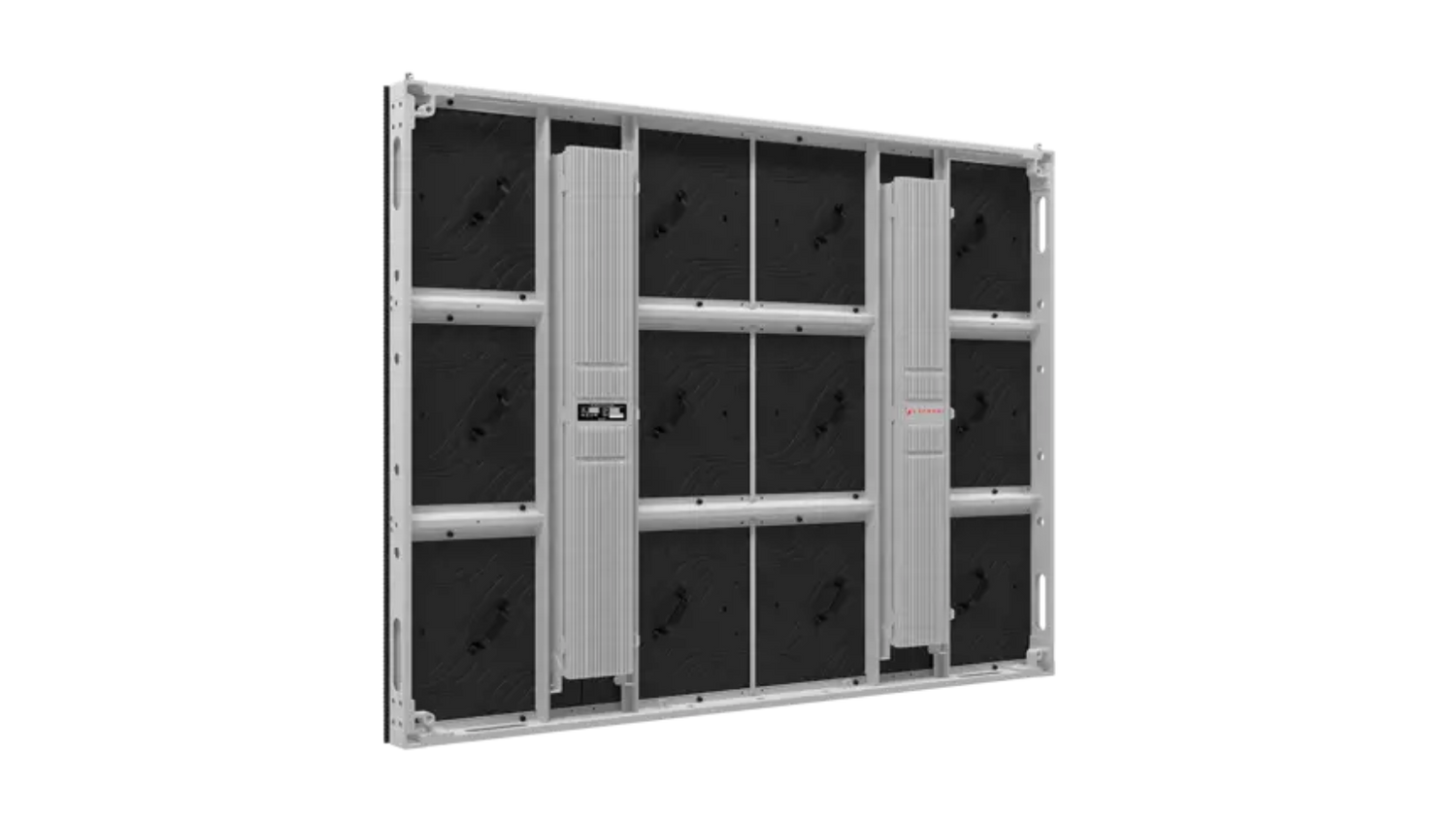

The Planar Leyard LA Series is an outdoor fixed-installation LED video wall built for harsh weather and extreme temperatures. This cabinet uses a 10.0mm pixel pitch on a 640x640mm panel with 64x64 resolution in a 2x2 LED module configuration. Lightweight aluminum construction with an IP65 rating suits exterior advertising and venue displays. SKU 998-3884-00 ships as a single outdoor cabinet.
Product Description
The Leyard LA Series outdoor cabinet (998-3884-00) combines a 10.0mm pixel pitch with a 640x640mm panel that provides 64x64 resolution in a 2x2 LED module configuration. The LA Series uses lightweight, thin, high-strength aluminum construction with a heat-resistant design that withstands harsh weather and extreme temperatures. Both the cabinets and modules are waterproof with an IP65 ingress protection rating, and the platform supports full front or rear service for maintenance flexibility in fixed outdoor structures. The 10.0mm pitch targets long viewing distances typical of building facades, billboards, and large sports venues, where the wider pitch keeps cost per square meter efficient at scale. This SKU is a single cabinet; combine cabinets to size the finished wall. The LA Series is intended for permanent outdoor installation rather than portable rental use. Confirm exact brightness, weight, and service orientation for your project with our team. Build a complete package from our Planar collection.
Key Features
- 10.0mm pixel pitch — Outdoor configuration optimized for long viewing distances and large-format walls.
- 640x640mm cabinet — 64x64 resolution in a 2x2 LED module configuration for modular sizing.
- IP65 rated — Waterproof cabinets and modules for weather-resistant outdoor deployment.
- Aluminum construction — Lightweight, high-strength, heat-resistant frame for harsh environments.
- Front or rear service — Full front or rear maintenance access for installation flexibility.
- Fixed-install platform — Engineered for permanent outdoor structures such as facades and venues.
Typical Applications
- House of worship
- Government space
- Commercial meeting space
- Auditorium
- Broadcast studio
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Planar |
| Series | Leyard LA Series (Outdoor) |
| SKU | 998-3884-00 |
| Product Type | Outdoor LED Video Wall Cabinet |
| Pixel Pitch | 10.0mm |
| Cabinet Size | 640x640mm |
| Cabinet Resolution | 64x64 pixels |
| Module Configuration | 2x2 LED modules |
| Construction | Lightweight aluminum, heat-resistant |
| Weather Rating | IP65 (cabinet and modules) |
| Serviceability | Full front or rear service |
| Brightness | Per outdoor configuration — Contact Creation Networks to confirm. |
| Warranty | Planar standard limited warranty — Contact Creation Networks to confirm. |
Frequently Asked Questions
Is the LA Series for indoor or outdoor use?
The Leyard LA Series is an outdoor fixed-installation platform built for harsh weather.
What is the weather rating?
Both cabinets and modules carry an IP65 ingress protection rating and are waterproof.
Is this a complete video wall?
No. SKU 998-3884-00 is a single cabinet; cabinets combine to build a wall sized to the installation.
Where is the 10.0mm pitch best used?
The 10.0mm pitch suits long viewing distances such as building facades, billboards, and sports venues.
Can it be serviced from the front?
Yes. The LA Series supports full front or rear service for maintenance flexibility.
