Leyard LA Series 10.0mm Outdoor LED Cabinet – 4x2

Product Overview

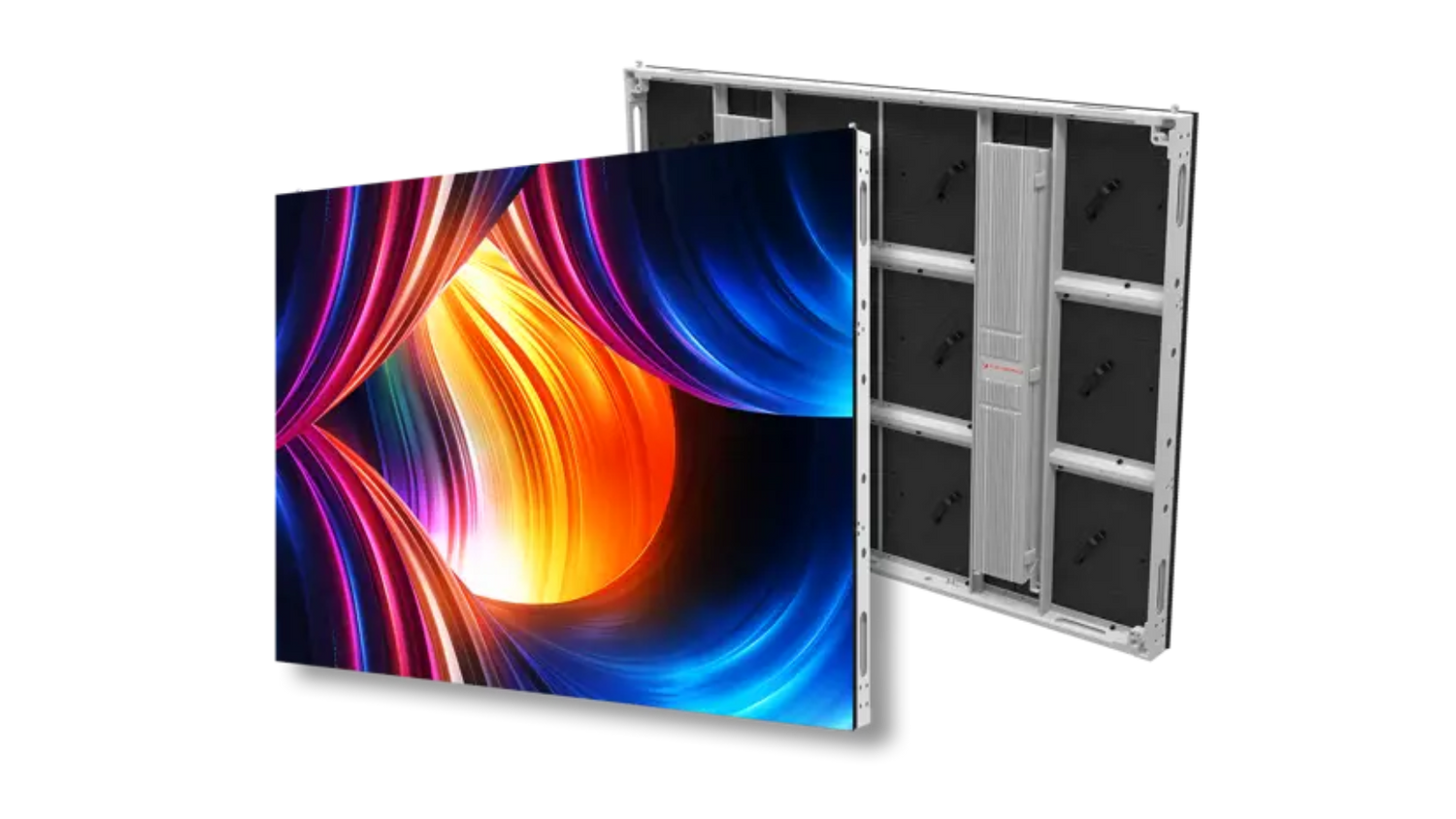

The Leyard LA Series 10.0mm outdoor LED cabinet is a fixed-installation display module engineered for permanent exterior digital signage. This cabinet measures 1280x640mm with a native resolution of 128x64 pixels in a 4x2 LED module configuration. Built on a lightweight, high-strength aluminum frame with an IP65 ingress protection rating, it is designed to withstand harsh weather and extreme temperatures. It serves integrators specifying large-format outdoor LED video walls for advertising, civic, and venue environments.

Product Description

The Leyard LA Series is Planar's outdoor fixed-installation LED platform, purpose-built for displays exposed to weather, direct sunlight, and continuous duty cycles. This cabinet uses a 10.0mm pixel pitch across a 1280x640mm panel, delivering a 128x64 pixel canvas per cabinet that tiles into larger outdoor video walls. The wider 10.0mm pitch is matched to long viewing distances, making it cost-effective for large billboards and venue displays seen from across a street, plaza, or stadium. The aluminum cabinet construction keeps installed weight low while maintaining the rigidity required to hold tight module alignment across a multi-cabinet array. Both the cabinet and the LED modules are waterproof with an IP65 rating, resisting dust ingress and water from any direction, suitable for unsheltered building facades, billboards, and stadium perimeters. The heat-resistant design withstands extreme temperatures and sustained outdoor operation. The LA Series supports fully front or rear service access, letting technicians maintain the wall from whichever side the site permits. Integrators sizing an outdoor wall can combine multiples of this 4x2 cabinet to reach the target pixel count and physical dimensions for a site. Browse the full Planar and Leyard LED lineup in our Planar collection. For brightness, scan configuration, and power draw specific to this SKU, contact Creation Networks to confirm.

Key Features

• Outdoor IP65 rating — Both the cabinet and LED modules are sealed against dust and water ingress for unsheltered exterior installations.

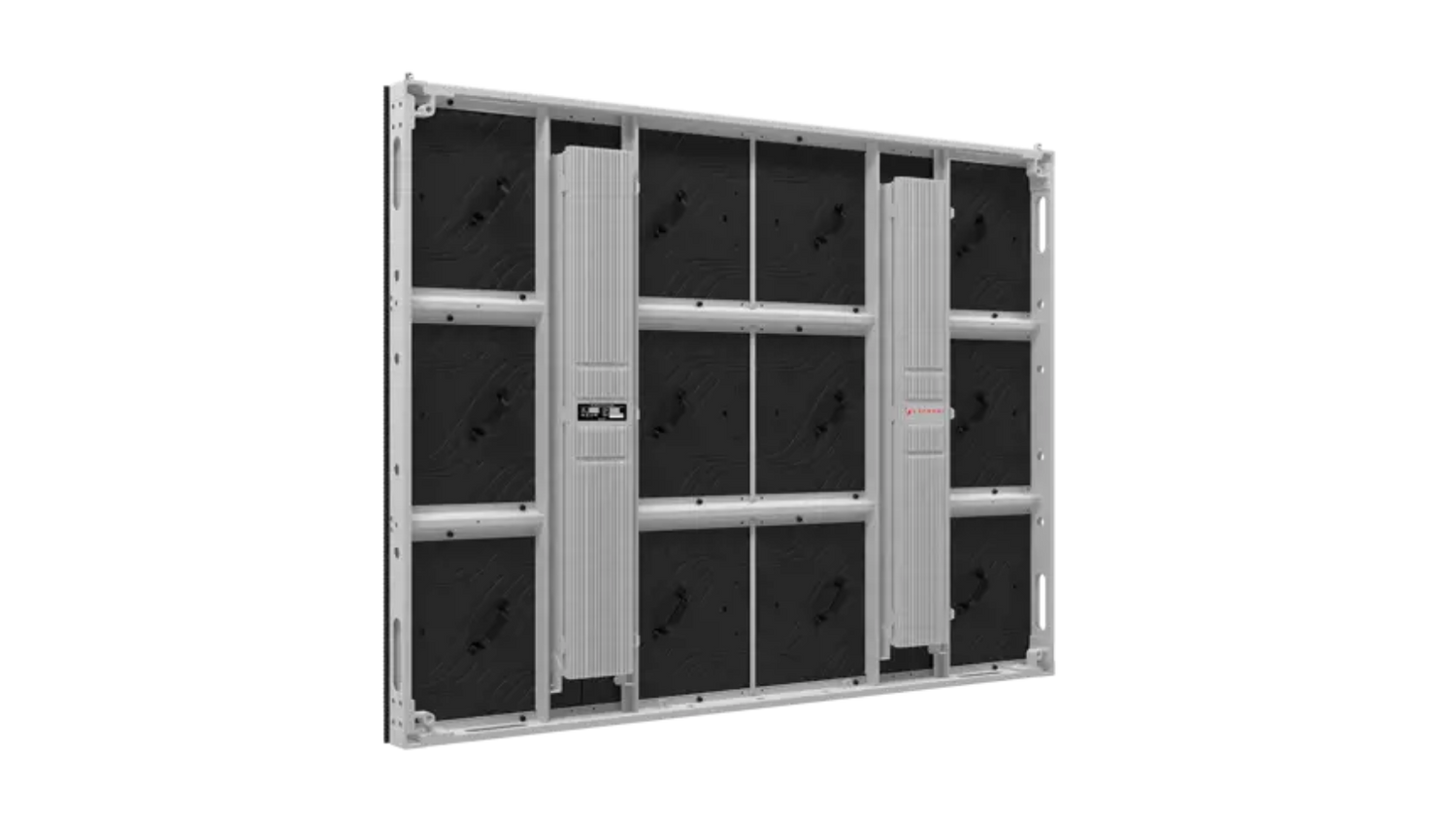

• Aluminum cabinet construction — The lightweight, high-strength aluminum frame reduces installed load while holding module alignment across tiled arrays.
• 10.0mm pixel pitch — Matched to long viewing distances for large billboards and venue displays.
• 1280x640mm cabinet — Each cabinet delivers a 128x64 pixel canvas in a 4x2 LED module layout for predictable tiling.
• Front and rear serviceability — Technicians can access modules from either side, accommodating sites with limited rear clearance.
• Heat-resistant weatherproof design — Built to endure extreme temperatures and sustained outdoor duty cycles.

Typical Applications

• Digital out-of-home (DOOH) advertising and large billboards
• Building facade and architectural displays
• Stadium and sports venue displays
• Outdoor wayfinding and civic information displays
• Transportation hubs and exterior commercial signage

Technical Specifications

Frequently Asked Questions

Is this cabinet rated for outdoor use? Yes. The Leyard LA Series is an outdoor fixed-installation platform with an IP65 rating on both the cabinet and the LED modules.

What is the resolution of a single cabinet? Each 1280x640mm cabinet provides a native resolution of 128x64 pixels in a 4x2 LED module configuration.

What viewing distance suits 10.0mm pitch? The wider 10.0mm pitch is matched to long viewing distances, such as large billboards and venue displays seen from across a plaza or stadium.

Can it be serviced from the front? Yes. The LA Series supports both front and rear service access, useful when rear clearance is limited.

What controller is required? Outdoor LED walls require a compatible LED video controller and signal distribution. Contact Creation Networks to confirm the right processing.
