Planar CDI Series 2.6mm Indoor LED Module

About the Planar CDI Series

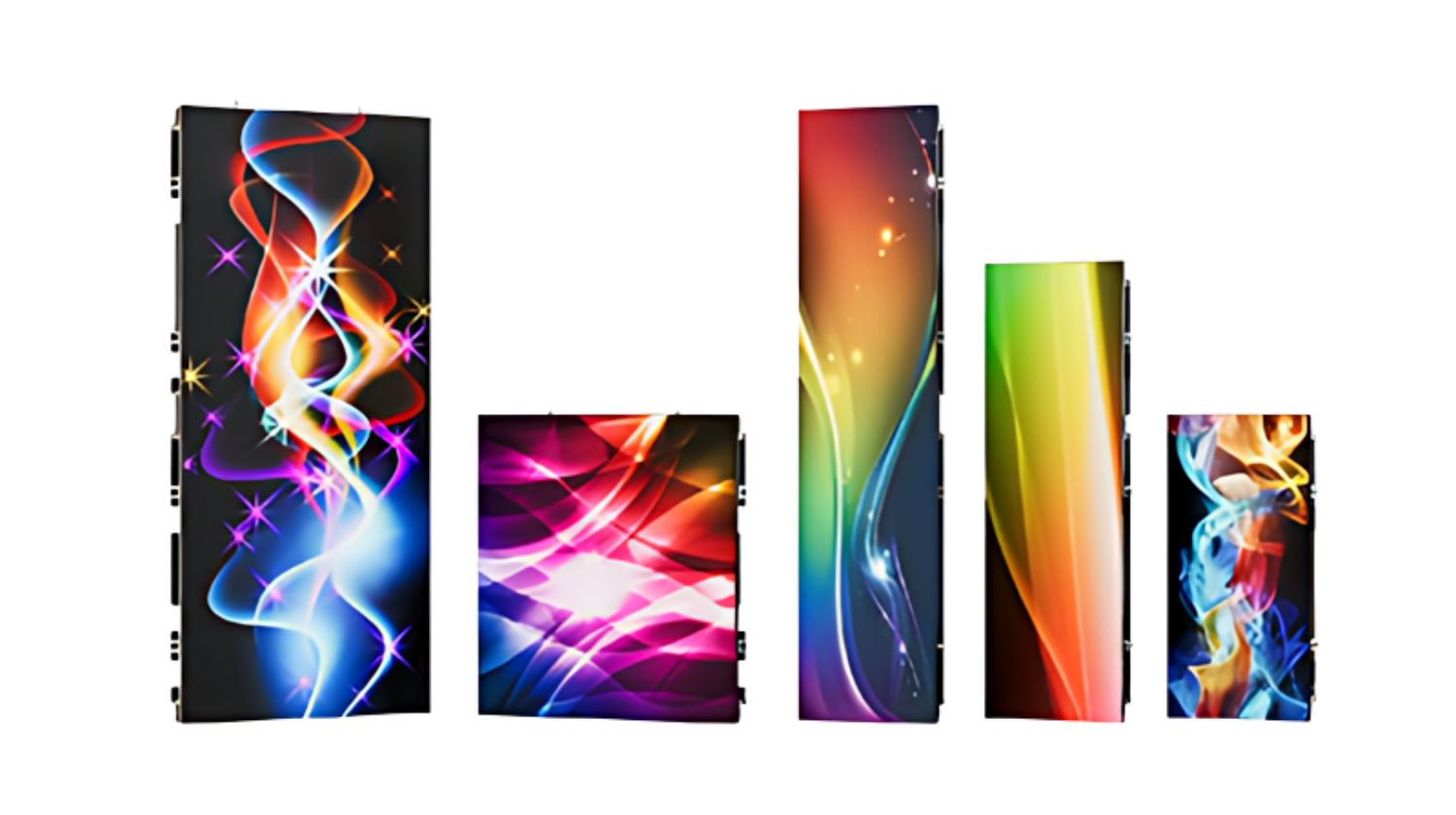

The CDI Series line of indoor LED displays are designed for ultimate creative flexibility, making it possible to create virtually any LED array shape or size. Built with a modular design and a range of cabinet sizes, the CDI Series enables seamless, creative installations with multiple pixel pitch options to suit different application needs. It supports concave and convex configurations for curved displays, right-angles for unique geometric designs and 90-degree cabinet rotation for versatile layouts. Energy-saving technology reduces power consumption when the screen is black, helping to conserve energy during idle times.

Product Overview

The Planar Leyard CDI Series Indoor LED Module is a 2.6mm pixel-pitch direct-view display tile measuring 250 x 250mm with 96 x 96 pixel resolution. The fine 2.6mm pitch makes it well suited to indoor video walls viewed at close to moderate distances. Its square 250 x 250mm module format supports straightforward tiling and alignment across an array. It is a service-replaceable component within the Leyard CDI indoor LED system.

Product Description

This module is a core building block of the Leyard CDI indoor LED platform, delivering a 2.6mm pitch surface in a compact 250 x 250mm format. With 96 x 96 pixels per module, integrators can calculate total wall resolution predictably as modules are tiled together. The 2.6mm pitch provides high pixel density appropriate for indoor environments where viewers may be relatively close to the display, such as conference rooms, lobbies, and control spaces. The square module geometry simplifies layout planning and keeps seams consistent across the array. As a service-replaceable tile, the module supports module-level maintenance to minimize downtime in fixed installations. It must be combined with matching CDI cabinets, modules, and system electronics to form a complete video wall. For cabinet pairing, mounting, and module quantity requirements, contact Creation Networks to confirm. View the complete Planar and Leyard direct-view LED range in the Planar collection.

Key Features

• 2.6mm pixel pitch — High pixel density suited to close and moderate indoor viewing distances.
• 250 x 250mm module — Compact square format for consistent tiling and alignment.
• 96 x 96 resolution — Defined per-module pixel count simplifies array resolution planning.
• Service-replaceable tile — Supports module-level maintenance to reduce downtime.
• Leyard CDI platform — Integrates with CDI cabinets and system electronics for a complete wall.
