Planar Komodo 0.9mm LED Video Wall Cabinet

Product Overview

The Planar Komodo 0.9mm cabinet is a fine-pitch indoor LED video wall building block from Planar's COB LED family. It delivers high brightness and wide color for professional indoor video walls assembled to the size and aspect ratio a room requires. With a 0.9mm pixel pitch, it suits close- to medium-viewing-distance applications where clean, detailed imagery matters. As a modular cabinet, it scales from single-screen installations up to large multi-cabinet arrays.

Product Description

This Planar Komodo 0.9mm cabinet is part of an ultra-fine pixel pitch LED video wall series that uses COB (chip-on-board) LED technology for durable, high-performance indoor visualization. The 0.9mm pitch places it between the finest 0.7mm models and the wider 1.2mm option in the Komodo lineup, balancing pixel density with cost per square foot for medium viewing distances. Across the series, Komodo displays target a DCI-P3 color gamut for professional-grade color reproduction and 1,000 nits of brightness to support vivid image reproduction in indoor environments with significant ambient light. The 27-inch cabinet design supports both 16:9 and 21:9 configurations, allowing integrators to assemble standard widescreen walls or ultra-wide canvases. Because cabinets are modular, the Komodo platform scales from native Full HD and 4K up to 8K and ultra-wide 5K resolutions as additional cabinets are tiled together. COB construction improves surface durability compared with traditional discrete-package LED, an advantage in higher-traffic environments. A fine-pitch LED wall of this class is typically engineered as a complete system with appropriate processing, mounting and power; Creation Networks can scope a configuration to a specific wall size and room. Browse the broader Planar lineup on our Planar collection. Per-cabinet resolution, dimensions and total array specifications depend on the final wall design — contact Creation Networks to confirm.

Key Features

• 0.9mm pixel pitch — Fine pitch supports detailed imagery at close to medium viewing distances.

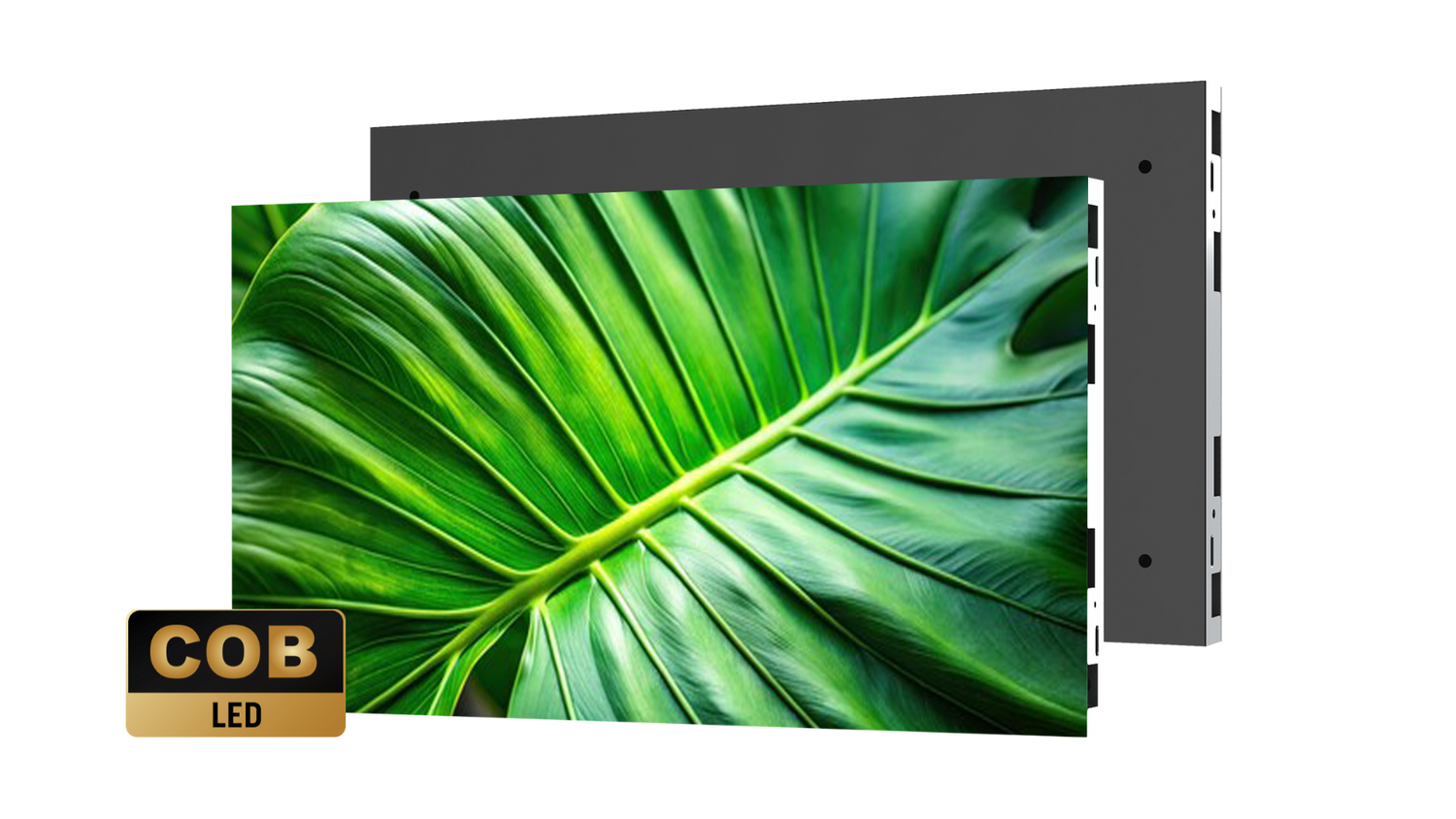

• COB LED technology — Chip-on-board construction improves surface durability for indoor commercial use.
• 1,000-nit brightness — High brightness supports vivid reproduction in indoor spaces with ambient light.
• DCI-P3 color gamut — Wide color supports professional-grade color reproduction.
• 16:9 and 21:9 configurations — The 27-inch cabinet design supports widescreen and ultra-wide canvases.
• Modular and scalable — Tile cabinets to reach Full HD, 4K, 5K ultra-wide and 8K resolutions.
• Indoor video wall design — Purpose-built for fixed indoor installations.

Typical Applications

• Boardroom
• Conference room

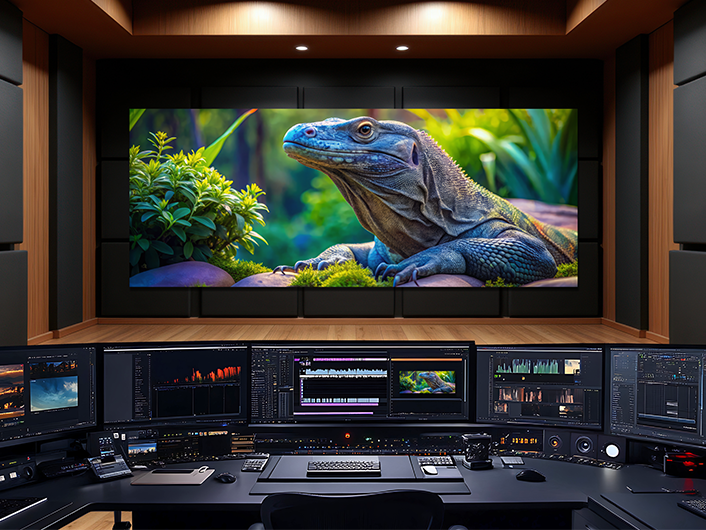

• Broadcast studio
• Auditorium
• Commercial meeting space
• Government space
• House of worship

Technical Specifications

Frequently Asked Questions

What pixel pitch is this cabinet?
It is a 0.9mm pixel pitch cabinet, positioned between the 0.7mm and 1.2mm options in the Komodo Series.

What LED technology does Komodo use?
The Komodo Series uses COB (chip-on-board) LED technology for durability and image performance.

How bright is the display?
The series is rated at 1,000 nits, supporting vivid reproduction in indoor environments with ambient light.

What aspect ratios are supported?
The 27-inch cabinet design supports 16:9 and 21:9 configurations, and cabinets tile to larger canvases.

Can I build a 4K or 8K wall with these cabinets?
Yes. The platform scales from Full HD and 4K up to 5K ultra-wide and 8K depending on the number of cabinets.

How do I determine how many cabinets I need?
Quantity depends on the target wall size and resolution. Contact Creation Networks to confirm a configuration.
