Planar Komodo Series 0.7mm COB MicroLED Module

About the Planar Komodo Series

The Planar Komodo Series is a premium line of fine pitch LED video walls built with Chip-on-Board (COB) MicroLED technology that delivers durability, energy efficiency, superior color uniformity and wide viewing angles. Optimized for industry-standard resolutions, it supports 16:9 and 21:9 configurations while a high-bandwidth, future-ready system architecture ensures uncompromising reliability, long-term compatibility and exceptional image quality for the most visually discerning indoor applications.

Product Overview

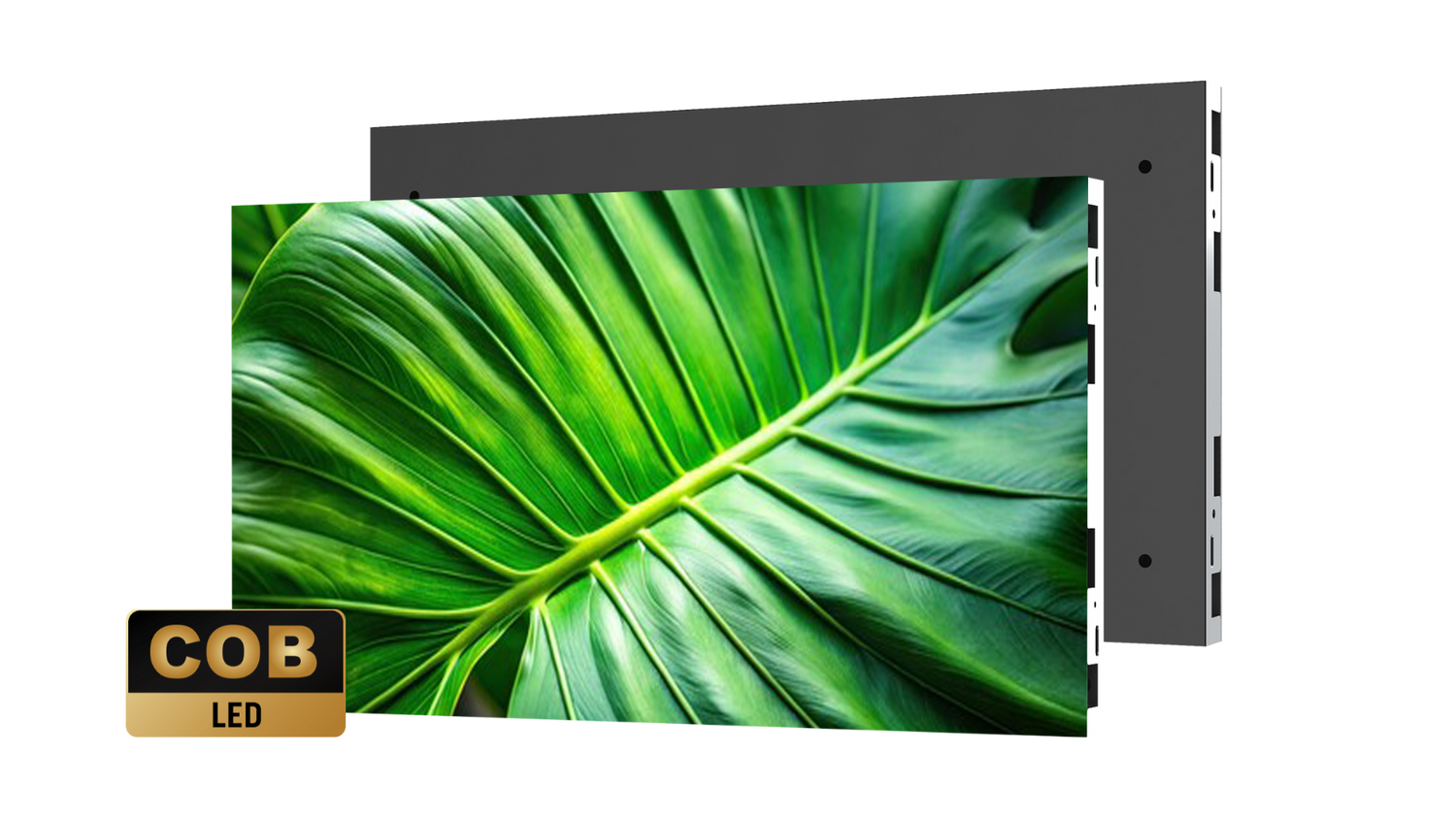

The Planar Komodo Series 0.7mm module is an ultra-fine pixel pitch Chip-on-Board (COB) MicroLED component engineered for premium indoor LED video walls. At a 0.7mm pixel pitch, this module supports close-viewing-distance applications where pixel structure must remain invisible to viewers. It delivers a DCI-P3 color gamut and 1,000 nits of brightness for accurate, high-impact image reproduction. This module (SKU 926-0897-00) is a building block within a larger Komodo Series LED display system.

Product Description

The Planar Komodo Series 0.7mm COB MicroLED module is part of Planar's flagship ultra-fine pitch LED platform, designed for environments that demand the highest visual fidelity at short viewing distances. COB construction encapsulates the LED chips within a unified surface, improving durability and resistance to impact and handling damage compared with traditional surface-mounted device designs. The COB approach also contributes to wide viewing angles and consistent color uniformity across the display surface. The Komodo Series supports scalable video wall builds ranging from native Full HD and 4K up to 8K and ultra-wide 5K resolutions, allowing integrators to specify the exact canvas a project requires. The 0.7mm pitch design is offered in a 22-inch format supporting 16:9 and 21:9 configurations. Komodo Series systems incorporate 100 Gbps ST2110 capability, an SMPTE standard for professional media transport over IP networks, which supports broadcast and production-grade signal workflows. Because this listing covers an individual module rather than a complete cabinet or wall, the quantity of modules, controllers, mounting structure, and power components required will depend on the target display size and aspect ratio. Integrators specifying the Planar Komodo Series can review the broader Planar catalog through Creation Networks at our Planar collection. For exact per-SKU configuration details not published at the module level, contact Creation Networks to confirm.

Key Features

• 0.7mm pixel pitch — Ultra-fine resolution supports very short viewing distances where visible pixel structure is unacceptable.
• COB MicroLED construction — Chip-on-Board encapsulation improves durability and handling resistance relative to surface-mounted designs.
• DCI-P3 color gamut — Wide color reproduction suited to professional-grade content and color-critical environments.
• 1,000 nits brightness — Supports dynamic image reproduction across typical indoor lighting conditions.
• Wide viewing angles and color uniformity — COB manufacturing supports consistent appearance across off-axis seating positions.
• Scalable resolution support — Enables video wall builds from Full HD and 4K up to 8K and ultra-wide 5K.
• ST2110 IP media transport — 100 Gbps capability aligned to the SMPTE ST2110 professional media-over-IP standard.

Typical Applications

• Boardroom
• Conference room
• Broadcast studio
• Government space
• Commercial meeting space
• Auditorium

Technical Specifications

Frequently Asked Questions

Is this a complete video wall or a single module? This SKU is an individual 0.7mm COB MicroLED module within the Komodo Series. A complete display requires multiple modules plus controllers, mounting, and power; contact Creation Networks to confirm a full configuration.

What viewing distances suit the 0.7mm pitch? The 0.7mm pitch is intended for very short viewing distances where pixel structure must remain imperceptible, such as lobby focal walls and control environments.

What is the benefit of COB construction? Chip-on-Board encapsulation protects the LEDs within a unified surface, improving impact resistance and durability during installation and operation.

What resolutions can the Komodo Series build? The series scales from native Full HD and 4K up to 8K and ultra-wide 5K, depending on module count and layout.

Does this support broadcast IP workflows? Komodo Series systems offer 100 Gbps ST2110 capability aligned to the SMPTE professional media-over-IP standard. Contact Creation Networks to confirm controller requirements.
