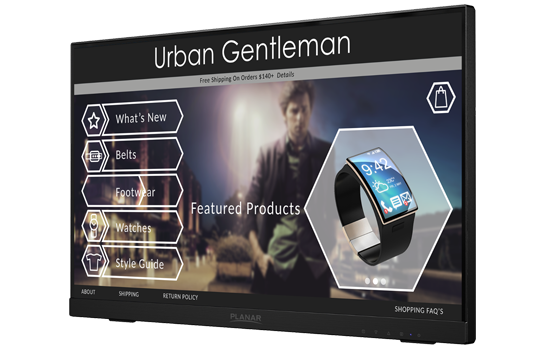

Planar Helium 22" – Zero-Bezel Optically Bonded Touch Monitor

Product Overview

The Planar Helium 22-inch zero-bezel is a Full HD projected capacitive touch monitor built for premium interactive applications. It features an optically bonded, anti-glare touch surface, a zero-bezel design, and an IPS edge-lit LED LCD panel with 10-point multi-touch. The display supports MPP 2.0 active pen input, includes a USB 3.0 hub, integrated speakers, and a dual-hinge stand, with HDMI, DisplayPort, and VGA inputs. Creation Networks supplies this Helium model for high-end kiosks, collaboration, and signature-capture deployments.

Product Description

This Planar Helium 22-inch model is a premium configuration in the Helium Series, distinguished by its optically bonded touch surface and zero-bezel design. Optical bonding eliminates the air gap between the glass and the panel, reducing internal reflections, improving contrast, and increasing durability against impact and debris ingress. The anti-glare finish further improves readability in bright commercial environments. The IPS LED-backlit panel delivers Full HD resolution with wide viewing angles, while projected capacitive technology registers up to 10 simultaneous touch points. Support for MPP 2.0 active pen input enables precise writing and annotation, making this model well suited to interactive whiteboarding, sign-on-glass, and detailed data entry. The integrated USB 3.0 hub provides high-speed peripheral connectivity, and the dual-hinge stand allows flexible positioning from upright to flat for varied workflows. Video connectivity includes HDMI, DisplayPort, and VGA, and the HID-compliant touch interface works with standard operating systems in most cases. Integrated speakers support interactive and multimedia content. The zero-bezel construction creates a clean, edge-to-edge appearance appropriate for customer-facing installations. For related interactive displays, browse our Planar collection. Exact panel revision and bundled accessories can vary; contact Creation Networks to confirm specifications for your configuration.

Key Features

• Optically Bonded Touch Surface — Removes the air gap to reduce reflections, improve contrast, and increase durability.
• Zero-Bezel Design — Edge-to-edge glass for a clean appearance in customer-facing installations.
• MPP 2.0 Active Pen Support — Enables precise writing and annotation for whiteboarding and data entry.
• 10-Point Projected Capacitive Touch — Registers up to 10 simultaneous touch points on an IPS Full HD panel.
• Anti-Glare Finish — Improves readability in bright commercial lighting conditions.
• USB 3.0 Hub — Provides high-speed connectivity for peripherals.

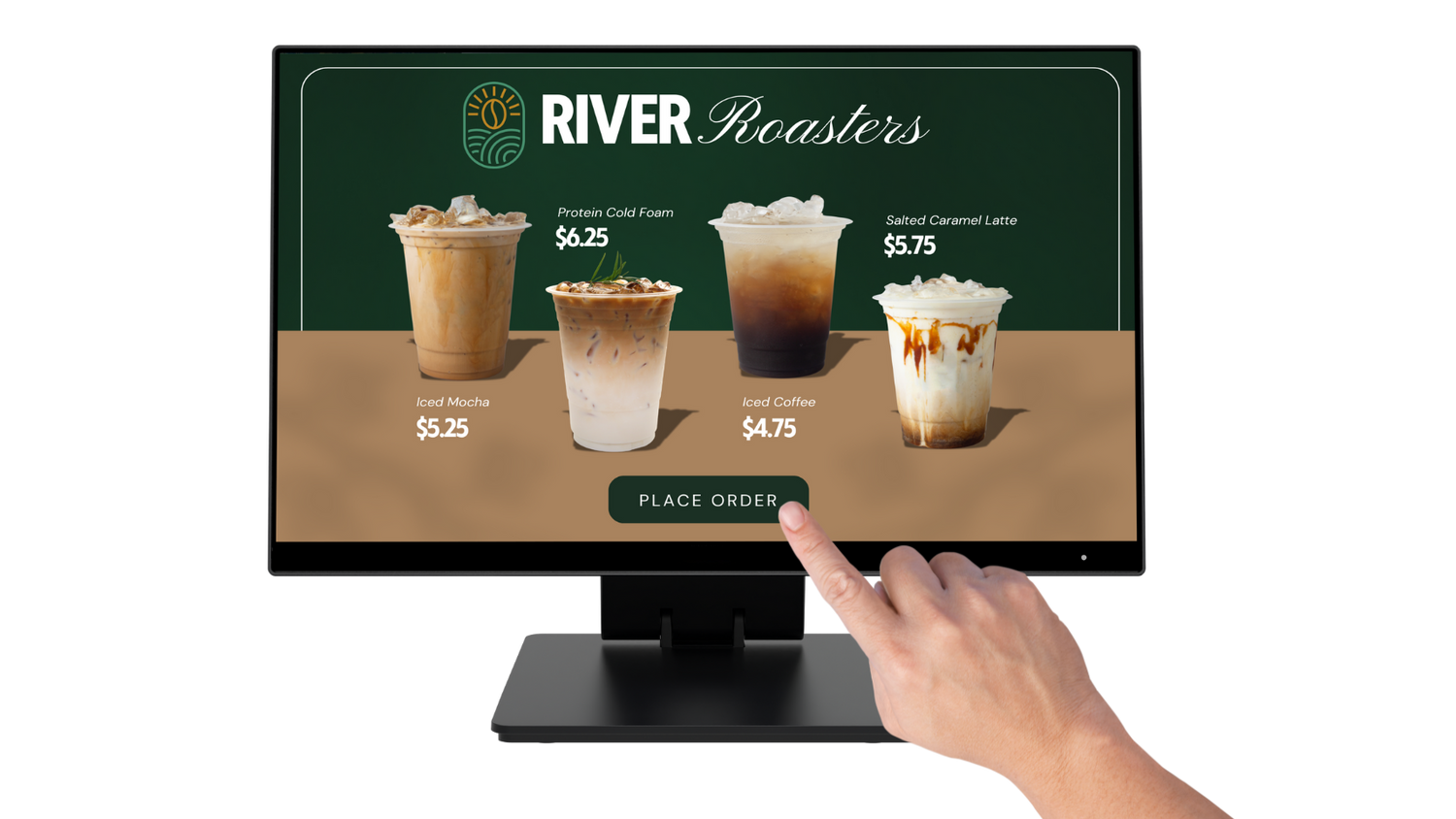

• Dual-Hinge Stand — Adjusts from upright to flat for flexible interaction workflows.
• Multiple Video Inputs — Includes HDMI, DisplayPort, and VGA for flexible source connection.

Typical Applications

• Interactive Whiteboarding and Annotation — MPP 2.0 pen support suits precise writing and markup workflows.
• Signature Capture and Sign-on-Glass — Flat-fold positioning supports data entry and signing applications.
• Premium Kiosks and POS — Zero-bezel, optically bonded surface suits high-end customer-facing deployments.
• Collaboration and Conferencing — Enables touch and pen-driven applications in meeting environments.

Technical Specifications

Frequently Asked Questions

What is optical bonding and why does it matter?
Optical bonding removes the air gap between the glass and panel, reducing reflections, improving contrast, and increasing durability against impact and debris.

Does this model support an active pen?
Yes. It is compatible with MPP 2.0 active pens for precise writing and annotation.

What video inputs are available?
It includes HDMI, DisplayPort, and VGA inputs, plus a USB 3.0 hub for peripherals.

How does the stand adjust?
The dual-hinge stand adjusts from upright to flat for varied touch and pen workflows.

Is the touch surface suited to bright environments?
Yes. The anti-glare, optically bonded surface improves readability under bright commercial lighting.

How do I confirm the exact configuration?
Contact Creation Networks to confirm panel revision, included accessories, and fit for your deployment.
