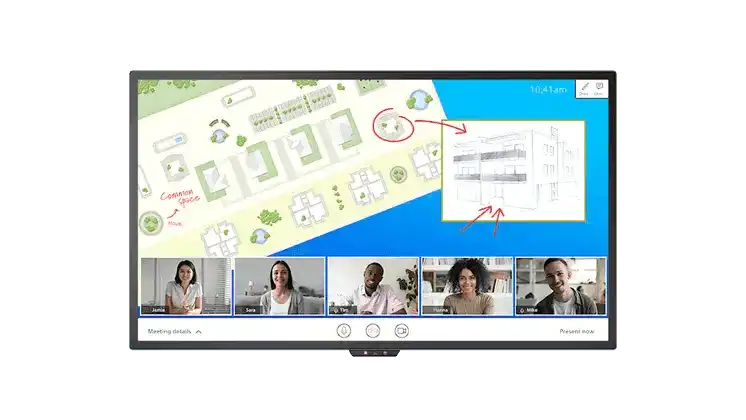

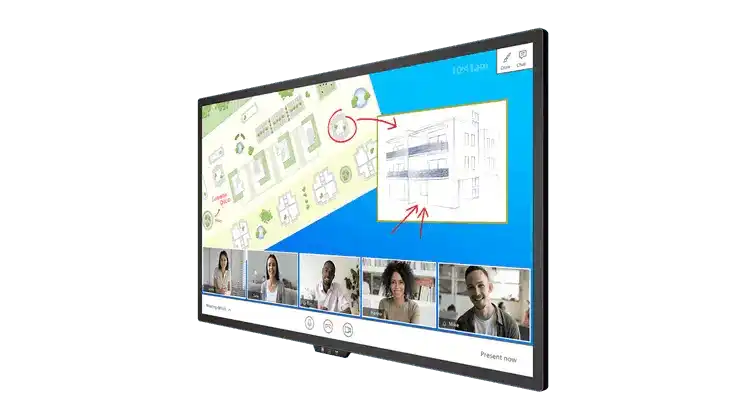

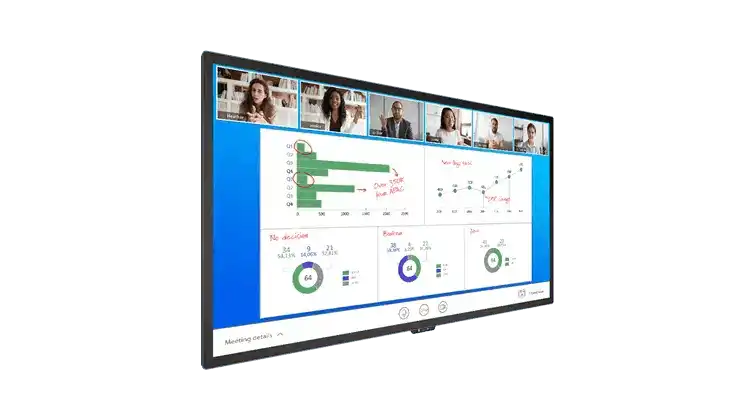

Planar HB Series HB75 4K Touch Screen Collaboration Display - 998-2158-00

Planar SKU: HB75
No reviews

Sale price$5,100.00


The Planar HB75 is a 75” huddle board display with 4K resolution and pinpoint-accurate, 20-point Projected Capacitive touch designed for in-room and
remote collaboration. It features an embedded Android® operating system with a built-in digital whiteboard and pre-loaded collaboration applications.
The display also has wireless connectivity and an OPS slot to support external devices such as a Window 10 PC. The display’s passive and active stylus pens help ensure efficiency. The Planar HB75 huddle board is compliant with United States Trade Agreements Act (TAA) regulations.

The Right Touch

Pinpoint-accurate Projected Capacitive, 20-point touch delivers effective interactive experiences, while Passive and Active Stylus pens help ensure efficiency and maintain cleanliness.

Teamwork Tools

The display powers on with a built-in Android® module menu. The display is a perfect option for meetings that require remote collaboration. Simply add the webcam, audio system and microphone of your choice and sync with colleagues across the globe like they’re right in the room. *Application use requires separate licenses, subscriptions, and/or hardware.

Take Note

The included digital whiteboard app enables image importing for easy annotation over maps, web pages screen shots, reports and more. Save and share notes and annotations for continued discussions later on.

Data Sheet

  • 75" size
  • 4K resolution (3840 x 2160)
  • Android® OS with Embedded Digital Whiteboard
  • 20-point Projected Capacitive Touch
Specification: Detail:
Product Name HB75
Planar Part Number 998-2158-00
Protective Glass 2mm with AG coating
Touch Technology In-Cell Projected Capacitive (PCAP) 20 point touch
Touch Interface USB-B
OS Compatibility Internal: Android; External; Windows 8, 10, 11 and Linux
Display Resolution Ultra HD (3840 x 2160)
Screen Size 75 in. (diagonal)
Aspect Ratio 16:9
Display Technology IPS LCD
Display Active Area 64.9" x 36.5" (1649.7mm x 927.9mm)
Viewing Angle (typ) 178°
Backlight Direct-Lit LED
Backlight life (1/2 brightness) 30,000 hrs (min)
Brightness 350 nits
Response Time (typ) 8 ms
Frame Rate 60Hz
Contrast Ratio (typ) 1000:1
Pixel Pitch 0.4296mm x 0.4296mm
Color Gamut 72% NTSC
Display Color >1 billion colors. Full 10 bit data path
External Connections DisplayPort 1.2 x 1, HDMI 2.0 x 3 (HDCP 2.2), HDMI out, VGA x 1, USB-B (for touch controller), microSD slot, USB 2.0 for external USB camera, OPS Slot
Modes 3840x2160 @ 24/25/30/50/60Hz; 1080p @ 24/25/30/50/60Hz; 1080i @ 50/60 Hz
Display Control LAN, WiFi (802.11 b/g/n, 2.4 GHz, 5 GHz), Bluetooth, RS232 In, IR, Keypad
Cabinet Dimensions (W x H x D) 67.4" x 40.0" x 3.6" (1713mm x 1015mm x 93mm)
Orientation Landscape
Bezel Width 0.1" (3mm)
Inactive Area 1.1” (27.5mm)
Weight 106 lbs (48 kg)
Audio Input PC Line In
Audio Output PC Line Out, S/PDIF
Speakers 15W x 2 built-in
Enclosure All metal enclosure
Mounting VESA: 600mm x 400mm
Fanless Yes
Line Voltage 100-240V; 50/60Hz
Power Consumption (typ) 295W (standby: <0.5W)
Operating Temperature 0° to +40°C (32° to 104°F) up to 3000m
Humidity 20 - 85% RH (non-condensing)
Operating System Proprietary OS based on Android 8.0. Google Play and third-party apps are not supported by Planar.
Video Processing CPU: ARM A73 (x2) + ARM A53 (x2) | Frequency: 1.5 GHz | GPU: Mali-G51 | RAM: 3GB DDR4 2400MHz | Internal Storage: 32GB (22GB available)
Options / Features Logo-free bezel, lockable rear keypad
Approvals FCC Class A, CE, NRTL - United States and Canada
TAA Compliance Yes
Warranty 3 years
Recommended Usage Up to 18x7
In the Box HB75 display, US power cord, HDMI cable, USB A to B cable, remote control, WiFi antenna x2, Bluetooth antenna x1, active stylus - x2, passive stylus - x2, cable clips, QuickStart Guide
UPC 8 10689 00805 7
